Syble Atek AK-M4 barcode scanner

Compact embedded 2D/1D scanner for kiosks and POS. Fast reads, USB/RS232/TTL, rugged build. Easy integration, 2-year warranty.

Overview

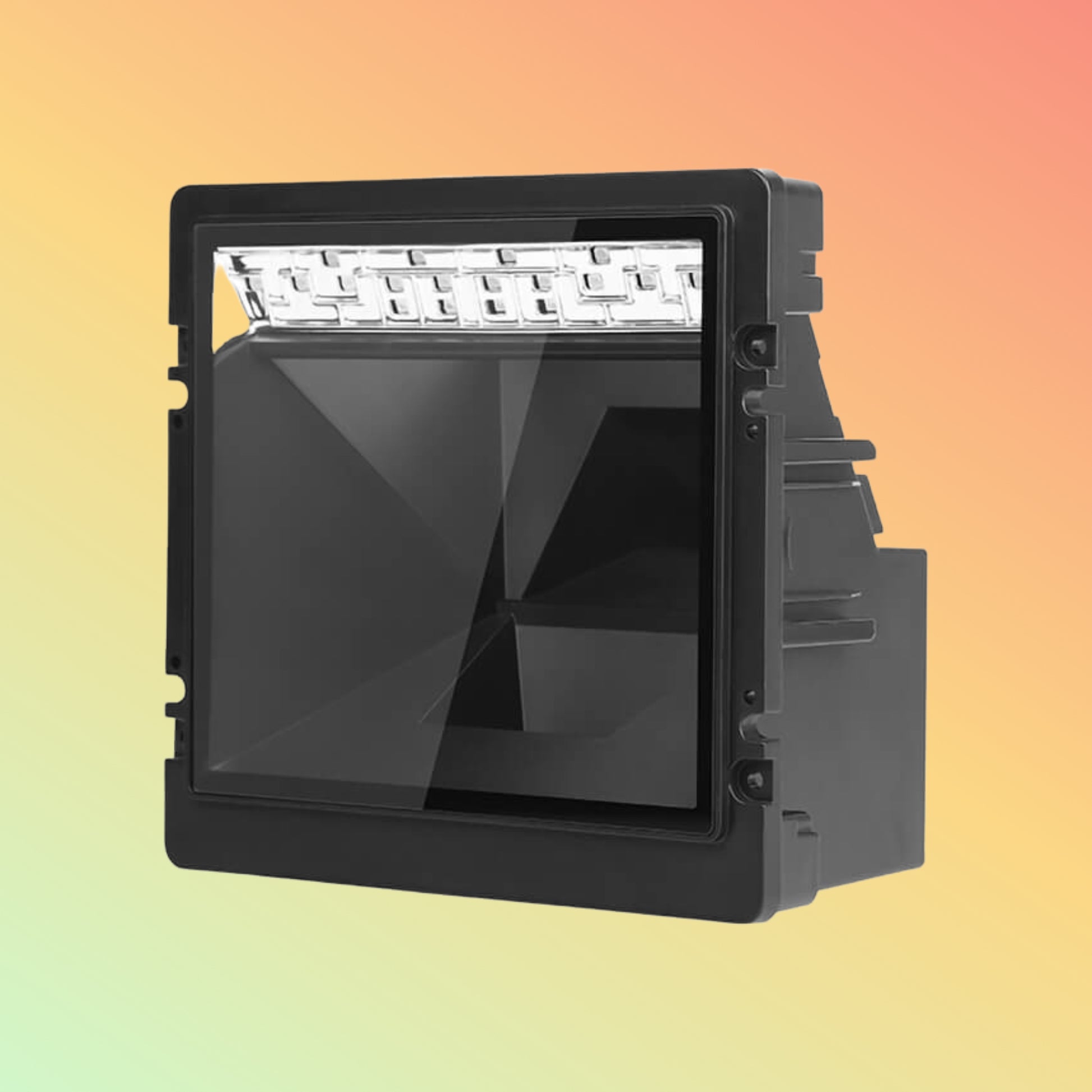

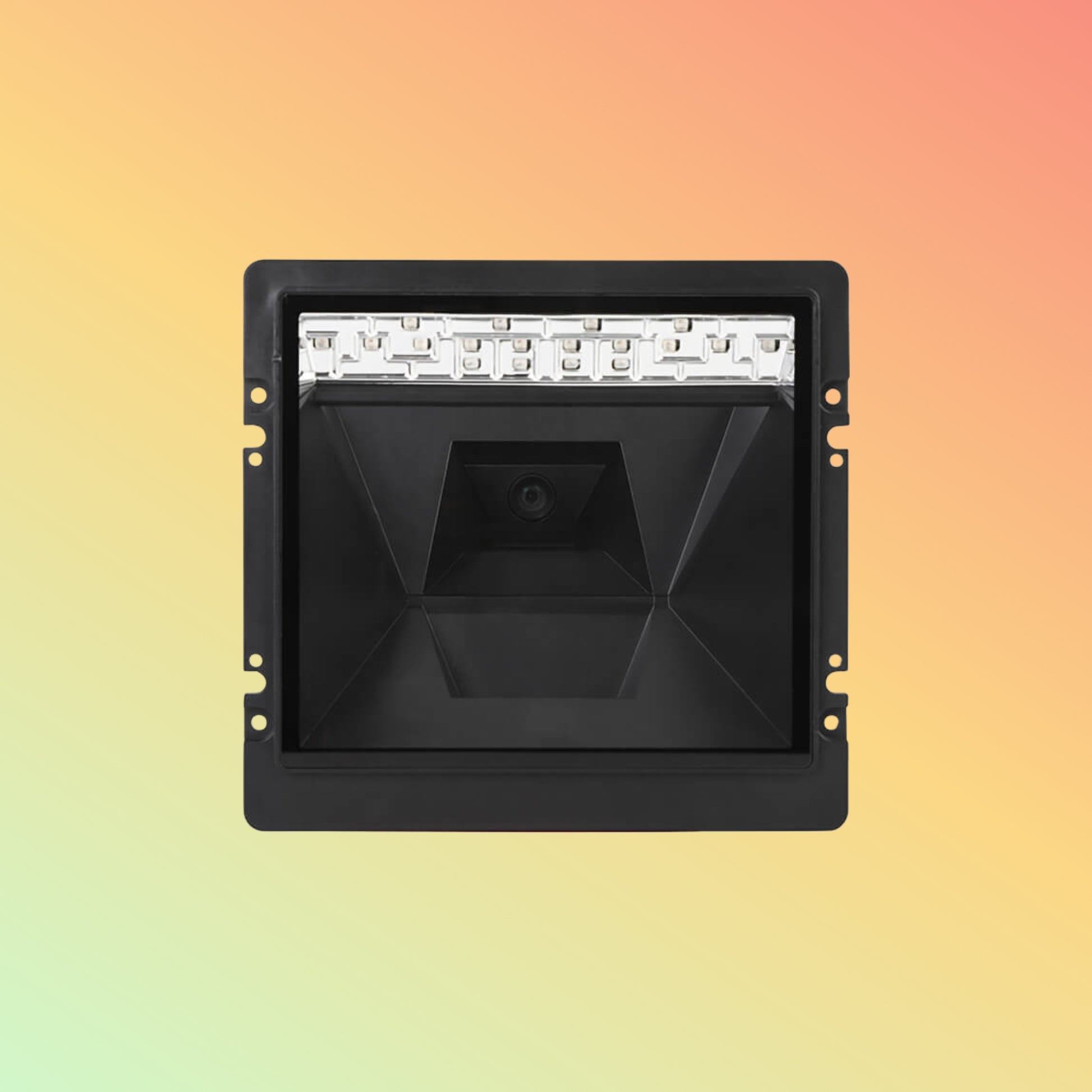

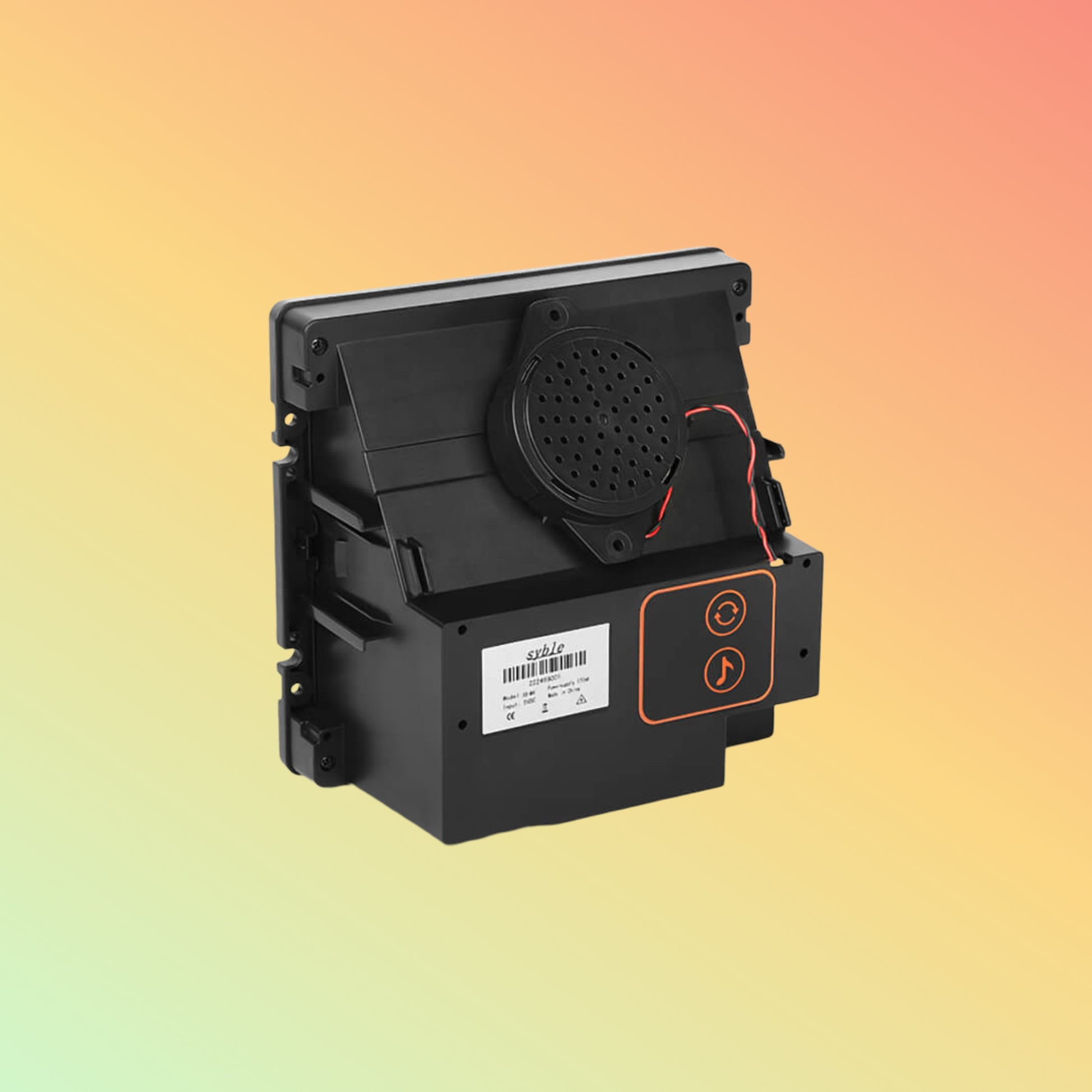

The Syble Atek AK-M4 is a slim 2D embedded scanner built to slot into kiosks, terminals or custom hardware. It rips through QR, PDF417, DataMatrix and 1D barcodes with zero lag. No bulky modules—just reliable scans in a tiny footprint.

Product Description

This board-level scanner packs a powerful decoding engine into a compact module. Mount it flush in any panel, hook up via USB, RS232 or TTL, and feed it barcodes. Advanced optics handle low-contrast and damaged codes. Designed for retail, healthcare, vending and industrial gear.

Key Features

• Full 1D & 2D support: QR, DataMatrix, PDF417, UPC/EAN

• High-speed scanning: up to 3.8 m/s throughput

• Tiny form factor: fits in 30 × 30 mm cut-outs

• Multi-interface: USB HID, COM (RS232), TTL serial

• Low-light performance with built-in illumination

• Rugged design for 24/7 operation

Specifications

• Optical Resolution: ≥ 5 mil (Code 39)

• Scan Speed: 3.8 meters/sec

• Interfaces: USB HID, RS232, TTL

• Power: 5 V DC, < 200 mA

• Operating Temp: 0 – 50 °C

• Dimensions: 32 × 32 × 12 mm module

• Weight: ~ 20 g (module only)

Supported OS / Applications / Industries

• OS: Windows, Linux, Android, iOS (via USB host)

• Apps: Self-service kiosks, POS terminals, ticketing, diagnostics

• Industries: Retail, healthcare, manufacturing, vending

Benefits & Compatibility

• Blends into any hardware panel for a seamless look

• Plugs into standard ports—no custom drivers needed

• Scans tough or faded labels with ease

• Handles high-volume environments without missing a beat

Purpose of Use

Perfect for OEMs building kiosks, ticket machines or medical devices. It speeds transactions, cuts errors, and stays hidden until you need it.

How to Use

1. Cut a 32 × 32 mm hole in your panel.

2. Snap the module in and secure with clips.

3. Wire USB-HID, RS232 or TTL to your controller.

4. Power on, then present a barcode for instant read.

Packaging / Weight / Dimensions

• In the Box: AK-M4 scanner module, mounting clips, interface cable

• Module Size: 32 × 32 × 12 mm

• Pack Weight: ~ 60 g

Warranty & FAQs

• Warranty: 2-year coverage against defects

• FAQs

  • Q: Needs firmware updates?
    A: No—updates are push-button via USB.

  • Q: Can it read smudged barcodes?
    A: Yes, its advanced optics adapt on the fly.

Performance, Quality, Durability & Reliability

Engineered with industrial-grade optics and sealed against dust, the AK-M4 runs 24/7 in tough settings. Its fast decode chip and stable illumination keep scans on point.

Best Price Guarantee

Find a lower price in the UAE? We’ll match it—no questions asked. Shop confident.

Shop Today & Receive Your Delivery Across the UAE!

Order now for 24–48 hr shipping to Dubai, Abu Dhabi, Sharjah, and all emirates. Fast, trackable and secure.

Request for Customer Reviews & Testimonials

Tried the AK-M4 in your product? Drop a quick review to help other builders choose the right scanner.

After Sales Support

Our integration experts are available 24/7 for code samples, pin-out advice or troubleshooting. Just reach out.

Get in Touch

For bulk quotes or tech advice, email sales@neodgital.com or call +971 4 123 4567.

Stock Availability

Confirm stock before ordering. Standard modules ship within 24 hrs; custom orders may need 7–10 days.

Disclaimer

All info is for general reference and may change without notice. Images are illustrative; actual product may vary. Verify specs with our team before purchase.
