Shop the 9–36 V fanless embedded box PC: Intel J1900 to Core i7, dual GigE LAN, wide I/O, Windows 10/11. Rugged, silent, maintenance-free. UAE-wide delivery!
Overview
Meet the ultimate rugged controller: a fanless embedded box PC with ultra-wide 9–36 V DC input. Choose CPUs from low-power Celeron J1900 to high-tat Core i7, and tap dual Gigabit LAN plus rich I/O. Perfect for vehicle dashboards, solar-powered kiosks, or factory floors—zero fans, zero fuss.
Product Description

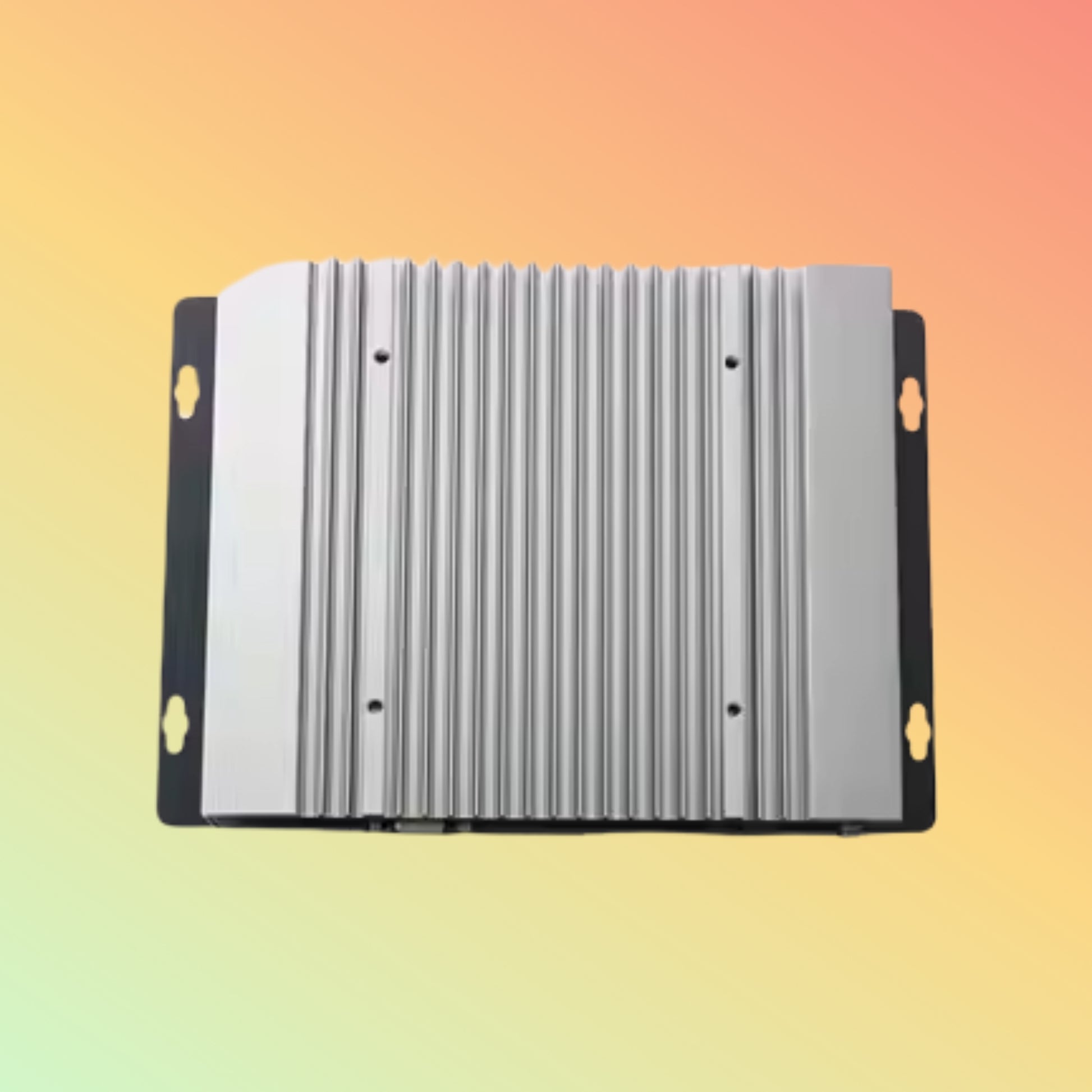

Housed in an aluminum shell with conduction cooling, this box PC runs Windows 10 or 11 nonstop without filters or fans. Its wide-range DC input handles vehicle power or solar arrays. Connect sensors, drives, and displays via 2× GbE, 4× USB 3.0, 2× COM, HDMI, and isolated digital I/O. M.2 NVMe SSD and 2.5″ SATA bays give you speedy, reliable storage. From edge analytics to HMI touchscreens, it’s built for harsh environments and silent reliability.
Key Features
-
CPU Options: Celeron J1900, Core i3-8145UE, i5-8365UE, i7-8665UE
-
Fanless Cooling: conduction-cooled, silent, maintenance-free
-
Power Input: DC 9–36 V with surge & reverse-polarity protection
-
Networking: 2× Intel® Gigabit LAN for redundant or segmented networks
-

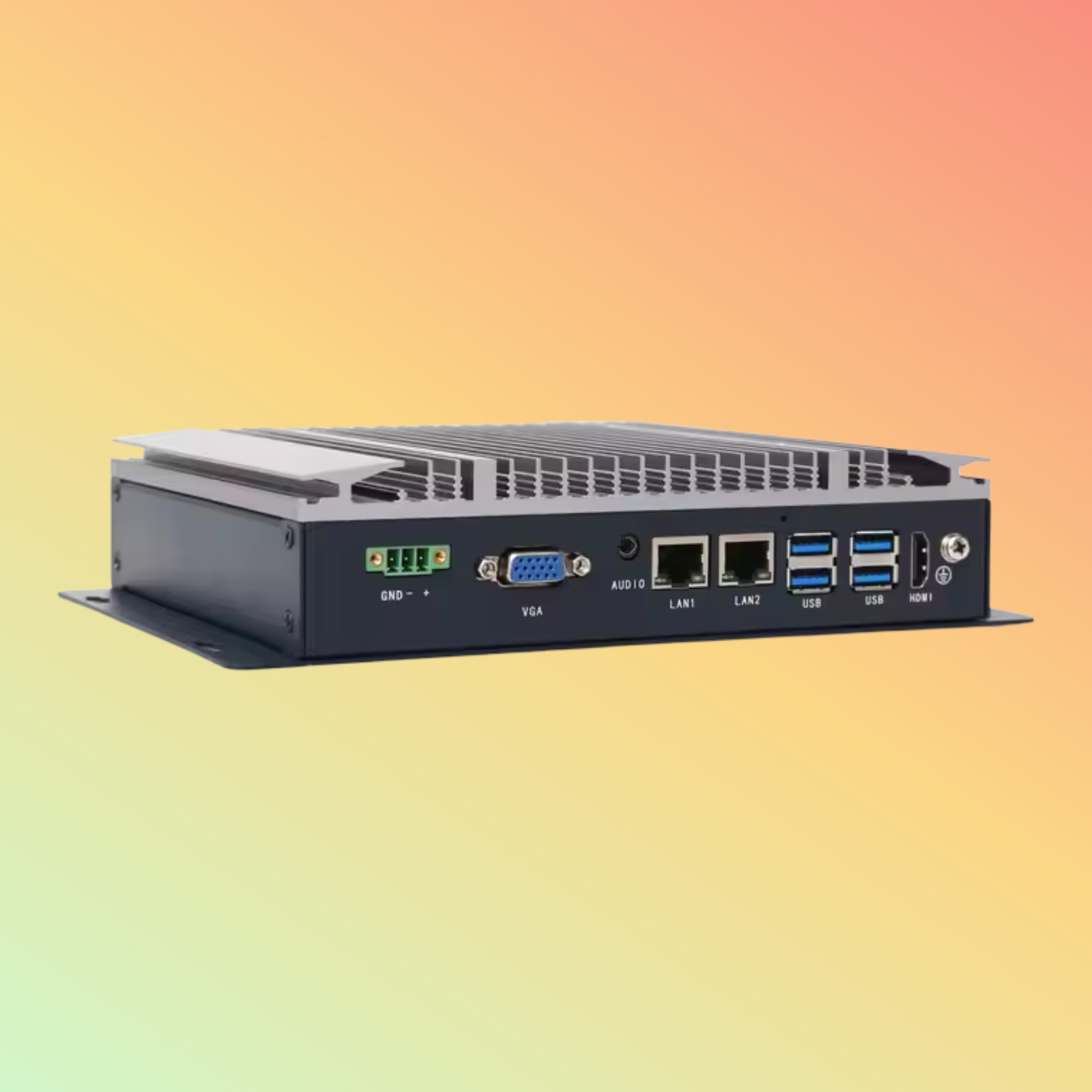

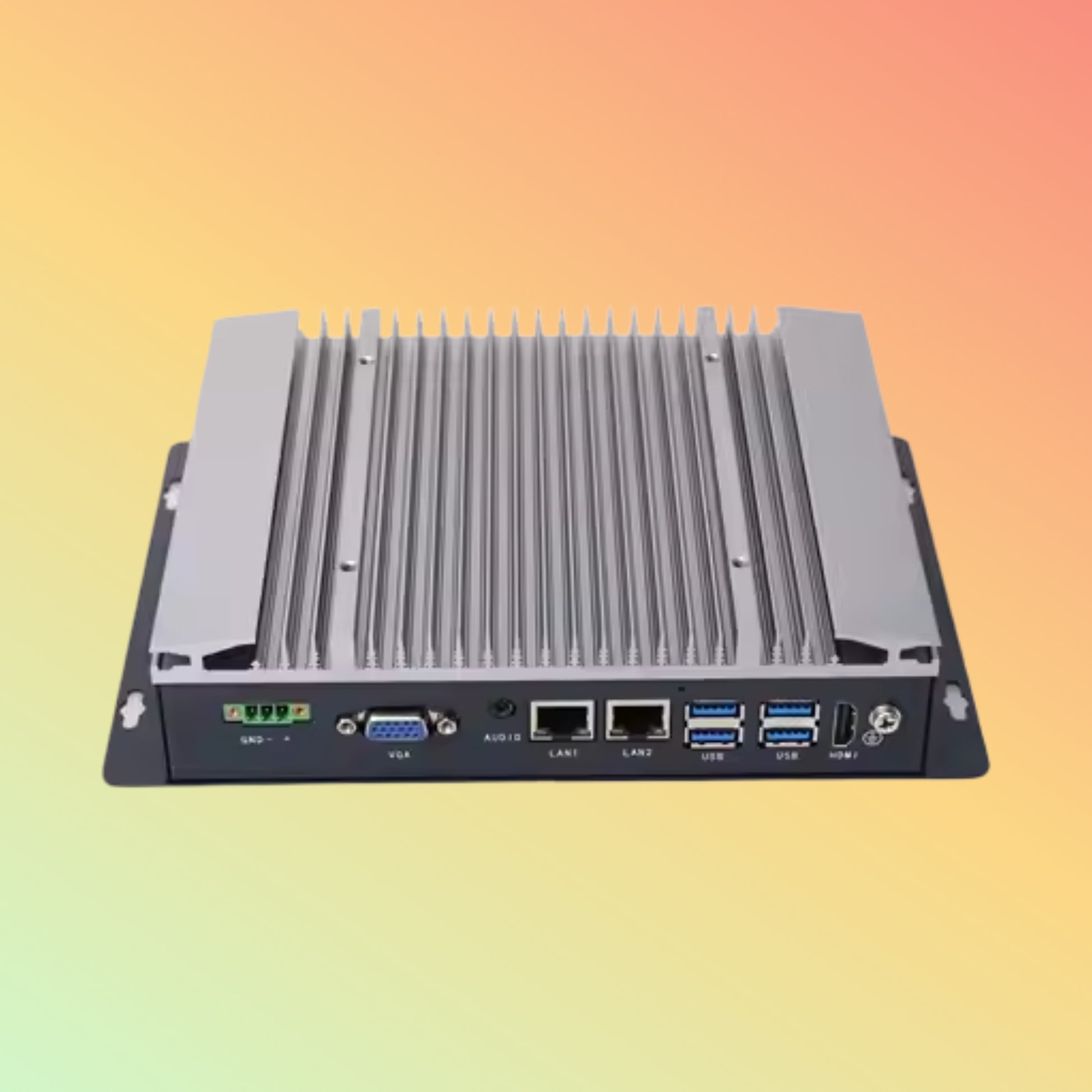

I/O: 4× USB 3.0, 2× USB 2.0, HDMI 4K@30 Hz, 2× RS-232/422/485, 8-bit DI/DO
-
Storage: M.2 2280 NVMe slot + 2.5″ SATA bay (up to 2 TB)
-
Rugged Design: –20 °C to +60 °C, VESA & DIN-rail mountable
Specifications
| Feature |
Details |
| CPU |
J1900 / i3-8145UE / i5-8365UE / i7-8665UE |
| Memory |
2× DDR4 SO-DIMM, up to 32 GB |
| Storage |
M.2 NVMe (2280) + 2.5″ SATA bay |
| LAN |
2× Intel® Gigabit |
| USB |
4× USB 3.0, 2× USB 2.0 |
| Serial |
2× RS-232/422/485 (jumper-selectable) |
| Digital I/O |
4-in, 4-out isolated |
| Video Out |
HDMI 1.4 (4K@30 Hz) |
| Power Input |
DC 9–36 V, 60 W max |
| Operating Temp |
–20 °C to +60 °C |
| Enclosure |
Aluminum, IP40 rear, conduction-cooled |
| Mounting |
VESA & DIN-rail brackets included |
| Dimensions |
200×130×50 mm |
| Weight |
~1.5 kg |
Supported OS / Applications / Industries
-
OS: Windows 10/11 Pro, Ubuntu Linux
-
Industries: Automotive, Renewable Energy, Factory Automation, Digital Signage
-
Use Cases: Edge computing, mobile kiosks, HMI control, IoT gateways
Benefits & Compatibility
-
Silent Reliability: no fans, no dust intake, filter-free
-
Versatile Power: handles battery, vehicle, or solar DC sources
-
Enterprise-Grade Networking: dual LAN for redundancy or segmentation
-
Flexible I/O: integrates legacy serial and modern USB sensors
-
Easy Mounting: VESA or DIN-rail adapts to any rack or panel
Purpose of Use
Ideal for powering vehicle dashboards, solar-powered monitoring stations, smart vending machines, or factory control cabinets—where maintenance-free, silent compute matters.
How to Use
-
Mount via VESA or DIN-rail.
-
Connect DC 9–36 V power and network/peripherals.
-
Boot into Windows 10/11 or Linux, install your software.
-
Configure serial ports and digital I/O via embedded BIOS tools.
-
Run 24/7—no fans, no filter changes.
Pro tip: Enable BIOS watchdog to auto-reboot on system hangs.
Packaging / Weight / Dimensions
Warranty and FAQs
Warranty: 2-Year Limited Industrial Warranty
FAQs:
-
Q: Can it run in vehicles?
Yes—wide DC input with ignition protection.
-
Q: Is it suitable for outdoor kiosks?
Use in an IP65 enclosure for full weatherproofing.
-
Q: Can I upgrade RAM?
Yes—two SO-DIMM slots accessible via rear panel.
Visit our Support Center.
Performance, Quality, Durability, and Reliability
Tested to MIL-STD-810G for shock & vibration; conduction cooling keeps CPU under 85 °C at full load. MTBF > 50 000 hrs in industrial settings.
Best Price Guarantee
Spotted it cheaper in the UAE? We’ll match it—no cap. Get rugged, fanless performance at the best value.
Shop Today & Receive Your Delivery Across the UAE!
Order now for express shipping to Dubai, Abu Dhabi, Sharjah & beyond. Track live from our warehouse to your site.
Request for Customer Reviews and Testimonials
Deploying this box PC? Drop a review to share your uptime wins—help peers choose the right embedded controller.
After Sales Support
24/7 chat, email & phone support for setup, BIOS updates & troubleshooting. We’ve got your back—silent, rugged, dependable.
Get in Touch
Questions before you buy? Chat live or email sales@neotech.ae—real pros, real answers.
Stock Availability
High demand—confirm stock before ordering. Standard configs ship in 2–5 business days; custom CPU/power options in ~10 days.
Disclaimer
All specs, images & pricing subject to change without notice. Illustrations for reference only. Verify details with our sales team prior to purchase.
