Tiny ARC-Certified UHF RFID tags (50×18 mm) by XGSun. 860–960 MHz, ISO 18000-6C/EPC Gen2, wash- & heat-proof. Shop UAE-wide at NEOTECH!
Overview

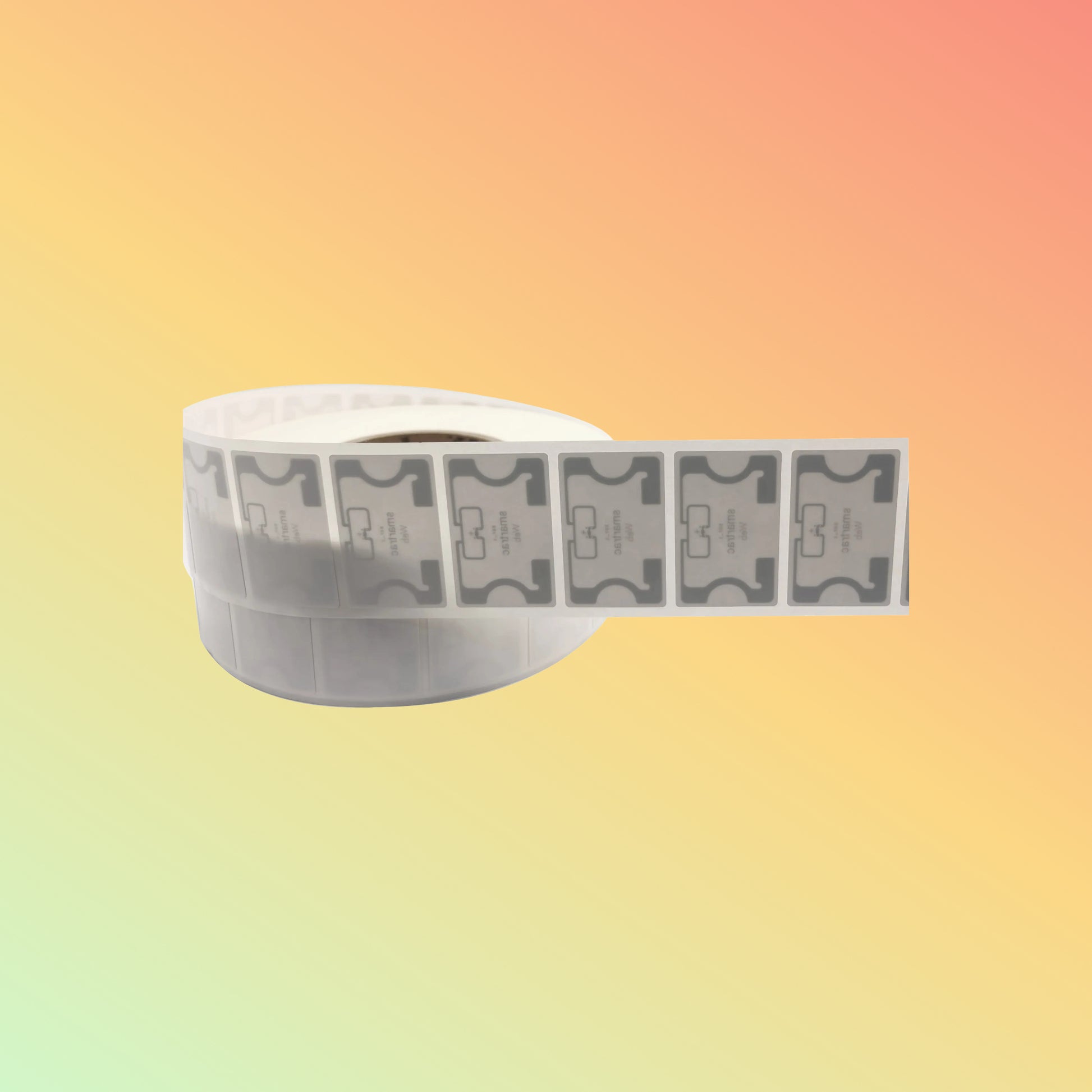

Meet XGSun’s U8 ARC-Certified Passive UHF RFID Tag—designed for small or curved assets (cables, trim, garments). At just 50 × 18 mm, its rugged PET substrate and textile-grade adhesive survive wash, dry-clean, and ironing cycles, yet still deliver up to 4 m read-range. ISO 18000-6C/EPC Gen2 compliance ensures plug-and-play integration with any UHF reader.
Product Description
The XGSun U8 Tag combines a precision aluminum antenna and Impinj Monza R6-P chip on a thin (0.15 mm) PET film. ARC (All-weather, Ruggedized, Cleanable) certification guarantees reliable reads after 50+ wash/dry-clean cycles and ironing at up to 200 °C. With 96 bit EPC and 512 bit user memory, you can store asset IDs, batch codes, or calibration data. Its textile-safe adhesive conforms to cables, seams, and narrow edges, making small-item RFID tracking effortless.
Key Features
-
ARC-Certified Durability: Wash, dry-clean & ironing proof
-
Compact Form: 50 × 18 × 0.15 mm for small assets
-
Global UHF: 860–960 MHz, ISO 18000-6C/EPC Gen2
-
Read Range: Up to 4 m with mid-gain readers
-
Memory: 96 bit EPC + 512 bit user + 64 bit TID
-
Substrate: Flexible PET, UV & moisture resistant
-
Adhesive: Textile-grade permanent bond
-
Temp Rating: –30 °C to +85 °C operational
Specifications
| Attribute |
Details |
| Chip |
Impinj Monza R6-P (high sensitivity) |
| Frequency |
860–960 MHz (global UHF band) |
| Dimensions |
50 × 18 × 0.15 mm (± 0.5 mm) |
| Substrate |
0.15 mm PET film, ARC-certified laminate |
| Adhesive |
Textile-safe, permanent acrylic |
| Read-Range |
Up to 4 m (environment-dependent) |
| Write-Cycles |
≥ 100 000 |
| Standards |
ISO 18000-6C, EPC Gen2 |
| Packaging |
Rolls of 500 tags on 76 mm core |
Supported Systems & Applications
-
Readers: Impinj, Zebra, ThingMagic UHF handhelds & portals
-
Use Cases: Cable marking, garment tags, small tool tracking, lab instruments
Benefits & Compatibility
-
Versatile Mounting: Conforms to curves and narrow edges
-
High Durability: ARC certification for textiles & industrial wash
-
Fast Bulk Reads: Scan dozens of tags per second
-
Plug-and-Play: Integrates with any ISO 18000-6C system
-
Cost-Effective: Low unit cost for high-volume deployments
Purpose of Use
-
RFID-enable small-diameter cables and wiring harnesses
-
Tag apparel care labels for laundry & dry-clean tracking
-
Track lab vials, instruments, and handheld tools
-
Integrate into “smart” garment or equipment management
How to Use
-
Clean mounting surface (remove dust/oil).
-
Peel backing from tag.
-
Wrap or press onto cable, seam, or small part.
-
Program EPC & user data via UHF reader/writer.
-
Verify reads with handheld or fixed scanner.
Packaging / Weight / Dimension
Warranty & FAQs
Warranty: 1 Year Limited Manufacturer Warranty
FAQs
-
Will tags survive industrial laundry?
Yes—ARC-certified for 50+ wash/dry cycles at up to 200 °C.
-
Are they re-usable?
No—adhesive is single-use, but tags can be re-programmed.
-
Can they stick to glossy fabrics?
Best on matte or woven surfaces; test glossy first.
Full support at NEOTECH Support.
Performance, Quality & Durability
Tested under ISO/IEC 18000-6C protocols, these tags maintain consistent read integrity after repeated mechanical and thermal stress.
Best Price Guarantee
Found a better bulk rate? We’ll match it. Shop confidently at NEOTECH UAE.
Shop Today & Delivery Across the UAE
Fast, secure shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Order now for next-day dispatch!
Customer Reviews & Testimonials
Deployed XGSun U8 tags? Share your success at neodgital.com/reviews to help peers.
After-Sales Support
Our RFID experts guide you from tag selection to full integration. Contact via NEOTECH Contact.
Get in Touch
Questions or custom sizes? Visit NEOTECH Support or email us for pro advice.
Stock Availability
Inventory updates hourly—confirm roll counts before large projects to secure stock.
Disclaimer
Specifications, pricing, and availability subject to change without notice. Images are illustrative; actual tag dimensions or chip options may vary. Verify details with our sales team before purchase. NEOTECH is not liable for typographical errors.
