21.5″ fanless rugged touch PC with Intel® Core™ i5, 8 GB RAM, 256 GB SSD, PoE+, IP65 front, Wi-Fi 6. Perfect for industrial kiosks and signage.
Overview

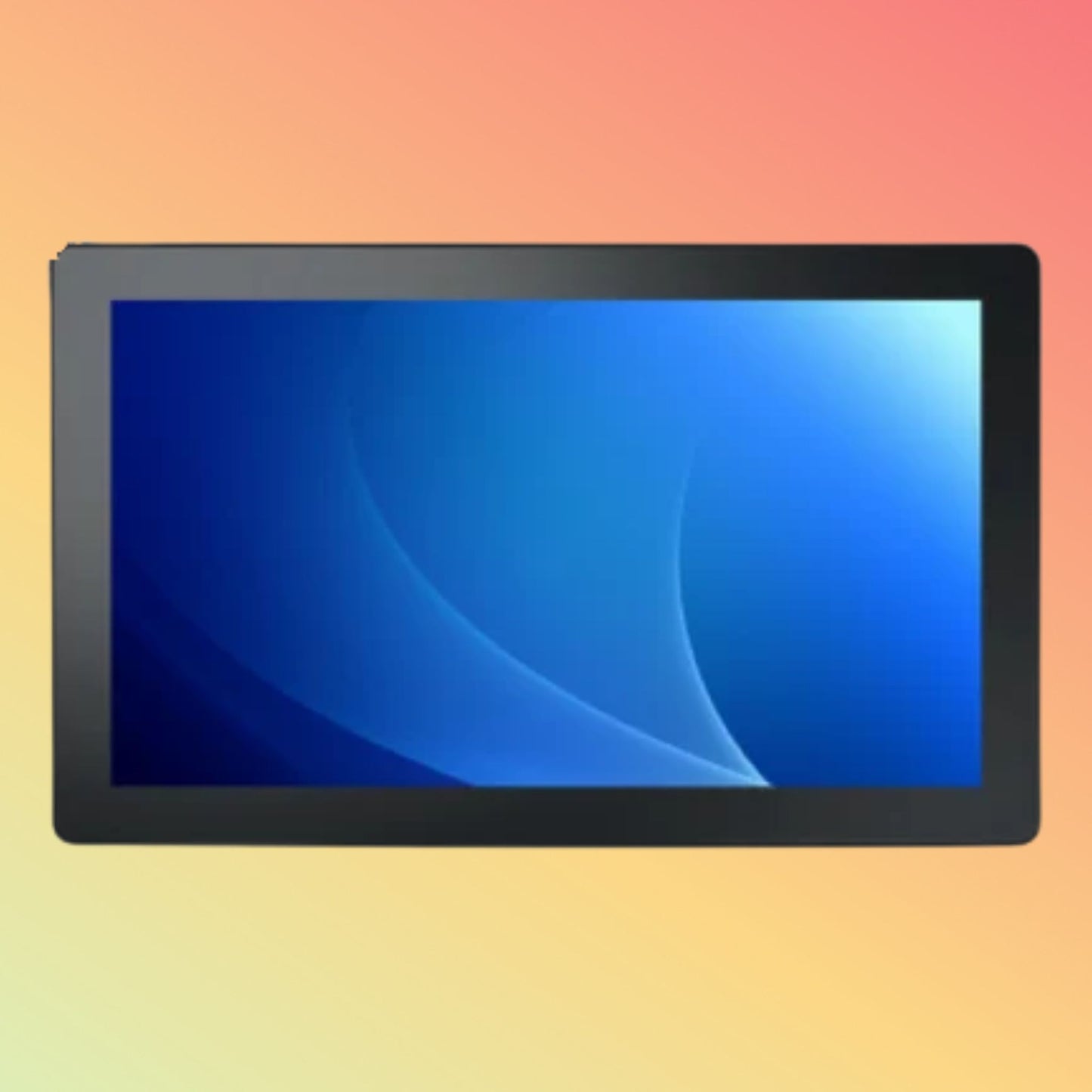

The Advantech 21.5″ Rugged All-in-One Touch Computer combines a durable IP65-rated front panel with high-performance Intel® processing in a fanless design. Engineered for harsh environments, it delivers reliable multi-touch interactions for industrial kiosks, outdoor signage, and HMI applications.
Product Description
Powered by Intel® Core™ i5-1135G7 and featuring 8 GB DDR4 and a 256 GB NVMe SSD, this AIO boots and runs demanding applications in seconds. Its fanless thermal solution eliminates dust ingress, while PoE+ support simplifies cabling. A 10-point projected-capacitive touchscreen, integrated HD camera, dual-array microphones, and stereo speakers enable interactive services and video communications. Compatible with Windows 10 IoT and Ubuntu, it supports remote management and secure operation around the clock.
Key Features
-
Display: 21.5″ FHD (1920×1080) projected-capacitive multi-touch
-
Processor: Intel® Core™ i5-1135G7 (4 cores, up to 4.2 GHz)
-
Memory & Storage: 8 GB DDR4-3200 (up to 16 GB), 256 GB NVMe SSD
-
Connectivity: PoE+ (802.3at), 1× GbE, Wi-Fi 6, Bluetooth 5.2, 4× USB 3.2 Gen1, HDMI out
-
Audio/Video: 1080p HD camera, dual-array mics, 2× 2 W speakers
-
Security: TPM 2.0, Kensington lock slot
-
Ruggedization: IP65-rated front bezel, IK07 impact resistance
-
Mounting: VESA 100×100 mm, slim profile
Specifications
| Specification |
Detail |
| CPU |
Intel® Core™ i5-1135G7 |
| RAM |
8 GB DDR4-3200 (1 SO-DIMM slot, up to 16 GB) |
| Storage |
256 GB M.2 NVMe SSD; optional 2.5″ SATA bay |
| Display |
21.5″ FHD, PCAP 10-point multi-touch |
| Graphics |
Intel® Iris® Xe Graphics |
| OS Support |
Windows 10 IoT Enterprise; Ubuntu 20.04 LTS |
| I/O |
4× USB 3.2 Gen1, HDMI out, 2× GbE, COM, line-out, SD slot |
| Audio |
HD camera, dual-array mics, 2× speakers |
| Power |
DC 12 V or PoE+ |
| Dimensions |
508 × 315 × 50 mm |
| Weight |
~4.8 kg |
| Operating Temp. |
0 – 45 °C |
| Front Protection |
IP65 (dust-tight, water-jet resistant) |
| Impact Rating |
IK07 |
Supported OS / Applications / Industries
-
Operating Systems: Windows 10 IoT Enterprise, Ubuntu 20.04 LTS
-
Applications: Industrial kiosks, digital signage, HMI, visitor check-in, telehealth
-
Industries: Manufacturing, retail, hospitality, transportation, healthcare
Benefits & Compatibility
-
Maintenance-Free: Fanless design prevents dust buildup and reduces service calls
-
Simplified Installation: PoE+ powers and networks over a single cable
-
All-Weather Ready: IP65 front bezel and IK07 protection for semi-outdoor use
-
Seamless Interaction: 10-point touch plus camera and audio for rich user experiences
-
Flexible Deployment: VESA mounting and multiple OS images streamline roll-out
Purpose of Use
Ideal for interactive self-service terminals, digital wayfinding, operator control panels, and video-enabled customer service stations where reliability and durability are critical.
How to Use
-
Mount & Power: Attach to VESA arm or wall bracket; connect PoE+ or 12 V DC.
-
Load OS: Flash Windows IoT or Ubuntu image to SSD/M.2 slot.
-
Connect Network: Plug in Ethernet or enable Wi-Fi/BT.
-
Deploy Apps: Install kiosk, signage or HMI software.
-
Manage Remotely: Use WMI (Windows) or SSH (Linux) for updates and diagnostics.
Pro Tip: Enable kiosk lockdown in Windows IoT to secure the UI.
Packaging / Weight / Dimensions
-
Includes: AIO unit, PoE+ injector, 12 V adapter, VESA kit, quick-start guide
-
Unit Weight: ~4.8 kg
-
Package Size: 580 × 350 × 150 mm
Warranty and FAQs
Warranty: 3-year advance replacement
FAQs:
Performance, Quality, Durability, and Reliability
Industrial-grade components, sealed thermal architecture, and mechanical impact resistance ensure stable 24/7 operation in demanding environments.
Best Price Guarantee
Find a lower UAE-based price on the same model? We’ll match it—no questions asked. Shop confidently with NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Enjoy fast, secure delivery across Dubai, Abu Dhabi, Sharjah, and all emirates. Bulk orders? Request priority dispatch.
Request for Customer Reviews and Testimonials
Deployed this rugged AIO? Share your success story to help peers and inform our next-gen designs.
After Sales Support
Our live-chat and ticketing portal provide 24/7 technical assistance to keep your systems online and productive.
Get in Touch
Visit the product page on NEOTECH’s website to submit an inquiry—our specialists will connect with you promptly.
Stock Availability
Inventory updates daily. For urgent or volume orders, confirm availability before checkout; special configurations may require 10–15 business days.
Disclaimer
Specifications subject to change without notice. Images are illustrative. Verify technical and pricing details with NEOTECH prior to purchase.
