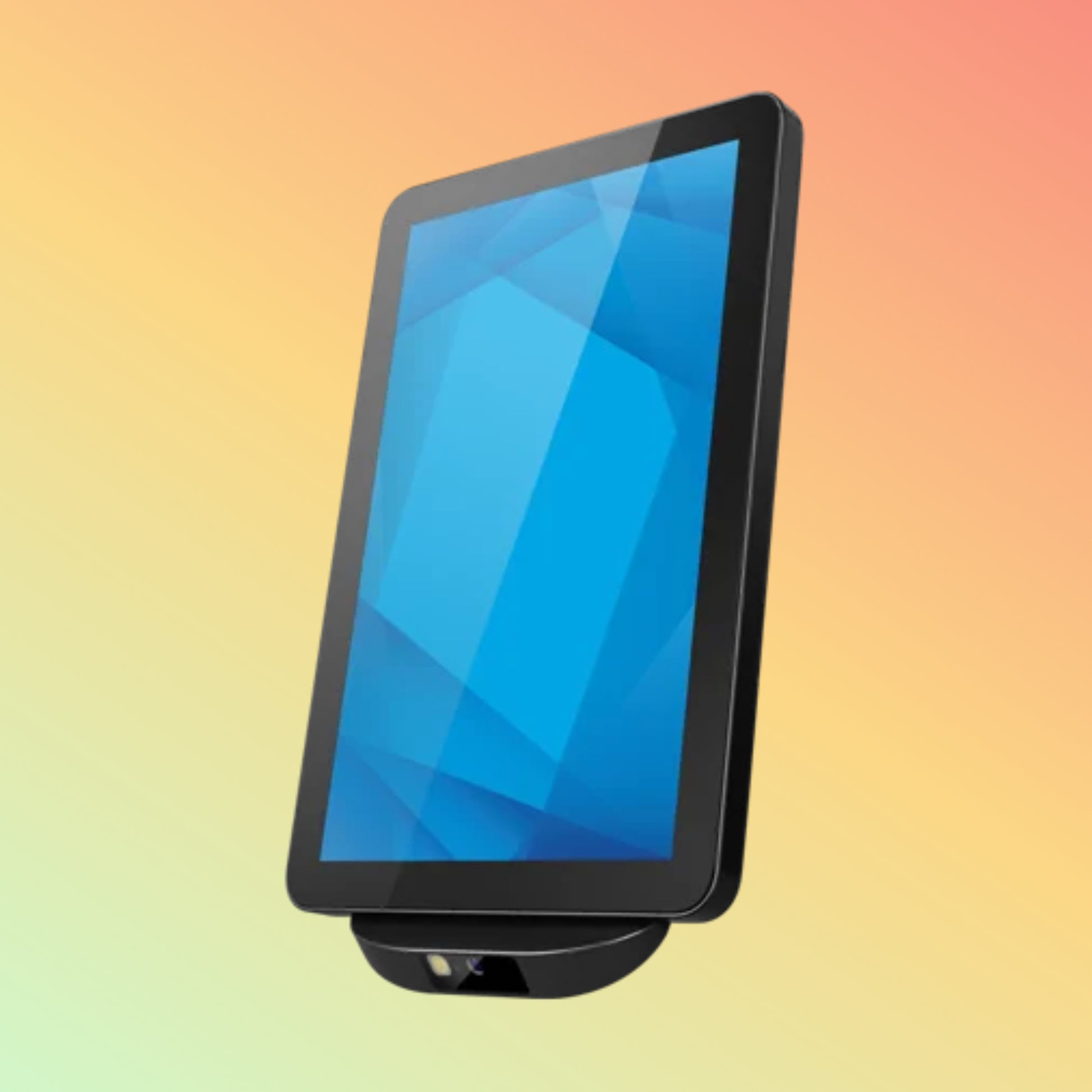

Elo 1304LS: 13″ Full HD PCAP touchscreen with edge-to-edge bonded glass, IP54 front seal, USB-C video/touch/power. Ideal for POS & kiosks.
Overview
The Elo 1304LS delivers a compact 13″ Full HD display with precise 10-point projected-capacitive touch in an ultra-thin-bezel, edge-to-edge glass design. Its optical bonding boosts contrast and prevents fogging, while the IP54-rated front keeps out dust and splashes—perfect for retail, hospitality, and self-service kiosks.
Product Description
Engineered for 24/7 commercial use, the Elo 1304LS features bonded anti-glare glass that resists scratches and spills. The high-speed PCAP sensor reads bare-finger or gloved touch with under 10 ms latency. A single USB-C cable handles video, touch, and up to 60 W power delivery; HDMI and DisplayPort plus USB-A ports support legacy peripherals. VESA 75×75 mm mounting ensures versatile placement on walls, stands, or counters.
Key Features
-
13″ Full HD (1920×1080) – Sharp text and vibrant graphics
-
10-Point PCAP Touch – Fast, accurate multi-touch gestures
-
Optical Bonding – Enhanced contrast; no internal glare or condensation
-
IP54-Sealed Front – Dust- and splash-resistant for busy environments
-
Ultra-Thin Bezel – Maximizes usable screen area
-
Single-Cable USB-C – Video, touch, and power (60 W PD) in one link
Specifications
| Specification |
Details |
| Display Size |
13″ diagonal TFT LCD |
| Resolution |
1920×1080 (16:9) |
| Touch Technology |
Projected-capacitive, 10-point |
| Brightness |
300 cd/m² |
| Contrast Ratio |
1000 : 1 |
| Viewing Angles |
178° H × 178° V |
| Glass |
4 mm bonded, anti-glare tempered |
| Front Seal |
IP54 |
| Video Inputs |
USB-C×1 (video/touch/PD), HDMI×1, DP×1 |
| USB Ports |
USB-A×2 |
| Mounting |
VESA 75×75 mm |
| Dimensions |
313×212×45 mm (W×H×D) |
| Weight |
2.2 kg |
| Power |
100–240 VAC in; USB-C PD out up to 60 W |
| Operating Temp |
0 °C – 40 °C |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android (HID-compliant)
-
Applications: POS stations, self-service kiosks, digital signage
-
Industries: Retail, hospitality, healthcare, banking, transportation
Benefits & Compatibility
-
Fast Deployment: USB-C single-cable reduces installation complexity
-
Robust Reliability: Bonded glass and sealed front minimize maintenance
-
Engaging UX: True multi-touch drives self-service adoption
-
Flexible Integration: Fits any VESA 75×75 mm mount or compatible stand
Purpose of Use
Ideal for:
-
Compact retail checkout and line-busting
-
Table-side ordering in cafés and restaurants
-
Patient check-in kiosks in clinics and hotels
-
Interactive wayfinding and information displays
How to Use
-
Mount via VESA 75×75 pad or place on compatible stand.
-
Connect USB-C for video, touch, and power or HDMI/DP + USB-A.
-
Calibrate touch via your OS settings if needed.
-
Launch your POS, kiosk, or signage application.
Packaging / Weight / Dimensions
-
Includes: Elo 1304LS monitor, power adapter, USB-C cable, HDMI cable, quick-start guide
-
Packed Weight: 2.8 kg
-
Box Size: 380×280×110 mm
Warranty and FAQs
FAQs:
-
Can it rotate to portrait? Yes—supports 90° rotation via VESA mount.
-
Is it glove-compatible? Yes; PCAP reads gloved or bare-finger touches.
-
Does USB-C deliver power? Yes, up to 60 W PD.
Performance, Quality, Durability & Reliability
Tested for 24/7 operation, the Elo 1304LS meets ISO 9241-307 for touch durability and MIL-STD-810G for shock. Optical bonding prevents condensation and ghost touches, ensuring consistent performance in busy venues.
Best Price Guarantee
Found a lower UAE price on the Elo 1304LS? We’ll match it—guaranteed. Get enterprise-grade reliability at the best value.
Shop Today & Receive Your Delivery Across the UAE!
Enjoy next-day shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates. Secure checkout and live tracking ensure on-time delivery.
Request for Customer Reviews and Testimonials
Deploying Elo 1304LS? Share your experience to guide peers. Submit a review
After Sales Support
From installation tips to firmware updates, our Elo specialists are on call via email, phone, or live chat—keeping your touchscreen fully operational.
Get in Touch
Need deployment advice or volume quotes? Contact our Elo experts for tailored solutions and rapid responses.
Stock Availability
Stocks update daily. For urgent orders, confirm availability with our sales team before checkout. Custom bezel or glass options may require 7–10 business days.
Disclaimer
All specifications and pricing are general informational purposes and subject to change without notice. Product images are illustrative. Verify final details with our sales team before ordering.
