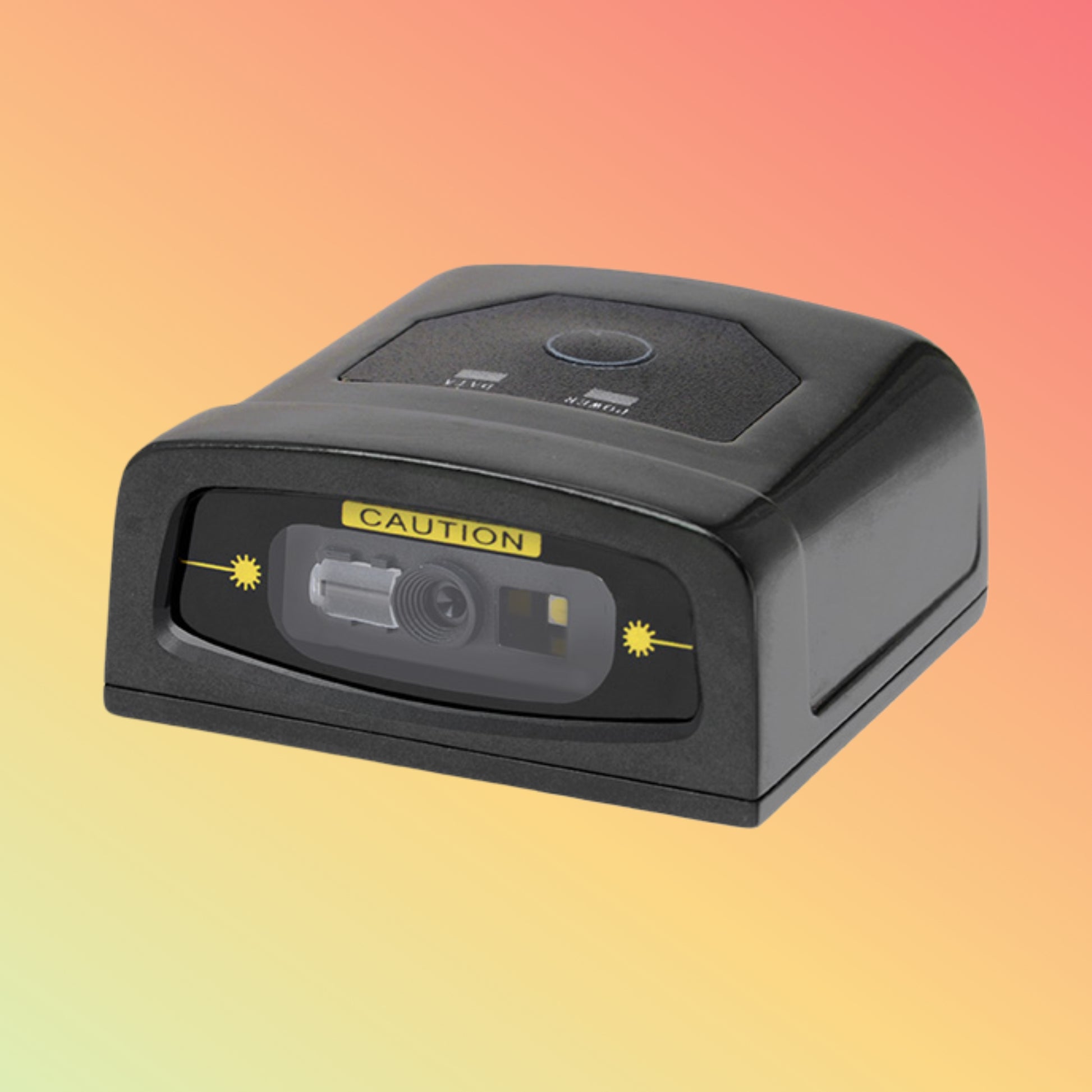

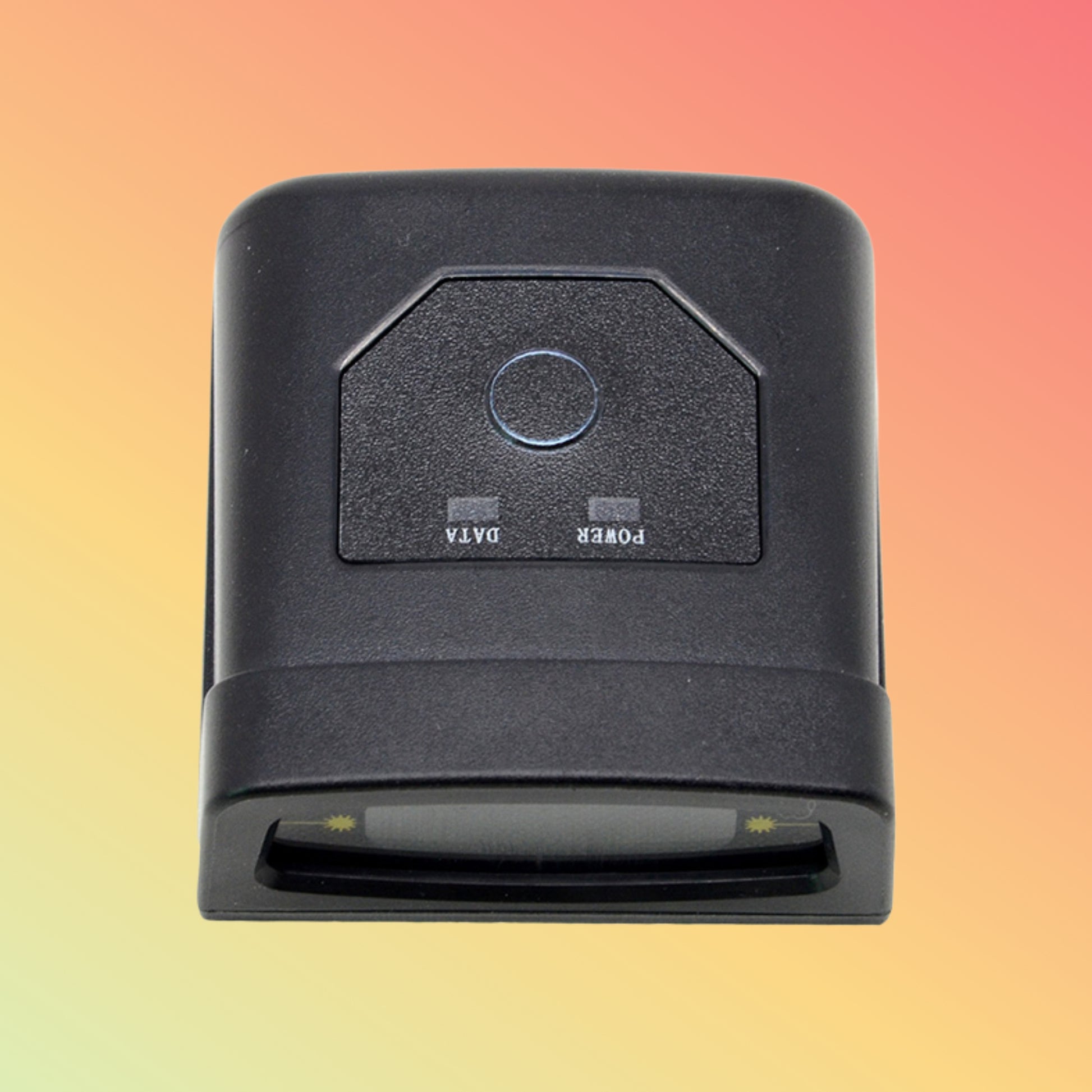

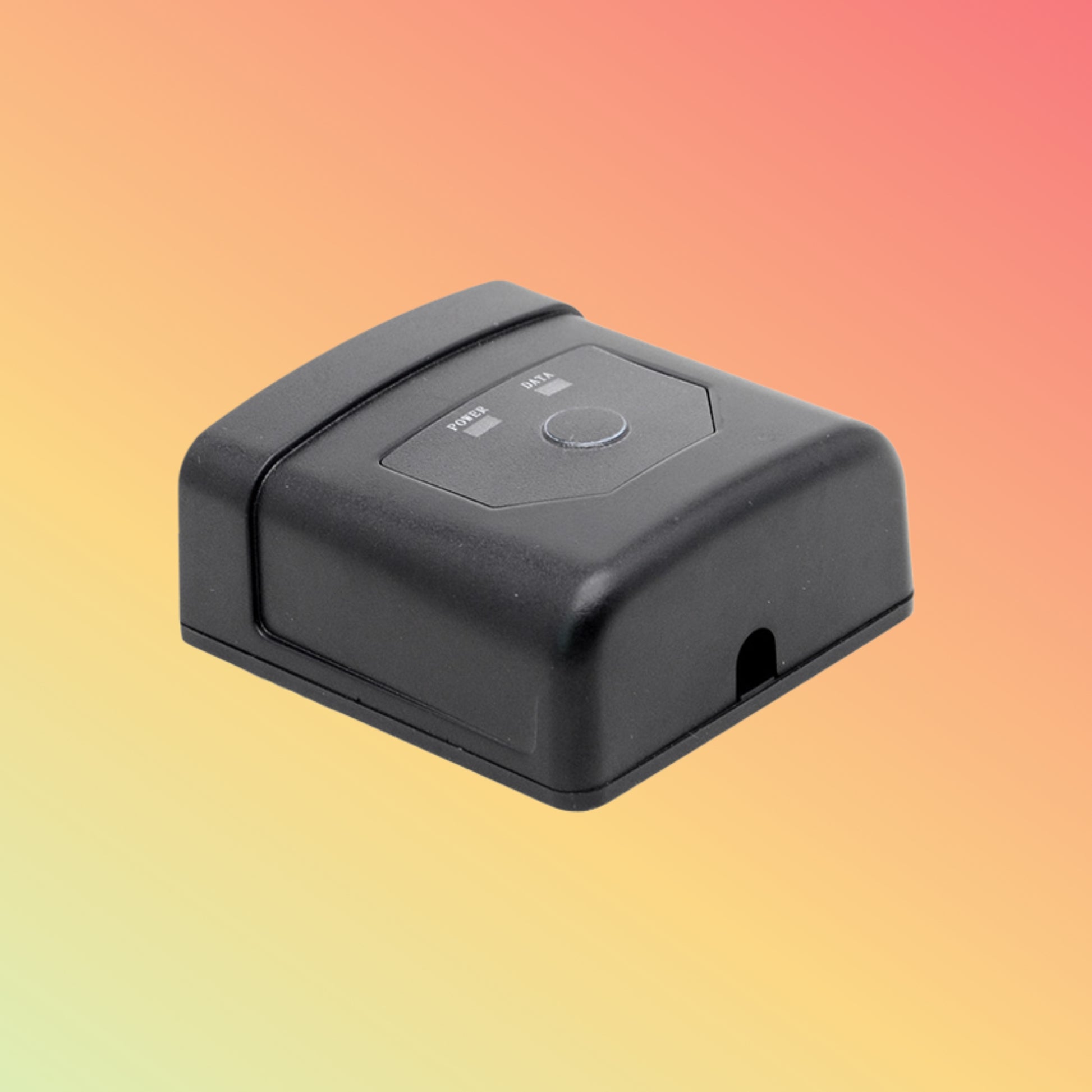

Luckydoor K-725 Embedded 2D Barcode Scanner QR Code Reader for Kiosk

K-725 embedded 2D scanner—fast omni-directional QR/1D reads, USB/TTL interface, through-glass capable. Shop at NEOTECH.

Overview

Level up your self-service stations—ATMs, kiosks, ticket dispensers—with the Luckydoor K-725. Its high-sensitivity CMOS sensor decodes 1D & 2D codes (QR, Data Matrix, PDF417) at up to 120 scans/sec, even through 3 mm of glass. Choose USB HID, USB CDC (virtual COM), or TTL serial for plug-and-play integration.

Internal Link: Check out more in our Embedded Scanner Modules lineup.
External Link: Learn about barcode symbologies on the GS1 site.

Product Description

The K-725 packs pro-grade decoding firmware on-board—no host CPU hit. Its tiny 55 × 35 × 17 mm footprint fits snug behind bezels or glass. Rated IP54, it resists dust and splashes for 24/7 uptime. Mount behind protective panels—its optics see through glass and plastic seamlessly for true hands-free scanning.

Key Features

• 1D & 2D decoding: UPC/EAN, Code 39/128, QR, PDF417, Data Matrix

• Omni-directional scan—no code alignment required

• Through-glass capable up to 3 mm thickness

• Fast decode: up to 120 scans/sec via CMOS sensor

• Multi-interface: USB HID, USB CDC (virtual COM), TTL serial

• Embedded firmware: on-board decoding, zero-driver setup

• Sealed IP54: dust & splash resistance

• Ultra-compact: 55 × 35 × 17 mm, 22 g

Specifications

Supported OS / Applications / Industries

• OS: Windows, Linux, Android, iOS (via HID)

• Apps: Kiosk Firmware, POS systems, ticketing

• Industries: Banking, Retail, Transportation, Hospitality, Self-Service

Benefits & Compatibility

• Plug-and-play: HID or COM, zero drivers

• Angle-free scanning: supercharges throughput

• Host CPU-offload: embedded firmware decodes on-board

• Rugged & sealed: IP54 for public environments

• Compact embed: fits behind glass or bezels

Purpose of Use

Ideal for ATMs, ticket kiosks, vending, check-in terminals, and any self-service device where space, speed, and reliability are critical.

How to Use

1. Mount K-725 behind bezel or protective window

2. Connect 5 V DC power + data interface (USB/TTL)

3. Configure via onboard jumpers or scan our config barcodes

4. Point at code—auto-scan without trigger

5. Data streams into your app instantly

Packaging / Weight / Dimension

• Includes: K-725 module, mounting bracket, interface cable, quick-start guide

• Module size: 55 × 35 × 17 mm, 22 g

• Package weight: ~55 g

Warranty & FAQs

• Warranty: 1-year limited

• FAQs:

  • Q: Can it read through glass?
    A: Yes—up to 3 mm thickness.

  • Q: How to switch interfaces?
    A: Use onboard jumpers or scan the config barcode sheet.

  • Q: Does it handle low-contrast codes?
    A: Embedded exposure tuning ensures reliable reads.

Performance, Quality, Durability & Reliability

With IP54 sealing and MTBF ≥ 12 000 hrs, the K-725 is engineered for nonstop operation in harsh public environments.

Best Price Guarantee

Found a lower price on the same spec? NEOTECH will match it—no hassle.

Shop Today & Delivery Across the UAE!

Order now for express shipping to Dubai, Abu Dhabi, Sharjah, Ajman, and beyond. Track in real time.

Customer Reviews & Testimonials

Loved your K-725? Share a quick review on our site and help others choose smart.

After-Sales Support

Need integration tips or troubleshooting? Our UAE support team is one call or email away. If remote help can’t fix it, we’ll guide you through a hassle-free RMA.

Get in Touch

For bulk quotes, custom firmware, or SDK access, contact our sales team for samples, demos, and pro advice.

Stock Availability

Confirm live inventory with our sales team before ordering—lead times may vary for custom configs.

Disclaimer

Specs, pricing, and availability subject to change without notice. Images are illustrative; actual module may vary. Always verify details with NEOTECH before purchase.
