PLUS2: Compact panel-mount thermal printer, IP54 front, USB & RS-232. Flush installation for industrial panels. Order today!
Overview

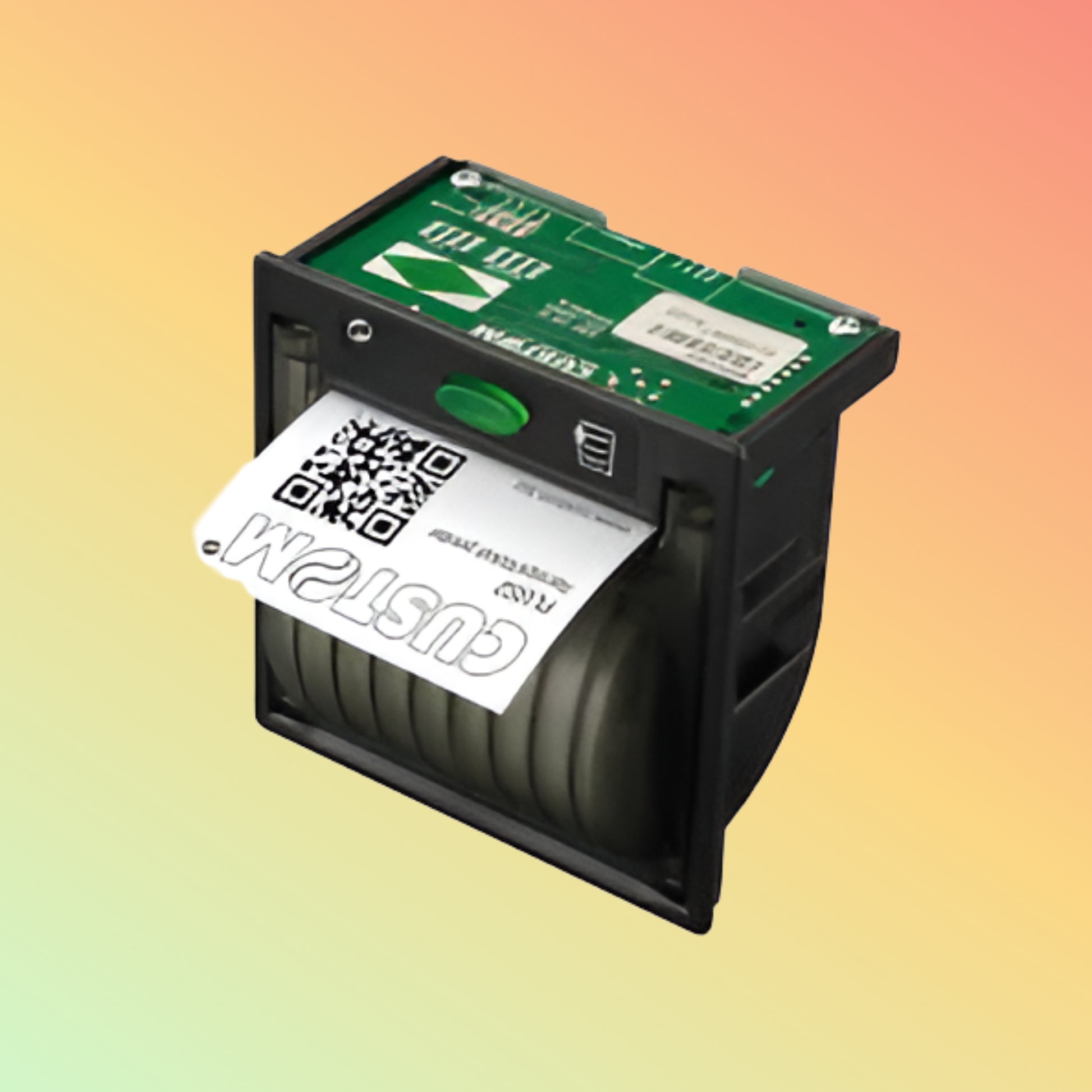

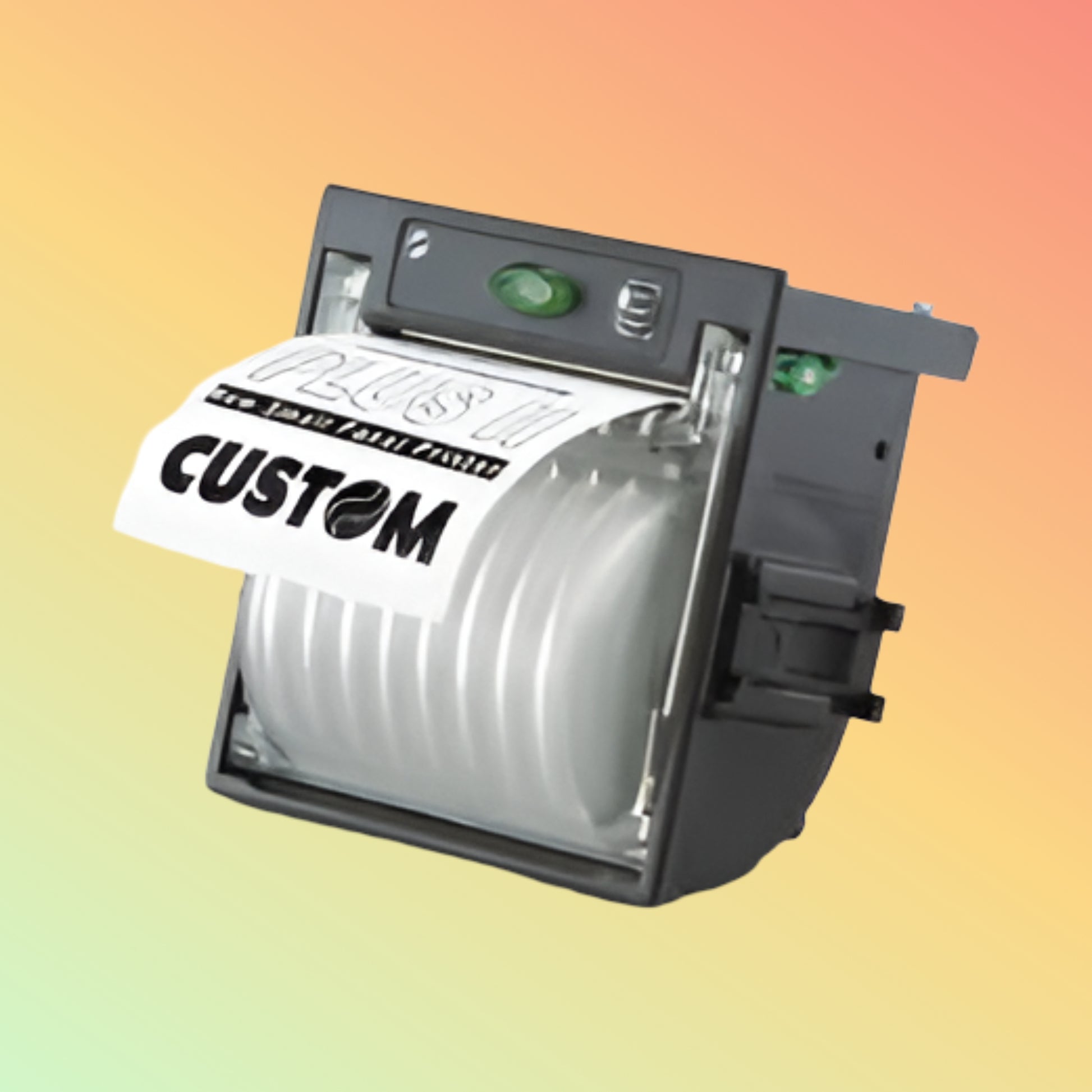

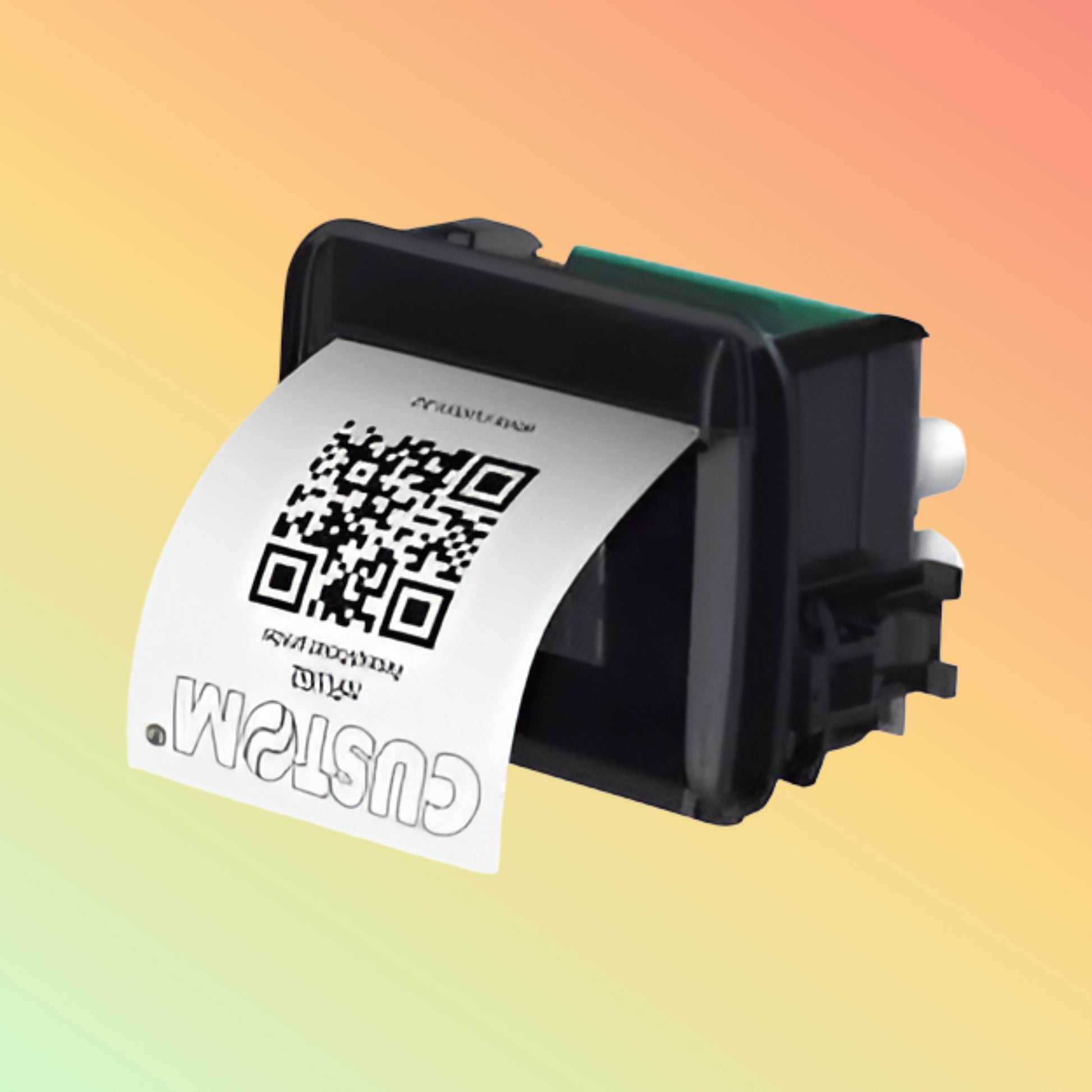

The Custom America PLUS2 brings reliable thermal printing to your control panels. Its compact, flush-mount design (92×92 mm cut-out) and IP54 front seal deliver dust- and splash-resistant performance. USB and RS-232 connectivity ensure plug-and-play integration, maximizing uptime in industrial environments.
Product Description
PLUS2 is built for HMI panels, kiosks, and self-service stations. The rugged metal housing withstands tough conditions, while the sealed front prevents contaminants from entering. It prints 58 mm-wide receipts at 203 DPI, up to 100 mm/s, offering clear text and graphics. Built-in paper-end and near-end sensors plus an optional auto cutter streamline maintenance, cutting downtime and boosting productivity.
Key Features
-
Flush Panel Design – Fits 92×92 mm cut-out for seamless mounting
-
IP54 Front Seal – Protection against dust and splashes
-
Thermal Printing – 203 DPI clarity at up to 100 mm/s
-
Dual Interfaces – USB 2.0 & RS-232 for versatile connectivity
-
Paper Sensors – End-of-paper and near-end detection
-
Optional Auto Cutter – Clean, precise receipt trimming
Specifications
-
Print Method: Thermal line printing
-
Resolution: 203 DPI
-
Speed: Up to 100 mm/s
-
Media Width: 58 mm
-
Panel Cut-Out: 92 × 92 mm
-
Interfaces: USB 2.0, RS-232
-
Power: 24 V DC, 1.5 A
-
Material: Sealed metal chassis with IP54-rated front
-
Dimensions: 92 × 92 × 85 mm (depth)
-
Weight: 1.0 kg
-
Operating Temp: 0–50 °C
Supported OS / Application / Industries
-
OS: Windows, Linux, Android
-
Applications: Industrial HMI logging, kiosk receipts, ticketing
-
Industries: Manufacturing, Utilities, Transportation, Self-service
Benefits & Compatibility
-
Seamless Fit: Standard cut-out and drivers for fast deployment
-
High Uptime: IP-rated front and metal housing resist harsh conditions
-
Low Maintenance: Sensors and optional cutter reduce service calls
-
Flexible Integration: USB and serial ports adapt to diverse systems
Purpose of Use
Ideal for:
-
Control-panel event logging
-
Factory-floor report printing
-
Access-control ticket dispensing
-
Kiosk and self-service terminals
How to Use
-
Create a 92×92 mm cut-out in the panel.
-
Insert printer and secure with mounting brackets.
-
Connect 24 V DC power and USB or RS-232 cable.
-
Install driver or use native HMI software support.
For integration tips, contact our team.
Packaging / Weight / Dimension
-
Box Includes: PLUS2 printer, mounting brackets, power cable, USB & RS-232 cables, quick-start guide
-
Packed Weight: 1.5 kg
-
Box Size: 120 × 120 × 110 mm
-
Protection: Foam inserts and sealed carton
Warranty and FAQs
FAQs:
-
Can I swap media without panel removal? Yes, front-load media design.
-
Does it support graphic logos? Yes, up to 203 DPI.
-
Is the auto cutter standard? Optional—order with part code AC-PLUS2.
More at our Support Center.
Performance, Quality, Durability & Reliability
Tested for 30 km of media and 500 k cutter cycles, PLUS2 meets IEC vibration and drop standards. Its sealed design delivers reliable 24/7 operation in dusty, humid environments.
Best Price Guarantee
Find a better UAE price? We’ll match it. Get top-tier performance without paying more.
Shop Today & Receive Your Delivery Across the UAE!
Next-day shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates. Secure checkout and real-time tracking included.
Request for Customer Reviews and Testimonials
Using PLUS2 in your operations? Share your insights to help peers optimize their setups. Submit Feedback.
After Sales Support
From setup to troubleshooting, our tech team is on call via email, phone or live chat. We’ve got your back post-purchase.
Get in Touch
Need panel-printer advice? Contact our print experts for tailored guidance and fast responses.
Stock Availability
Stocks update daily. For urgent orders, confirm availability before checkout. Bulk requests may need 10–15 business days.
Disclaimer
All details are for general info and may change without notice. Images are illustrative. Verify specs and pricing with our sales team before ordering.
