Engage users with the 27″ M1‑270IC‑AA2 Android touch PC. 10‑point P‑CAP, 4K clarity, built‑in scanner & RFID. Order now for UAE delivery!
Overview

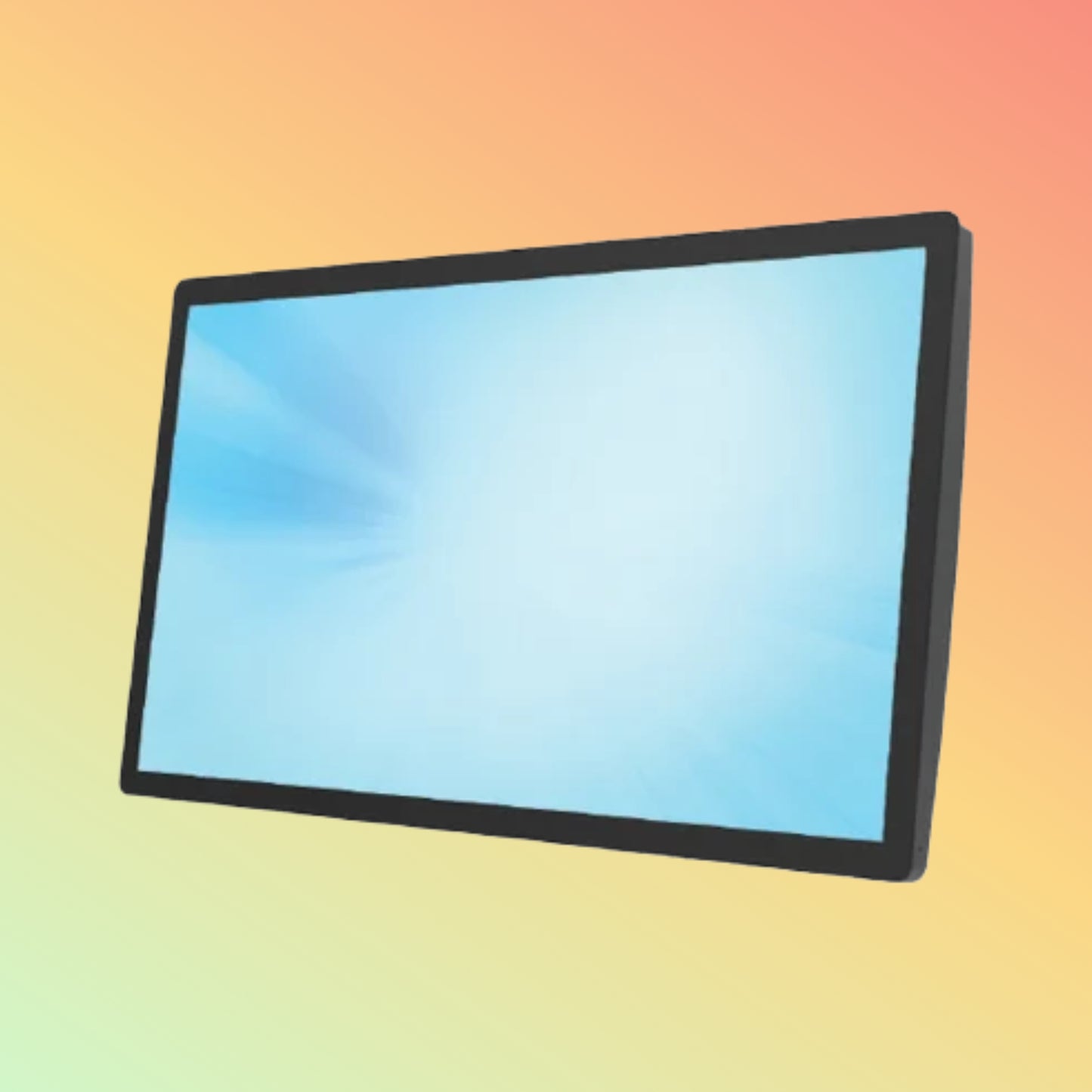

The MicroTouch M1‑270IC‑AA2 is a 27″ all‑in‑one Android touch computer built for performance and durability. Its MediaTek Genio 700 engine handles rich media and apps. A 10‑point projected‑capacitive sensor and anti‑glare, optically bonded glass deliver smooth, accurate touch. Smart peripherals—bar‑code scanner, MSR, RFID, camera—make it a turnkey solution for retail, kiosk or collaboration.
Product Description
Engineered with an 8‑bit FHD LED panel, the M1‑270IC‑AA2 runs Android 13 GMS on 8 GB RAM and 64 GB eMMC. Stylus, eraser or finger—every input is tracked flawlessly. A multi‑color LED status bar and 8 MP camera expand engagement. Its sleek housing combines plastic, glass and SECC metal. Front‑panel IP65 seal and IK07 rating ensure uptime in busy environments. Pop in external modules via the hub’s USB‑C ports.
Key Features
-
MediaTek Genio 700 (MT8390) CPU & Mali‑G57 MC3 GPU
-
Android 13 GMS on 8 GB RAM, 64 GB storage
-
27″ Full HD (1920×1080) LED panel, 1000:1 contrast
-
Projected‑capacitive touch, 10 simultaneous points
-
Optical bonding + etched anti‑glare glass for clarity
-
Built‑in peripherals: 2D scanner, 3‑track MSR, RFID reader, 8 MP camera, LED bar
-
I/O hub: 1×USB 3.0, 6×USB‑C (PD in/out + data), HDMI, LAN, audio I/O
-
Power: 12 V DC (60 W/90 W) + USB‑C PD support
-
Rugged front: IP65, IK07, 7H hardness
Specifications
| Category |
Details |
| Processor |
MediaTek Genio 700 (MT8390), Mali‑G57 MC3 GPU |
| Memory & Storage |
8 GB LPDDR4, 64 GB eMMC |
| OS |
Android 13 GMS |
| Display |
27″ TFT FHD (1920×1080), 8‑bit, 1000:1 contrast |
| Brightness |
500 nits (no touch), 450 nits (P‑CAP) |
| Touch |
Projected‑capacitive, 10 points, USB‑HID |
| Glass |
Optical bonding + etched anti‑glare, 7H hardness |
| Video I/O |
1×HDMI (1080 @60 Hz) |
| USB I/O |
1×USB 3.0 Type‑A; 1×USB‑C (PD in, USB 2.0); |
|
1×USB‑C (PD out, USB 2.0); 4×USB‑C (peripherals) |
| LAN |
1×RJ45 Gigabit |
| Audio |
3.5 mm line out/in, SPDIF |
| Peripherals |
2D scanner, MSR, RFID reader, 8 MP camera, LED bar |
| Power |
12 V DC (60 W/90 W), USB‑C PD |
| Protection |
IP65 front, IK07 |
| Construction |
Glass, plastic, SECC metal |
| Dimensions |
640.7×384.7×37 mm (W×H×D) |
| Weight |
8.4 kg net, 10.2 kg gross |
| VESA |
100×100 mm |
| Warranty |
3 years |
Supported OS / Application / Industries
-
OS Support: Android 13 GMS (native apps & MDM)
-
Applications: Self‑service kiosks, point‑of‑sale, digital signage, healthcare terminals
-
Industries: Retail, hospitality, healthcare, education, corporate, industrial
Benefits & Compatibility
-
All‑in‑One Design cuts cabling and clutter
-
High‑Performance CPU runs multiple apps seamlessly
-
Rich I/O Hub integrates scanners, MSR, RFID & camera
-
Rugged Front for harsh, high‑traffic zones
-
Anti‑Glare + Optical Bonding excels in bright light
-
Scalable Deployment with NEOTECH Digital Players
Purpose of Use
Deploy the M1‑270IC‑AA2 wherever interactive computing and transactions converge. Ideal for ticketing, self‑checkouts, wayfinding, telehealth and collaborative workstations.
How to Use
-
Mount via 100×100 mm VESA bracket.
-
Connect 12 V DC power and network.
-
Plug in USB‑C hub devices or external peripherals.
-
Boot into Android 13 and install your apps.
-
Calibrate touch if needed via settings.
Packaging / Weight / Dimensions
-
Includes: AIO touch PC, power adapter, HDMI & USB cables, VESA kit, quick‑start guide
-
Net Weight: 8.4 kg
-
Gross Weight: 10.2 kg
-
Carton Size: 762×517×174 mm
Warranty & FAQs
Warranty: 3 years comprehensive
FAQ:
-
Q: Can I update Android?
A: Yes—OTA updates supported.
-
Q: Does the scanner work offline?
A: Yes, logs store locally via USB‑C optional modules.
-
Q: Is the camera infrared?
A: No; it’s 8 MP RGB for video calls or images.
Performance, Quality, Durability & Reliability
Built with industrial MediaTek silicon and rugged SECC metal, it endures 0–40 °C and 20–80 % RH. IP65 front and IK07 impact resistance ensure long life in busy settings.
Best Price Guarantee
NEOTECH UAE offers the lowest price on the M1‑270IC‑AA2. Found a lower rate? We’ll match it and credit 5 % back to your account.
Shop Today & Receive Your Delivery Across the UAE
Order now for express shipping to Dubai, Abu Dhabi, Sharjah and beyond. In‑stock units ship same‑day from our UAE warehouse.
Request for Customer Reviews and Testimonials
Rolled this AIO into your project? Share your success story to guide peers. Featured testimonials earn special recognition.
After Sales Support
NEOTECH’s UAE support team provides integration help, firmware updates and spare‑part sourcing. Reach us by phone, email or live chat.
Get in Touch
Need custom kiosk or AIO setups? Contact our solution architects for tailored advice and rapid response.
Stock Availability
In stock and ready to ship
Limited quantities—reserve your M1‑270IC‑AA2 today to avoid backorder delays.
Disclaimer
All trademarks and brand names are property of their respective owners. Specifications subject to change without notice. Images for illustrative purposes only.
