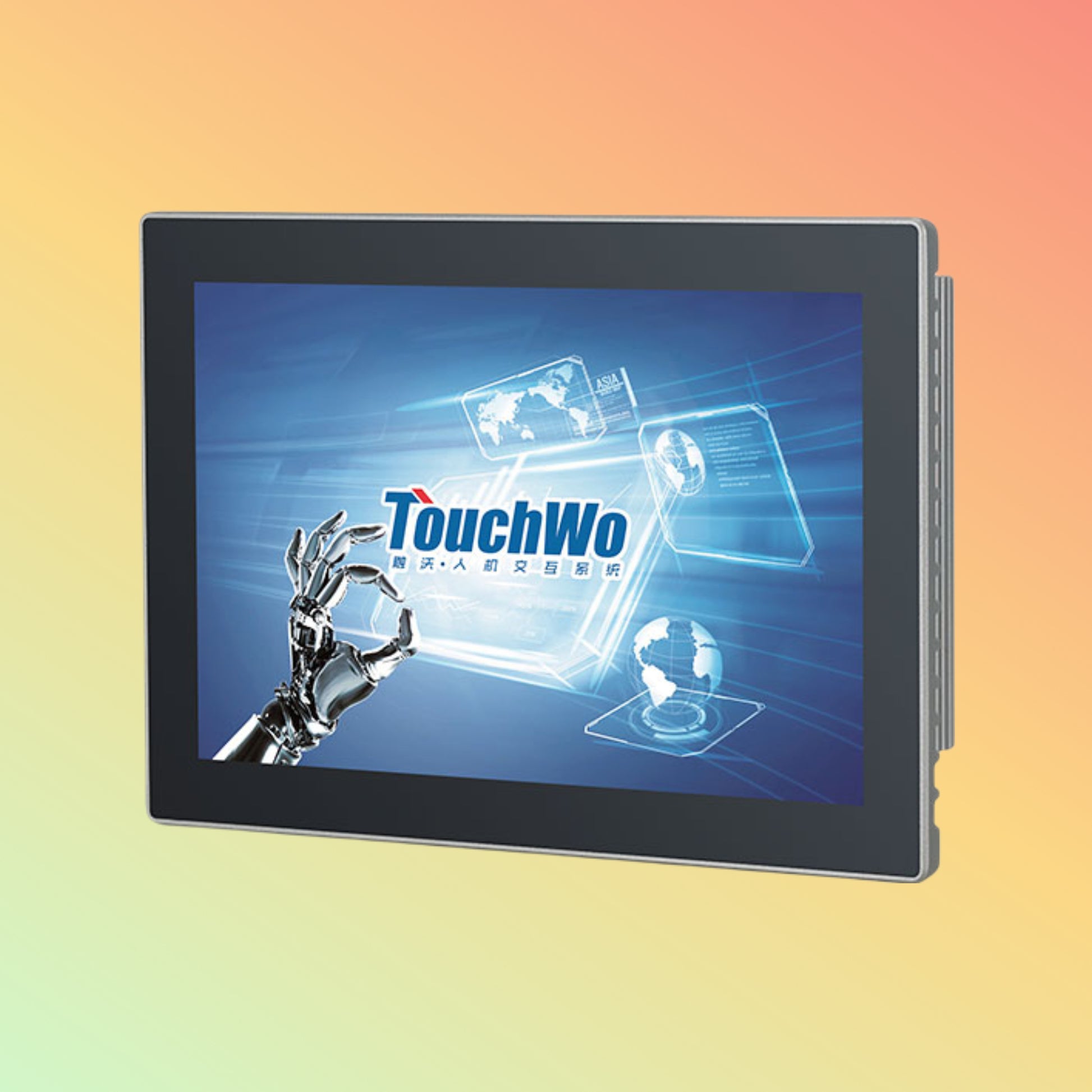

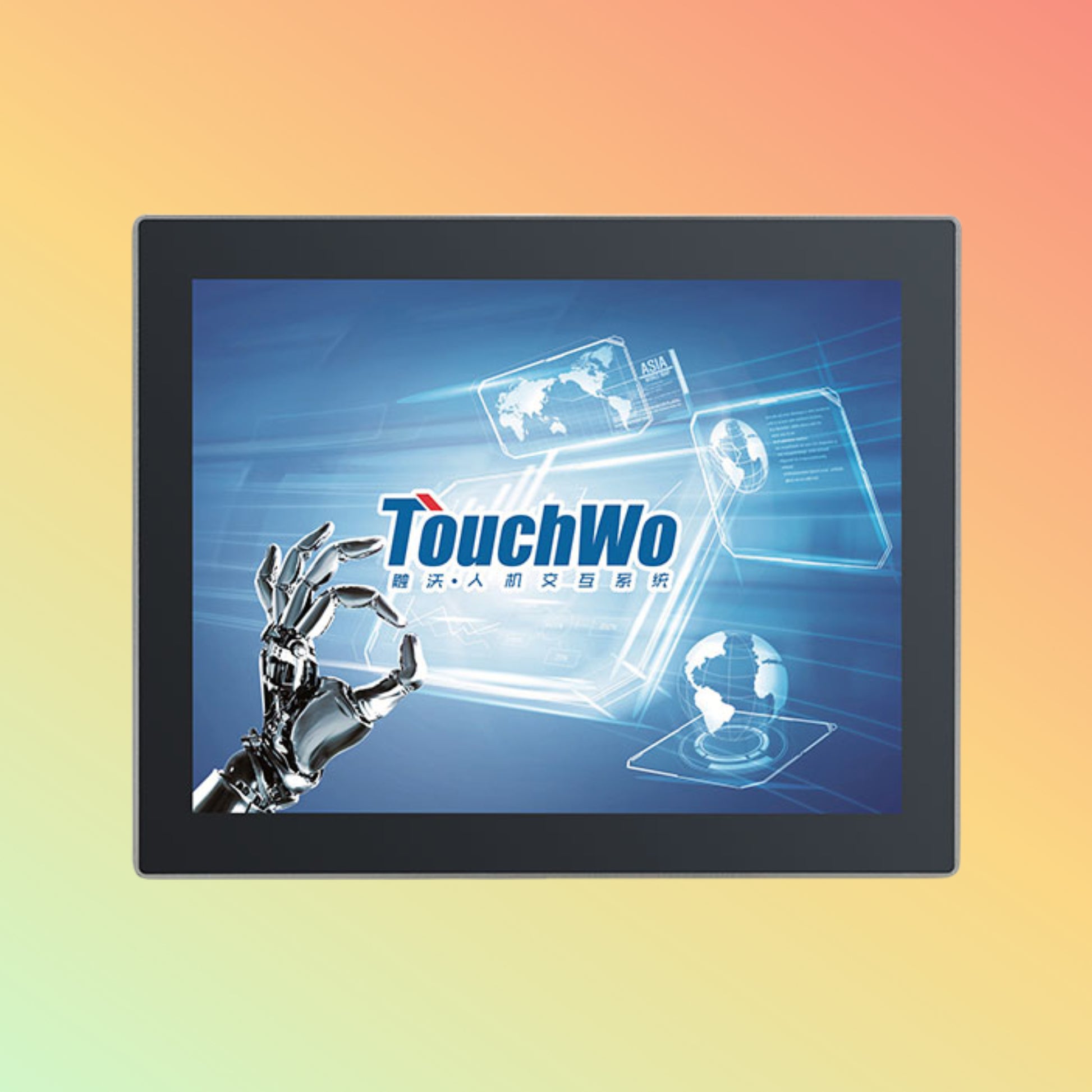

TouchWo 8″ Industrial Touch Monitor DM080WG

Rugged 8″ Touch Monitor (DM080WG+) by TouchWo. IP-rated, fanless, and ideal for automation, kiosks, HMI, and embedded control in harsh environments.

✅ Overview

The TouchWo DM080WG+ 8″ Industrial Touch Monitor delivers reliable, industrial-grade touch performance in a compact, rugged design. With IP65-rated protection and a fanless aluminum body, it's engineered for demanding environments like factory automation, smart kiosks, and control panels.

✅ Product Description

The DM080WG+ combines a vibrant 8-inch high-brightness display with capacitive 10-point touch technology, offering fast, accurate interaction. The monitor supports 24/7 operation in challenging industrial and commercial spaces. It features a sealed, IP65-rated front panel for protection against dust, oil, and splashes, and integrates easily with control systems via HDMI, VGA, and USB inputs.

Built for embedded use, the DM080WG+ supports VESA and flush mounting, and is fully plug-and-play compatible with Windows, Linux, and Android systems—making it a go-to solution for space-conscious, rugged applications.

✅ Key Features

• 📱 8″ TFT LCD capacitive touchscreen (10-point)

• 💡 High-brightness display (350–400 cd/m²)

• 🧱 IP65-rated front panel (dust/splash-proof)

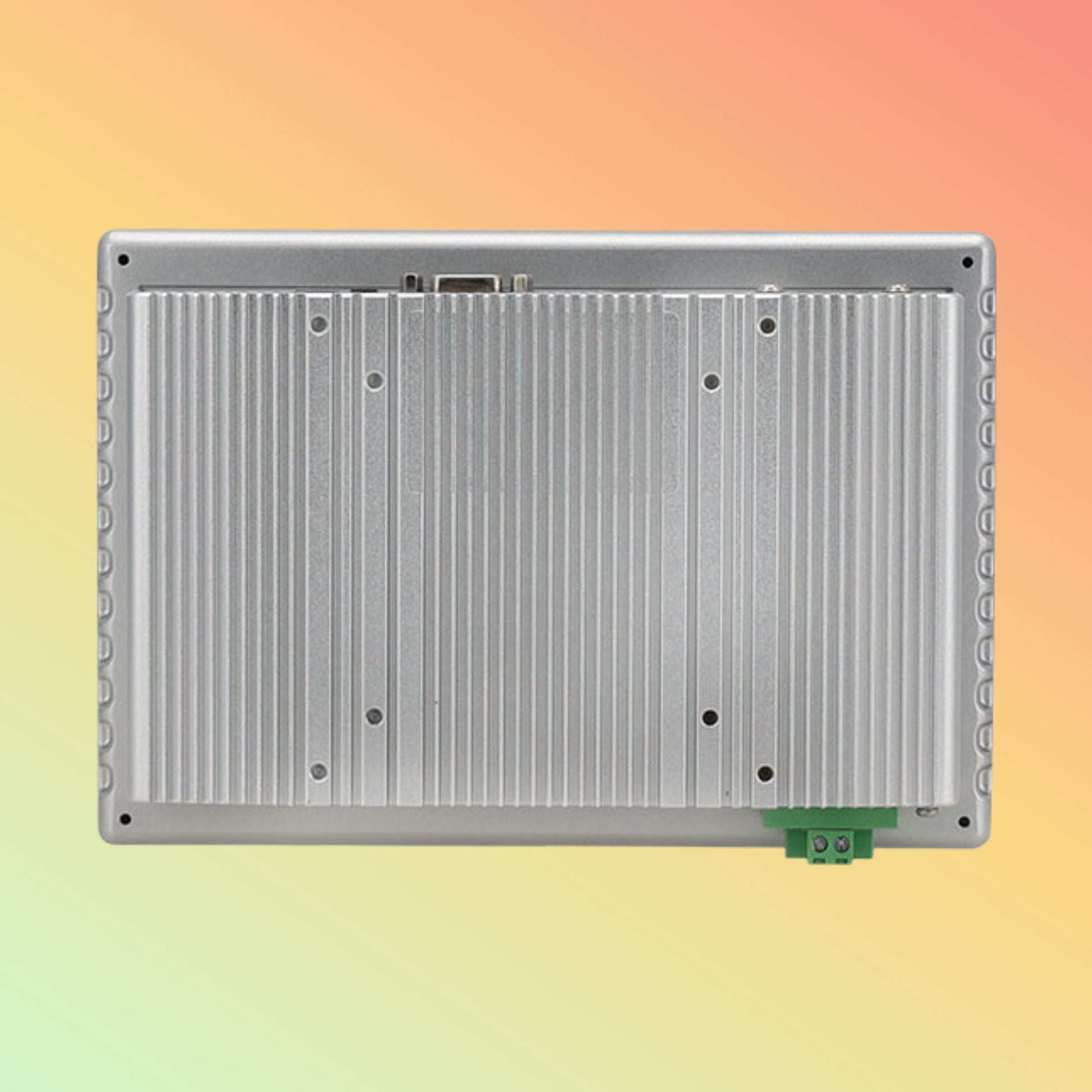

• 🔇 Fanless aluminum enclosure for silent, long-term use

• 🔌 Inputs: HDMI, VGA, USB (touch), Audio-in

• ⚙️ OS Compatibility: Windows, Linux, Android (Plug & Play)

• 🛠️ Mounting: VESA 75x75, embedded flush-mount, or stand

• 🌡️ Operating Temp: -10°C to +60°C

✅ Specifications

• Screen Size: 8 inches

• Resolution: 1024 × 768 (4:3)

• Touch Input: Capacitive, 10-point multi-touch

• Brightness: 350–400 nits

• Contrast Ratio: 800:1

• Viewing Angle: 160° H / 140° V

• Response Time: <5ms

• Input Ports: HDMI, VGA, USB (touch), Audio-in

• Power Input: 12V DC / 2A

• Material: Aluminum alloy (anodized, black)

• Mounting Options: VESA 75x75, flush-mount frame

• Dimensions: ~215 × 170 × 40 mm

• Weight: ~1.6 kg

✅ Supported OS / Applications / Industries

• Operating Systems: Windows 7/10/11, Linux, Android

• Applications: HMI panels, POS systems, industrial kiosks, vending machines, automation terminals

• Industries: Manufacturing, smart retail, logistics, energy, healthcare, public infrastructure

✅ Benefits & Compatibility

• 💡 Bright, glare-resistant touch interface for indoor or semi-outdoor use

• 💧 IP-rated for exposure to dust and moisture

• 🧠 Easy integration with embedded PCs, mini PCs, and SBCs (e.g., Raspberry Pi, Jetson)

• 🔧 Multiple mounting options for versatile installation

• 🔋 Low power consumption with 24/7 performance

✅ Purpose of Use

Perfect for space-constrained setups like compact kiosks, embedded automation terminals, and factory floor control systems, the DM080WG+ offers smooth interaction and dependable performance under harsh operating conditions.

✅ How to Use

1. Mount using VESA or embedded frame

2. Connect HDMI or VGA for video signal

3. Plug USB for touch input

4. Power with 12V adapter

5. Use instantly—OS auto-recognizes touch input

✅ Packaging / Weight / Dimensions

• Included: Monitor, 12V power adapter, HDMI + USB cables, user manual

• Net Weight: ~1.6 kg

• Box Size: ~25 × 22 × 10 cm

• Protection: Anti-static, foam-lined, industrial-grade packaging

✅ Warranty and FAQs

• Warranty: 12-month standard warranty

• Returns: Supported via NEOTECH’s RMA policy

• Support: Setup and OS integration help via email or phone

• FAQs: Access NEOTECH Support for driver setup, calibration, and mounting tips

✅ Performance, Quality, Durability, and Reliability

Tested for continuous uptime in rugged installations, the DM080WG+ provides industrial reliability, smooth touch input, and quiet operation. Its high-quality construction ensures durability across years of embedded or exposed use.

✅ Best Price Guarantee

We provide the best UAE price for industrial displays. If you find a lower rate, we’ll match it and include expert support.

✅ Shop Today & Receive Your Delivery Across the UAE!

NEOTECH ships across Dubai, Abu Dhabi, Sharjah, and all Emirates. Fast, secure delivery with full product support included.

✅ Request for Customer Reviews and Testimonials

Using the DM080WG+? Leave a review and help other engineers and integrators find the ideal compact touchscreen solution.

✅ After Sales Support

From mounting options to OS compatibility—we’re here for full pre- and post-sale support. Count on NEOTECH for expert guidance.

✅ Get in Touch

Need help picking the right model or mounting format? Contact our team today for custom recommendations or bulk pricing.

✅ Stock Availability

Stock is fast-moving—please contact us to confirm availability for urgent or large-volume projects.

✅ Disclaimer

Specifications and images may be updated without notice. Always confirm product compatibility with our sales or support team.
