Rugged IP65 fanless panel PC—10″,12″,15″ capacitive touch, Intel® CPU, Windows/Linux, zero-maintenance. Built for CNC automation and wash-down zones.
Overview

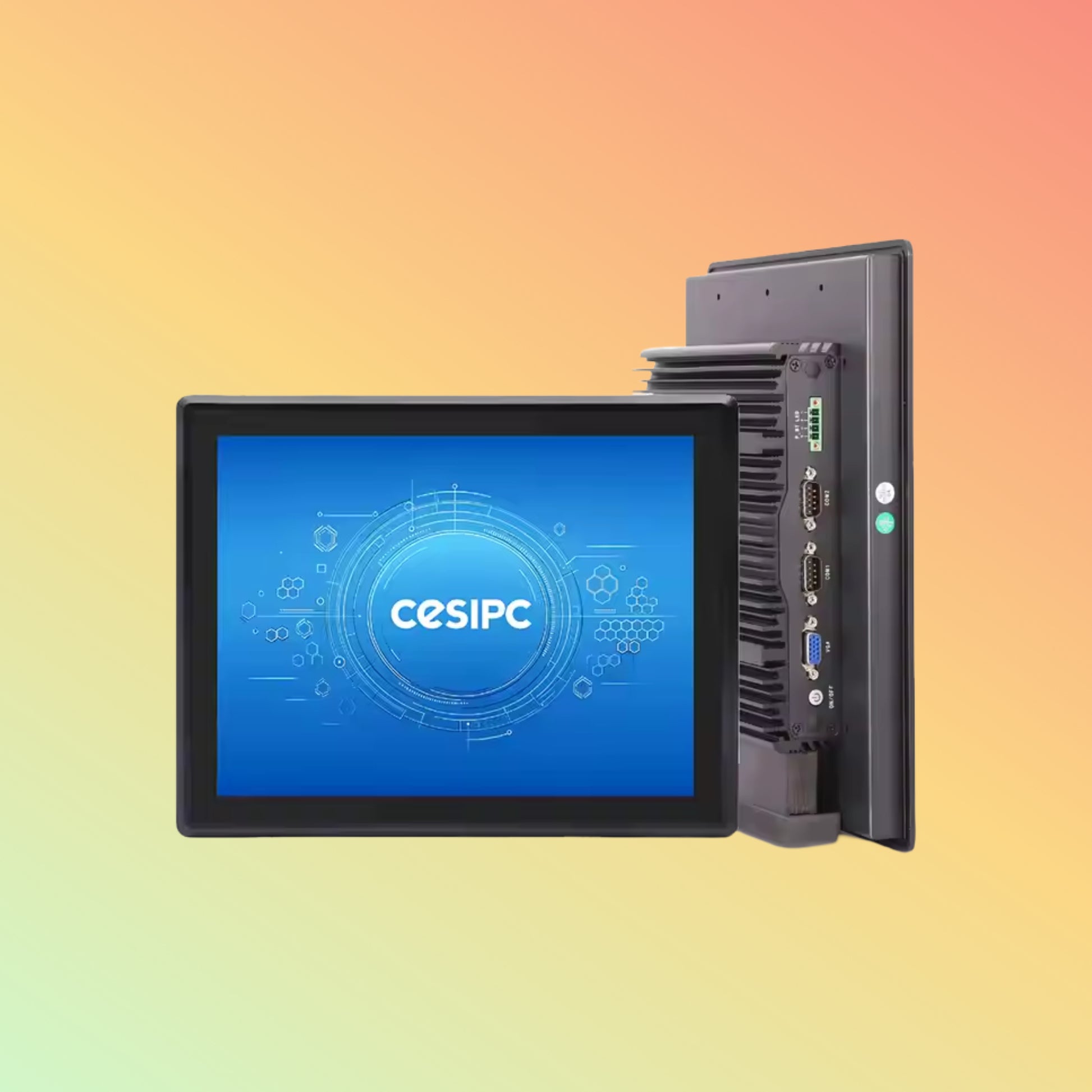

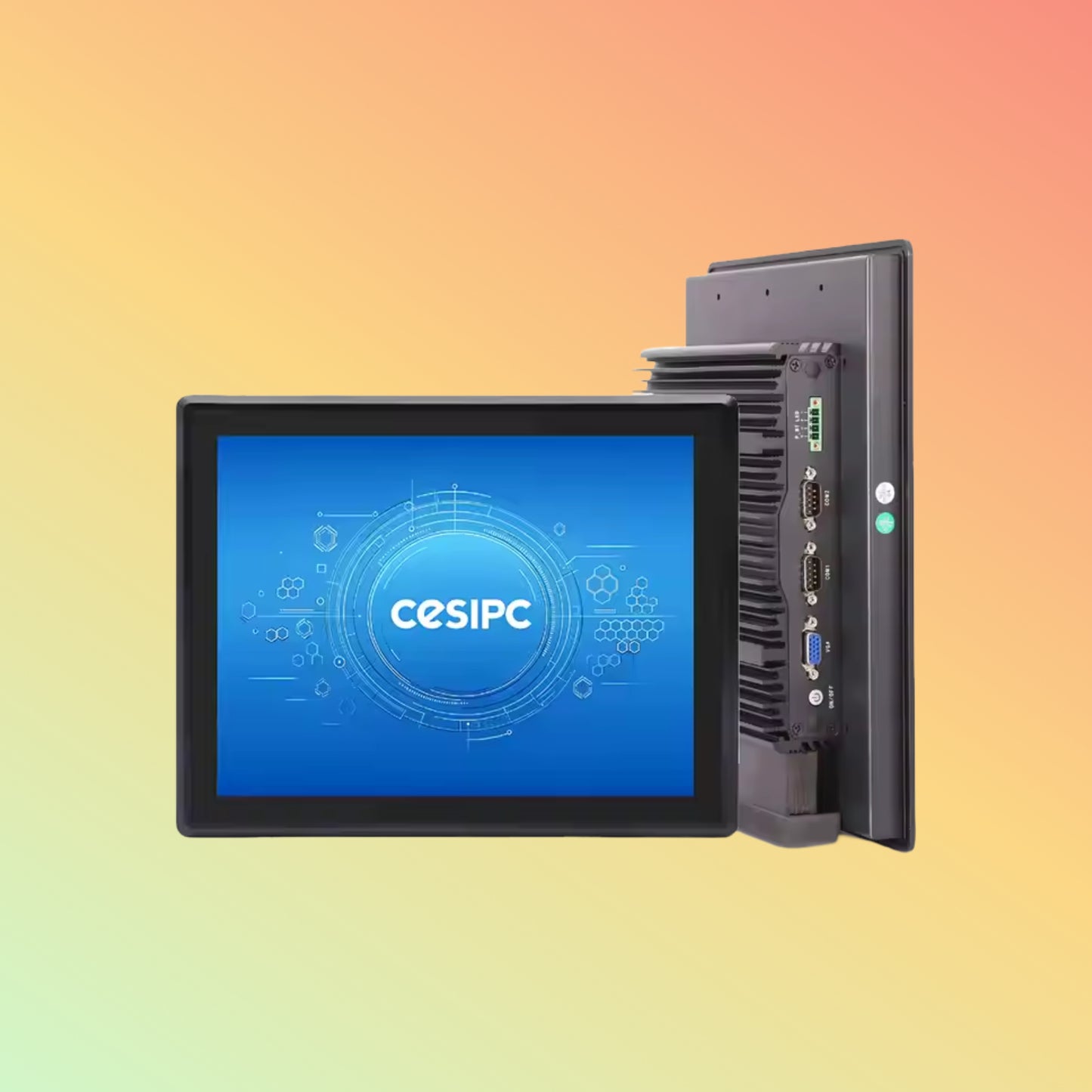

CESIPC’s IP65 Fanless CNC Panel PC brings high-precision HMI to machine tools, wash-down cells, and automation lines. Available in 10″, 12″ or 15″ capacitive-touch, its sealed, fan-free aluminum chassis runs Windows 10/11 IoT or Linux, delivering reliable, maintenance-free operation in dusty, wet, or vibration-intense environments.
Product Description
Powered by Intel® Celeron® J6412 (4 cores @ 1.5 GHz) or optional Core™ i3/i5 CPUs, this all-in-one PC packs 4–16 GB DDR4 and 64–512 GB NVMe SSD. The 10″–15″ PCAP touchscreen supports glove use. IP65-rated front and full-body sealing repel dust and water jets. Rich I/O includes M12-sealed USB 3.0, GbE LAN, RS-232/485, HDMI, plus Wi-Fi 5 and Bluetooth 5.0. Passive cooling ensures truly silent 24/7 uptime from –10 °C to +60 °C on 9–36 V DC with surge/reverse-polarity protection.
Key Features
-
10″/12″/15″ PCAP Touch: glove-compatible, multi-touch
-
IP65 Fanless Chassis: wash-down & dust-proof, zero maintenance
-
CPU Options: J6412 (1.5 GHz), Core™ i3, or i5-class performance
-
Memory & Storage: 4–16 GB DDR4; 64–512 GB NVMe SSD
-
M12-Sealed I/O: USB 3.0, GbE LAN, RS-232/485, HDMI output
-
Wireless: Wi-Fi 5 (802.11ac) & Bluetooth 5.0
-
Passive Cooling: silent operation, no moving parts
-
Wide-Voltage Input: 9–36 V DC w/ surge & reverse-polarity protection
-
Mounting: panel-cut & VESA 75×75 mm brackets
Specifications
| Feature |
Details |
| Display Sizes |
10″/1280×800, 12″/1280×800, 15″/1920×1080 IPS PCAP |
| Touch |
Multi-touch PCAP (glove-compatible) |
| CPU |
Intel® Celeron® J6412; optional Core™ i3/i5 |
| Memory |
4 GB standard, up to 16 GB DDR4 |
| Storage |
64–512 GB M.2 NVMe SSD |
| I/O Ports |
2× USB 3.0, 1× GbE LAN, 1× RS-232/485, 1× HDMI |
| Wireless |
Wi-Fi 5 (802.11ac); Bluetooth 5.0 |
| Power Input |
9–36 V DC w/ surge & reverse-polarity protection |
| Protection |
IP65 front & full-body sealing |
| Operating Temp |
–10 °C to +60 °C |
| Mounting |
Panel-cut & VESA 75×75 mm brackets |
| Dimensions |
10″: 278×186×55 mm; 12″: 310×210×60 mm; 15″: 380×250×60 mm |
| Weight |
~2.2 kg (10″); ~2.8 kg (12″); ~4.5 kg (15″) |
Supported OS / Applications / Industries
-
OS: Windows 10/11 IoT, Linux (Ubuntu/Debian)
-
Applications: CNC HMI, SCADA, machine control, wash-down stations
-
Industries: Manufacturing, food & beverage, automotive, robotics
Benefits & Compatibility
-
Zero-Maintenance: fanless avoids clogging & failures
-
Wash-Down Rated: IP65 seals tolerate jets of water
-
Glove-Operable: precise PCAP touch under PPE
-
CNC-Ready I/O: serial ports and HDMI for legacy & modern devices
-
Flexible Mounting: panel or VESA, fits standard cutouts
Purpose of Use
Designed as the operator interface on CNC mills, lathes, wash-down conveyors, and robotic work cells—delivering sealed, high-visibility touch control where uptime matters.
How to Use
-
Cut panel opening per supplied template
-
Install with clamp brackets or VESA mount
-
Wire 9–36 V DC, network, USB/serial, and HDMI display
-
Boot into Windows IoT or Linux; deploy your CNC/HMI software
-
Clean front with low-pressure water spray—no fans to service
Warranty & FAQs
Warranty: 1 year standard; extensions up to 3 years available.
FAQs:
After-Sales Support
24/7 remote diagnostics, firmware updates, and optional on-site service keep your CNC lines running.
Get in Touch
Questions or custom configs? Email sales@neotech.ae for expert assistance.
Disclaimer
All specifications subject to change without notice. Images are illustrative—verify details with our sales team prior to deployment.
