Overview

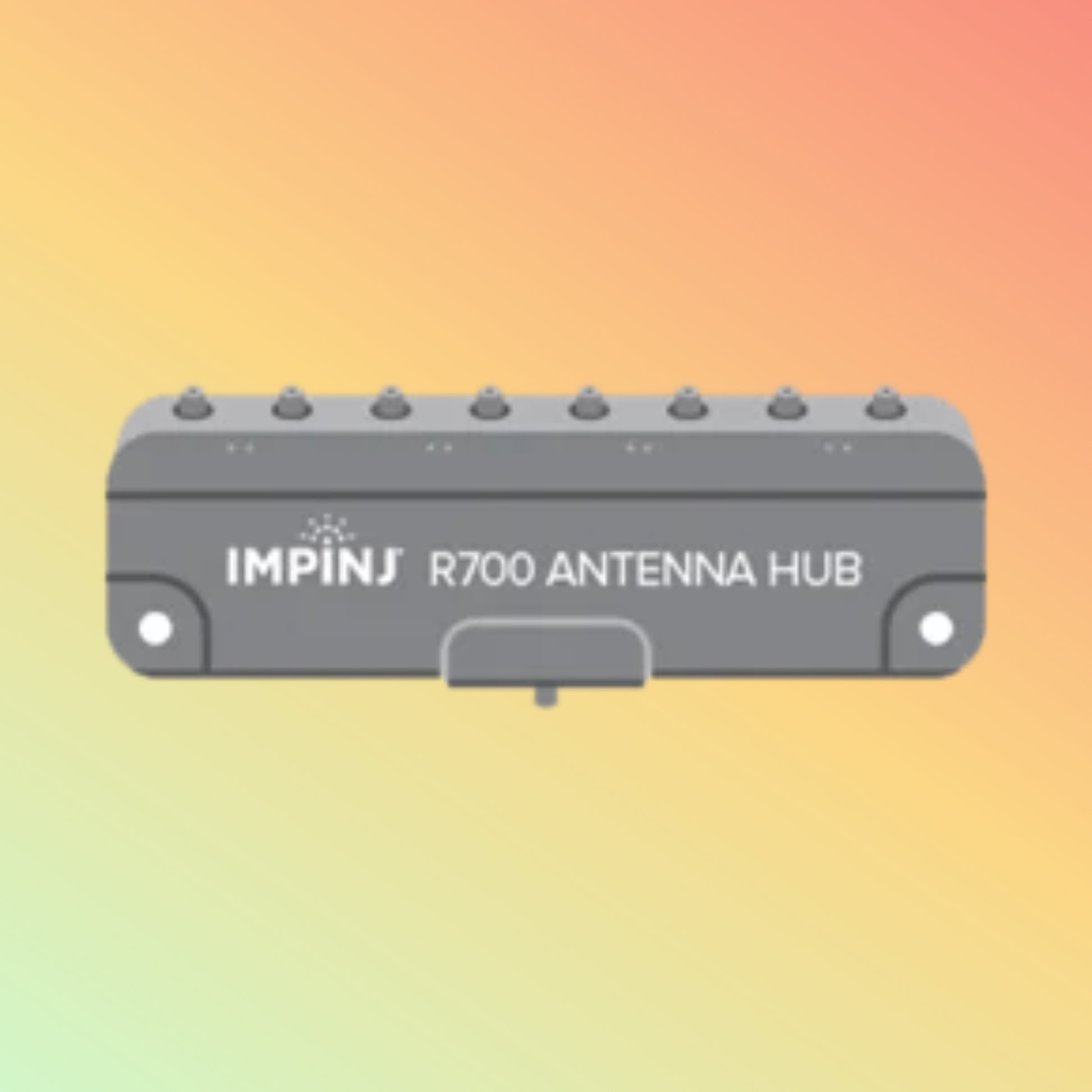

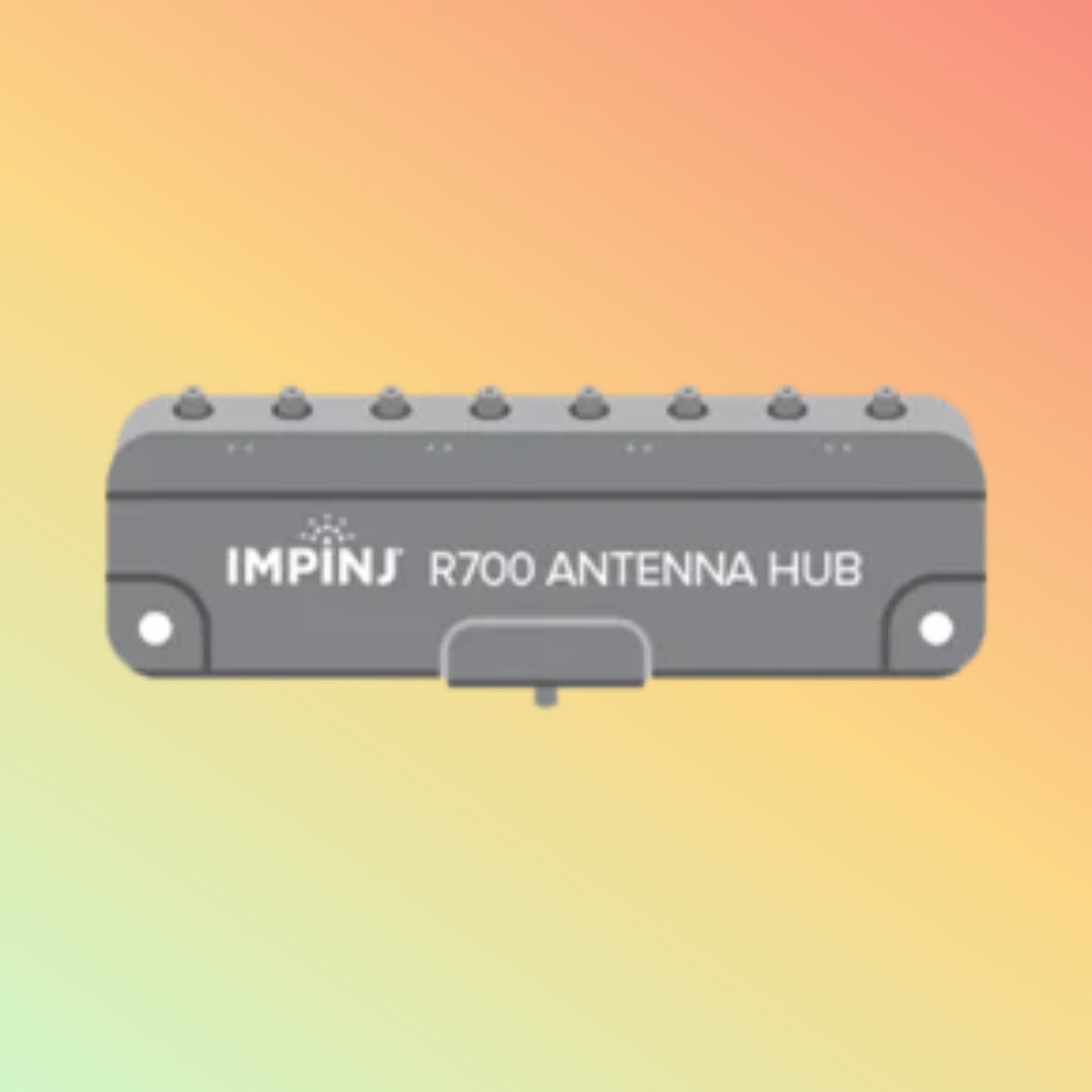

The Impinj R700 Antenna Hub IPJ‑A6010‑000 centralizes power and data for up to eight Gen2 RFID antennas, simplifying cabling and installation. Designed for enterprise‑scale environments, it delivers reliable 48 V PoE+ per port, integrated surge protection, and seamless integration with Speedway R700 readers.
Product Description
This compact 1U rack‑mount hub reduces eight separate power runs into a single PoE+ uplink from your R700 reader or PoE switch. It supplies up to 30 W per antenna port, supports 10/100 Mbps links, and features built‑in surge and ESD protection to maximize uptime. LED status indicators provide real‑time port health feedback. Ideal for warehouses, distribution centers, retail floors, and manufacturing lines, the IPJ‑A6010‑000 accelerates deployment and lowers installation costs.
Key Features
-
Eight 10/100 Mbps PoE+ antenna ports (48 V, up to 30 W each)
-
Single Gigabit uplink for reader or PoE switch connectivity
-
Integrated surge and ESD protection per port
-
LED indicators for PoE status, link/activity, and fault
-
1U rack‑mount chassis with optional wall‑mount brackets
-
Plug‑and‑play integration with Impinj R700 readers
-
Reduces cabling complexity by centralizing antenna power
Specifications
| Feature |
Details |
| Antenna Ports |
8× RJ‑45, 10/100 Mbps PoE+ (48 V, 30 W) |
| Uplink Port |
1× RJ‑45 Gigabit Ethernet |
| PoE Standard |
IEEE 802.3at (PoE+) |
| Total PoE Budget |
240 W (30 W × 8 ports) |
| Protection |
Surge and ESD protection per port |
| Indicators |
Per‑port LEDs: Power, Link/Activity, Fault |
| Mounting |
1U rack mount; optional wall brackets |
| Dimensions (W×D×H) |
440 × 200 × 44 mm |
| Weight |
2.1 kg |
| Operating Temp |
–20 °C to 50 °C |
| Management |
Plug‑and‑play via reader or PoE switch |
Supported Readers / Applications / Industries
Integration
Applications
-
High‑density item‑level tagging
-
Automated inventory and asset tracking
-
Retail anti‑theft and stock accuracy
-
Supply‑chain visibility and dock‑door tracking
Industries
Benefits & Compatibility
-
Centralized Power: Single PoE+ feed powers eight antennas—no separate injectors needed.
-
Simplified Cabling: Reduces rack clutter and installation time by up to 75 %.
-
Enhanced Reliability: Built‑in surge protection safeguards antennas and readers.
-
Rapid Deployment: Plug‑and‑play design works out‑of‑the‑box with Speedway readers.
-
Scalable Architecture: Easily add hubs as your RFID footprint grows.
Purpose of Use
Ideal for deployments where multiple RFID antennas surround a dock door, conveyor line, or retail display. The IPJ‑A6010‑000 streamlines both new installations and expansions of existing Impinj R700 networks.
How to Use
-
Mount the hub in a standard 19″ rack or on a wall.
-
Connect the Gigabit uplink to your R700 reader’s PoE+ port or PoE switch.
-
Attach up to eight Gen2 RFID antennas to the PoE+ ports.
-
Power on the reader; the hub auto‑negotiates PoE and data links.
-
Verify LED indicators for port health and activity.
Packaging / Weight / Dimensions
Warranty & FAQs
Warranty
– 3‑Year NEOTECH hardware warranty. Extended support plans available.
FAQs
Q: Is a separate PoE injector required?
A: No. The hub draws PoE+ from your reader or PoE switch.
Q: Can I mix antenna models on ports?
A: Yes; supports any Impinj Gen2‑compliant antennas up to 30 W.
Q: How do I monitor port status?
A: LED indicators provide real‑time power and link feedback.
Performance, Quality, Durability & Reliability
Constructed for continuous operation in industrial settings, the IPJ‑A6010‑000 features robust metal housing, active thermal design, and protective circuitry to ensure error‑free performance under load.
