Best 3 Tracks Magnetic Head Module F2F(FM) Decoding Magcard Reading Module MH090G

MH090G magnetic stripe reader module supports F2F decoding for ISO 7811 cards. Compact, reliable & perfect for kiosks, ATMs, POS terminals & access.

✅ Overview

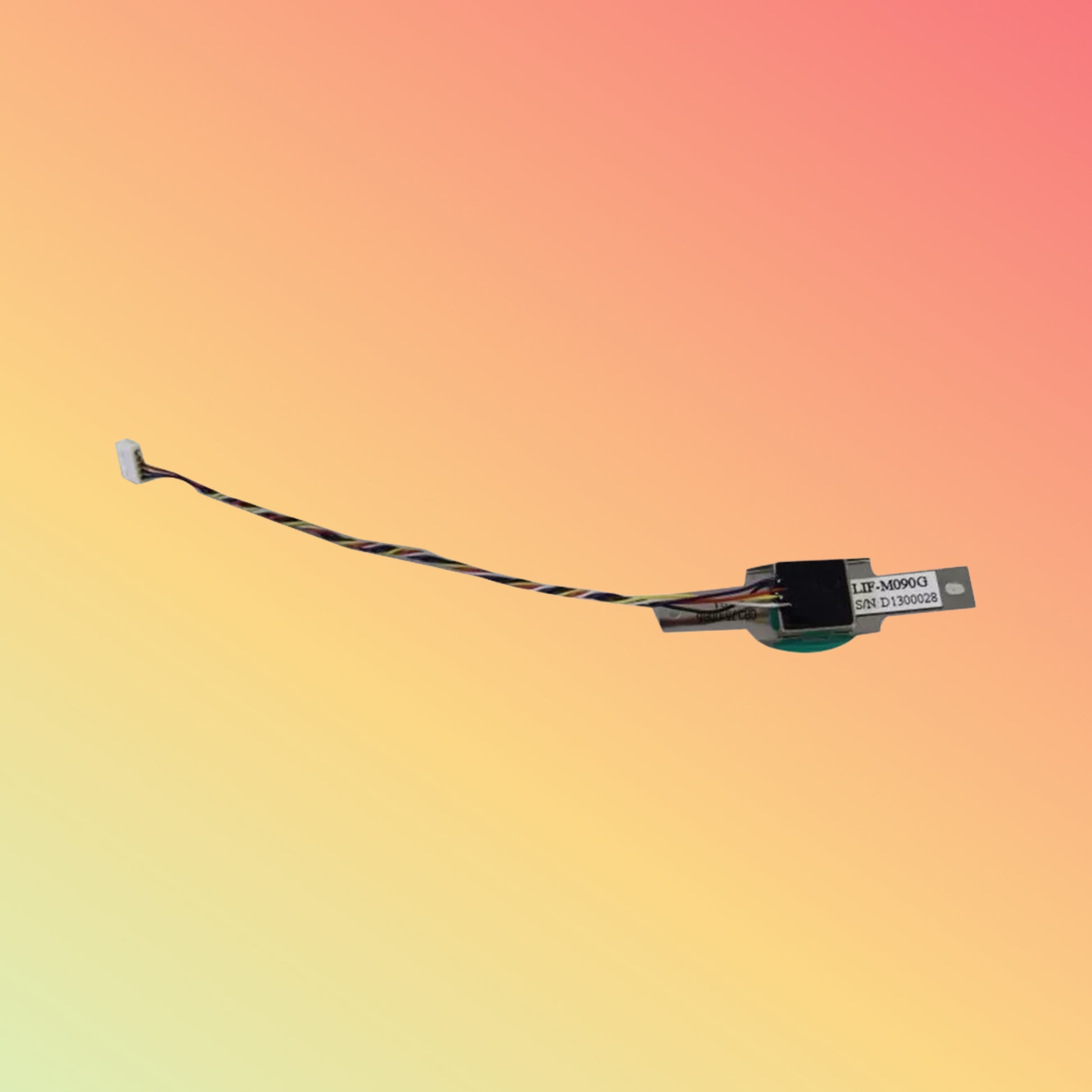

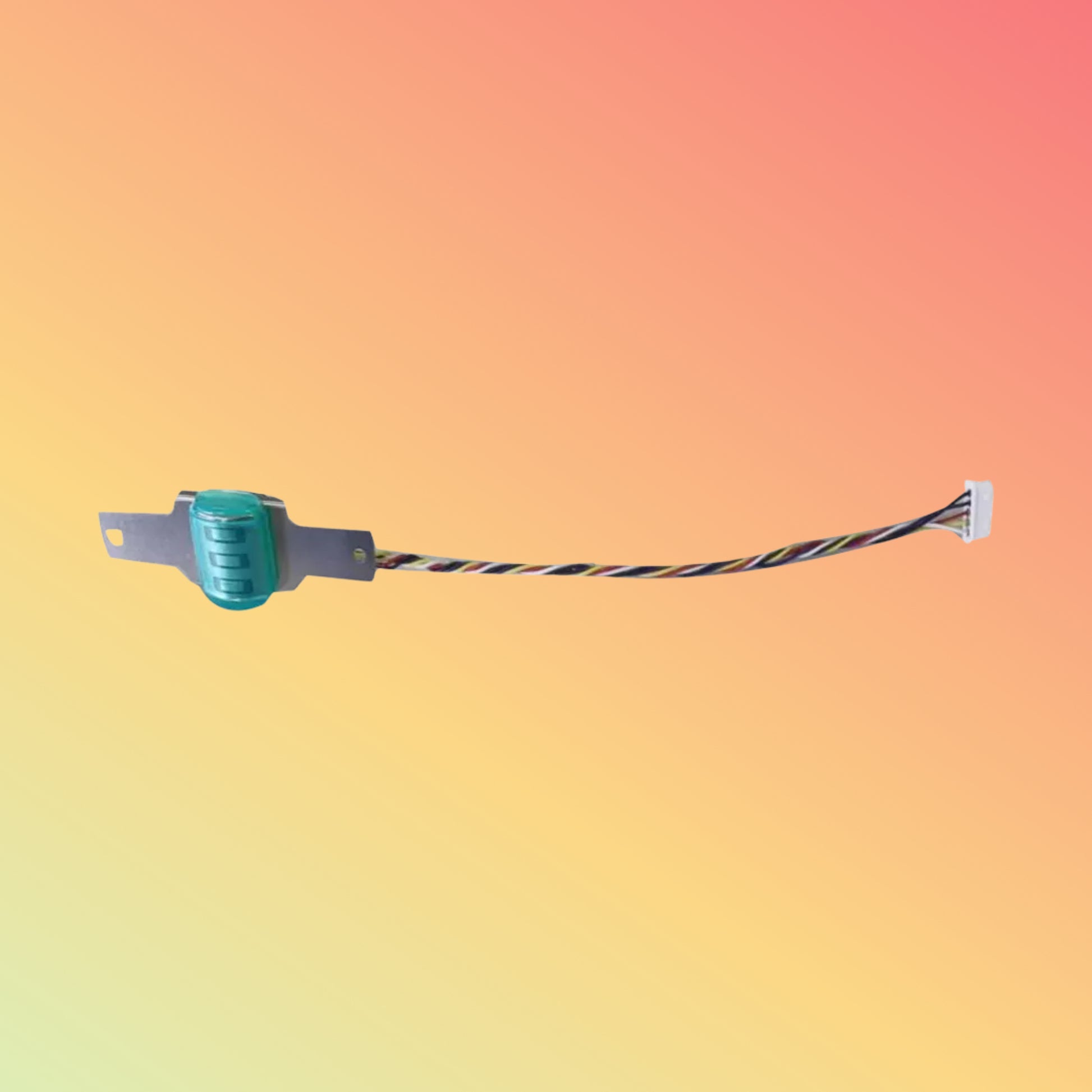

The MH090G Magnetic Head Module is a compact 3-track magstripe card reader that supports F2F (FM) decoding, offering high accuracy and ISO 7811 compatibility. Ideal for integration into POS systems, ATMs, kiosks, and access terminals, this module delivers stable, real-time magnetic stripe reading for secure data access.

✅ Product Description

The NEOTECH MH090G is a high-precision 3-track magnetic stripe reader head module that decodes magnetic data using F2F (Frequency Modulation) technology. Designed for OEM developers and system integrators, this unit is compact, power-efficient, and engineered for seamless integration into financial terminals, parking systems, card dispensers, and access control devices.

Compliant with ISO 7811 / AAMVA standards, it supports Track 1, 2, and 3 decoding with low error rates and strong anti-interference capabilities. Its robust construction ensures long-term durability and consistent performance in demanding environments.

✅ Key Features

• Reads magnetic cards with Track 1, 2 & 3

• Supports F2F (FM) signal decoding

• Compact magnetic head module for embedded systems

• Compliant with ISO 7811, AAMVA magnetic stripe standards

• Ideal for low-power and compact device integration

• Strong anti-magnetic interference design

• High reliability and fast signal capture

✅ Specifications

• Model: MH090G

• Card Type: Magnetic stripe card

• Standards: ISO 7811 / AAMVA

• Tracks: 1, 2, 3

• Decoding Method: F2F (Frequency Modulation)

• Card Reading Speed: 10 ~ 150 cm/s

• Signal Output: Differential or single-ended

• Power Supply: 5V DC typical

• Life Span: > 500,000 card swipes

• Operating Temperature: -10°C to 60°C

• Storage Temp: -20°C to 80°C

• Size: Compact embedded module (customizable OEM size)

• Weight: Approx. 20g

✅ Supported OS / Applications / Industries

• OS Compatibility: System-agnostic (hardware-level integration)

• Applications: Kiosk terminals, POS, ticketing machines, door access, banking terminals

• Industries: Finance, transportation, retail, hospitality, government ID systems

✅ Benefits & Compatibility

• Easy to embed in custom systems

• Stable & accurate data decoding

• Low power draw and noise-resistant

• Supports encrypted magstripe cards

• Trusted for high-frequency usage environments

✅ Purpose of Use

Designed for secure card data reading in hardware-integrated systems such as kiosks, terminals, ATMs, and more. Ideal for OEM projects requiring ISO-compliant magstripe reading.

✅ How to Use

1. Integrate module into host system PCB

2. Connect signal lines to microcontroller or decoding circuit

3. Swipe card along the magnetic head

4. Host system processes decoded F2F data from the module

✅ Packaging / Weight / Dimension

• Package Includes: MH090G module, integration pinout diagram

• Weight: 20g

• Dimensions: Varies by build (OEM customizable)

✅ Warranty and FAQs

Warranty: 1-Year Manufacturer Warranty
FAQs:
Q: Can it read all 3 tracks at once?
A: Yes, if the host supports 3-track decoding.
Q: Is it waterproof?
A: No. It should be embedded inside a protective housing.

✅ Performance, Quality, Durability, and Reliability

The MH090G is crafted with precision-grade components and tested for over 500,000 cycles, making it highly durable for industrial and commercial use. It ensures consistent decoding with minimal maintenance.

✅ Best Price Guarantee

NEOTECH ensures competitive pricing in the UAE and abroad. Found a lower offer? We’re open to price matching for volume orders.

✅ Shop Today & Receive Your Delivery Across the UAE!

Fast shipping across Dubai, Sharjah, Abu Dhabi, and all Emirates. Order your module today and integrate next-gen access into your solution.

✅ Request for Customer Reviews and Testimonials

Already using the MH090G? Share your project feedback—we'd love to spotlight your integration success!

✅ After Sales Support

Full technical integration support available. Contact our team for setup documentation, signal format info, or firmware compatibility.

✅ Get in Touch

Need pinout specs or a sample unit for prototyping? Talk to NEOTECH and we’ll assist you right away.

✅ Stock Availability

This item is routinely stocked. For high-volume procurement, please confirm stock status before confirming your order.

✅ Disclaimer

All information is for reference. Specs may vary slightly depending on batch or OEM configuration. Always confirm critical dimensions before integration.
