Affordable Aztec Barcode Embedded 2D Barcode Reader Module HS-2003D

Compact 2D barcode reader module for Aztec, QR, and PDF417. Ideal for embedded OEM systems, kiosks, and smart terminals.

---

✅ Overview

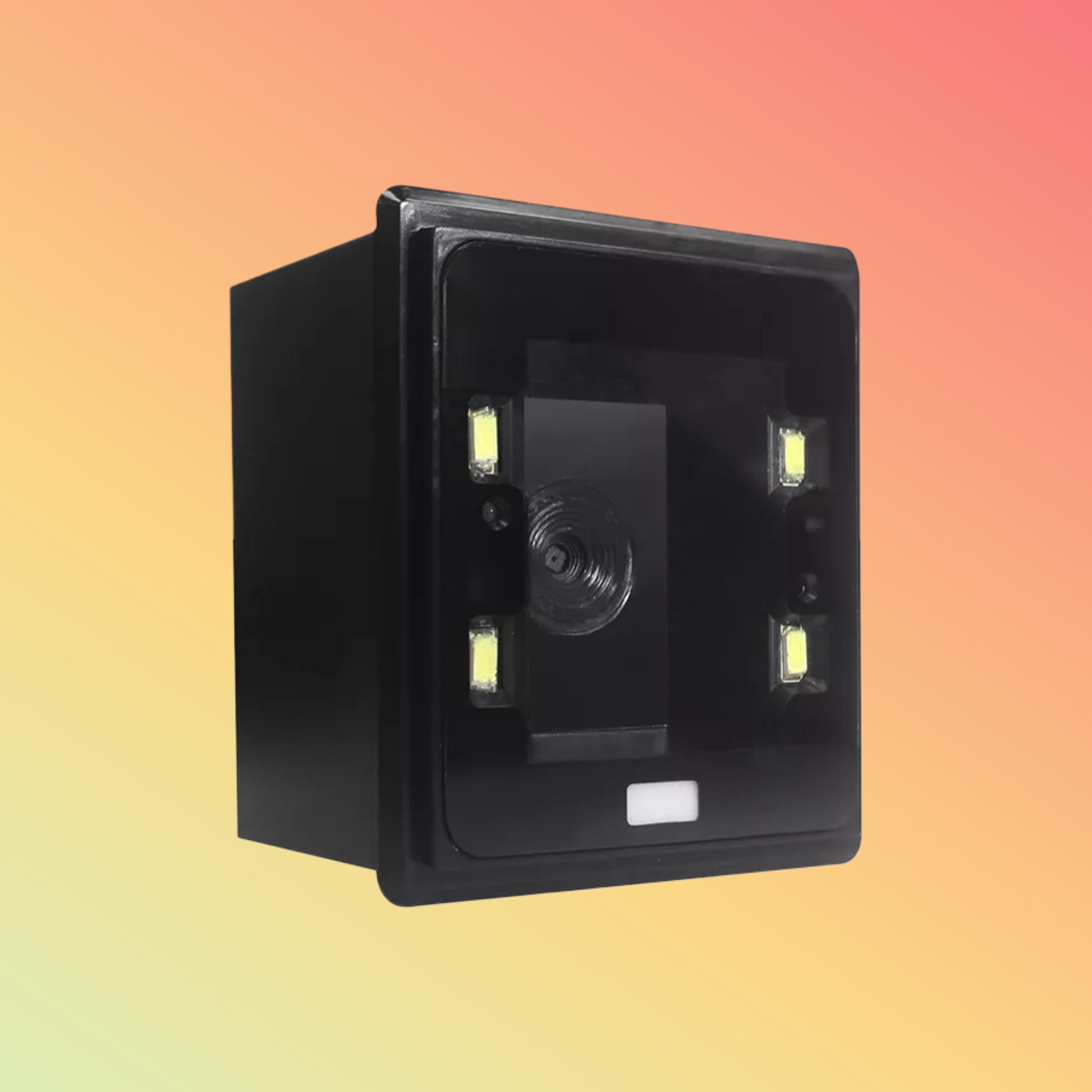

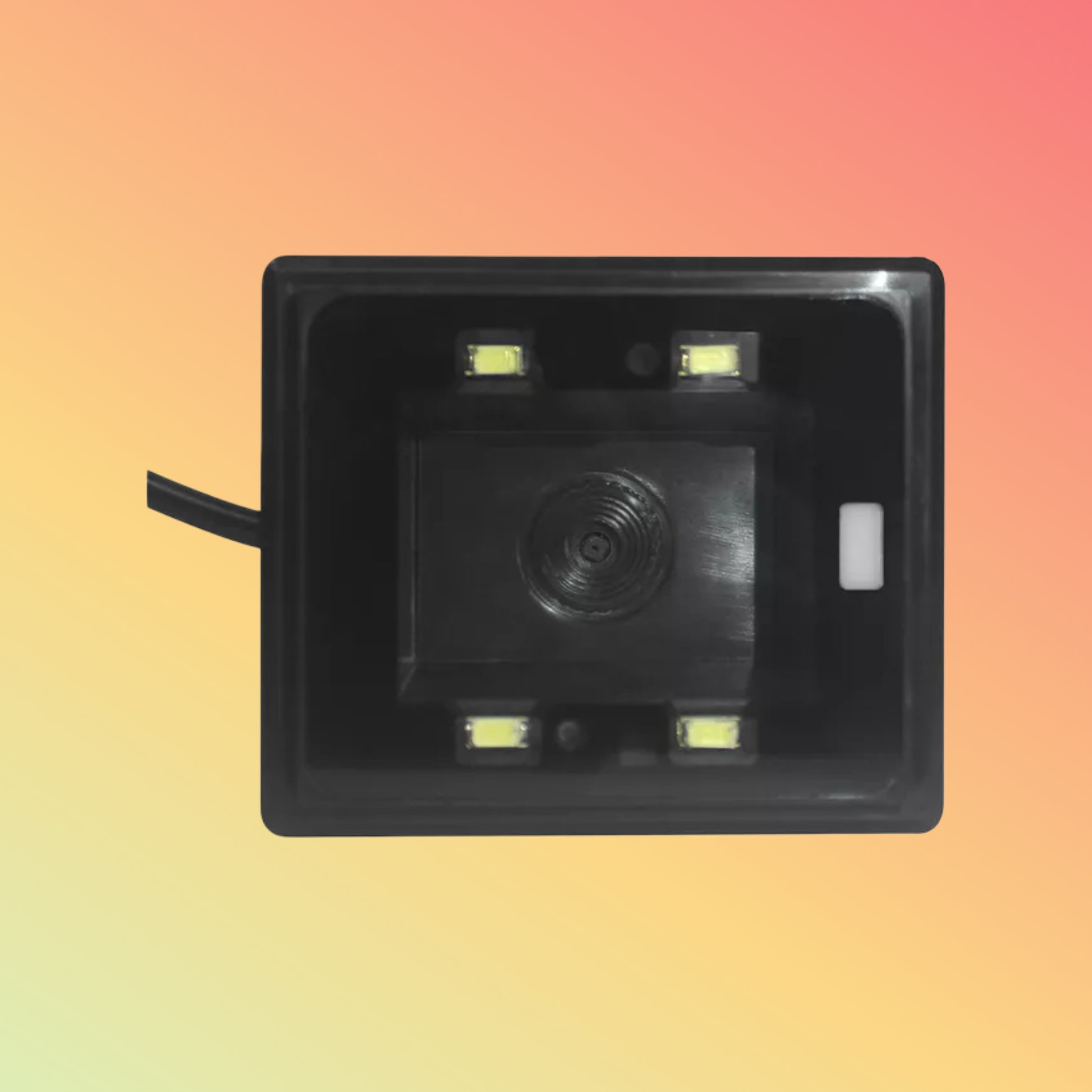

The NEOTECH HS-2003D Barcode Reader Module is a high-performance, compact 2D barcode scanning solution that supports Aztec, QR Code, PDF417, and more. Engineered for seamless OEM integration, it’s perfect for kiosks, turnstiles, ticketing systems, and embedded terminals.

---

✅ Product Description

The HS-2003D Embedded 2D Barcode Scanner Module delivers fast and accurate decoding for all major 2D barcodes, including Aztec, which is widely used in transportation, healthcare, and public access systems.

Designed for embedded use, this module features a compact housing, low power consumption, and high decoding accuracy. Its easy-to-integrate design supports TTL, USB, and RS232 interfaces, making it compatible with a wide variety of systems such as kiosks, vending machines, turnstiles, and more.

Whether reading barcodes from paper, screens, or reflective surfaces, the HS-2003D ensures high performance even under challenging lighting conditions.

---

✅ Key Features

• 📦 Embedded design for OEM and integration projects

• 🔄 Supports Aztec, QR Code, PDF417, DataMatrix, Code128

• 💡 Reads from mobile screens, paper, and low-contrast surfaces

• ⚙️ TTL, USB, and RS232 interface options

• 🧠 High-speed decoding engine with auto-exposure

• 🔧 Easy installation in kiosks, gates, or payment terminals

• 🔋 Low power consumption, ideal for battery-powered systems

---

✅ Specifications

• Model: HS-2003D

• Sensor Type: CMOS

• Barcode Types: 2D (Aztec, QR, PDF417, DataMatrix), 1D (EAN-13, Code128, etc.)

• Interfaces: TTL / USB / RS232

• Scan Speed: Up to 300 scans/sec

• Reading Distance: 3cm – 15cm (depends on code size)

• Voltage: 3.3V–5V DC

• Power Consumption: ≤150mA

• Operating Temp: -20°C to 60°C

• Dimensions: ~25 × 22 × 15 mm

• Weight: ~20g

---

✅ Supported OS / Application / Industries

• Compatible Systems: Android, Windows, Linux (via USB/TTL)

• Applications:

  • Public transport ticketing

  • Smart kiosks and terminals

  • Healthcare systems

  • Vending machines

  • Access control gates

  • ID verification platforms

• Industries:

  • Transportation

  • Public Sector

  • Smart Retail

  • Hospitality

  • Automation

---

✅ Benefits & Compatibility

• Small size makes it ideal for compact devices

• Reads on-screen barcodes for mobile ticketing

• Interfaces easily with custom boards and embedded systems

• Stable under direct lighting and screen glare

• Excellent for Aztec-based ticket formats and ID scanning

---

✅ Purpose of Use

Built for high-accuracy barcode reading in space-constrained embedded applications, especially where Aztec codes are frequently used — including public transit systems, access terminals, and kiosk services.

---

✅ How to Use

1. Integrate the module into your device enclosure

2. Connect via TTL, USB, or RS232

3. Power with 3.3–5V supply

4. Aim code toward the module window

5. Data is decoded and output instantly to host device

---

✅ Packaging / Weight / Dimensions

• Module Size: ~25 × 22 × 15 mm

• Weight: ~20g

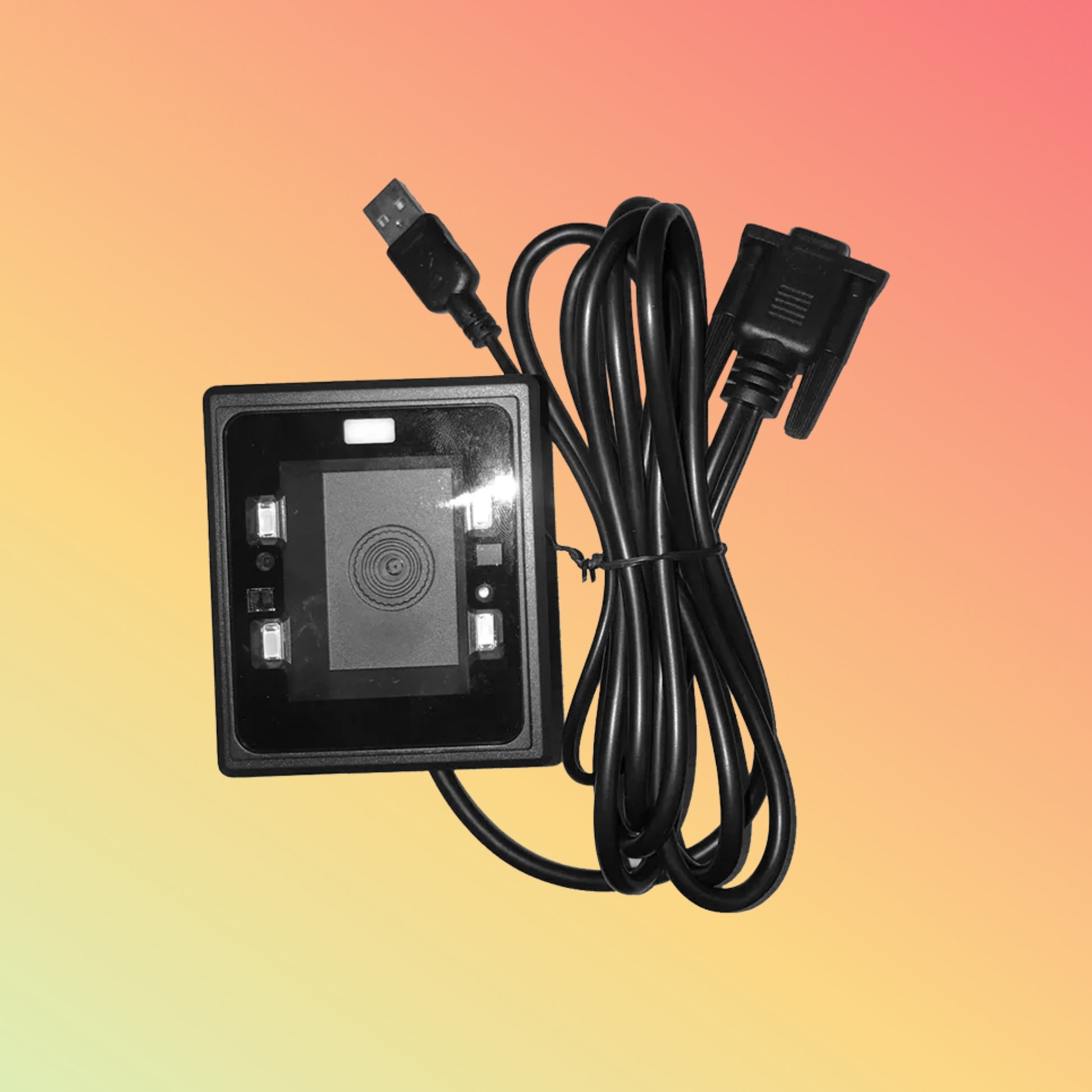

• Packaging Includes:

  • 1 x HS-2003D Module

  • Connection cable

  • User setup guide

• Packaging Type: Anti-static sealed pouch + shockproof box

---

✅ Warranty and FAQs

Warranty: 1-Year NEOTECH warranty
FAQs:

• Can it scan Aztec barcodes from smartphones?
  ✅ Yes, supports high-brightness screen decoding

• Is it programmable for custom commands?
  ✅ Yes, via SDK or serial command set

• Does it support continuous scanning?
  ✅ Yes, both trigger and auto-sensing modes supported

---

✅ Performance, Quality, Durability, and Reliability

Tested for 24/7 embedded use, the HS-2003D module ensures reliable decoding performance in mission-critical devices. Its CMOS sensor and auto-adaptive lighting make it resilient against ambient glare or poor printing quality.

---

✅ Best Price Guarantee

We guarantee the lowest price on embedded barcode reader modules in its class. If you find it cheaper, we’ll match it. High performance, low cost—only from NEOTECH.

---

✅ Shop Today & Receive Your Delivery Across the UAE!

Fast delivery to all UAE cities, including Dubai, Abu Dhabi, Sharjah, and beyond.
🚛 Buy now and simplify your system integration with this powerful barcode module.

---

✅ Request for Customer Reviews and Testimonials

Using the HS-2003D in your kiosk or POS system? Share your feedback to help others and earn loyalty points for verified testimonials.

---

✅ After Sales Support

Our technical team is ready to assist with SDKs, wiring, integration, and firmware support. We ensure your embedded deployment runs smoothly.

---

✅ Get in Touch

Need OEM pricing or custom firmware? Contact our support team through NEOTECH’s Contact Page

---

✅ Stock Availability

This item is in high demand for smart kiosk builds. Confirm availability for large deployments or recurring orders.

---

✅ Disclaimer

All specs are subject to change without notice. Images shown are for illustration. Confirm compatibility and details with our sales team before purchasing.
