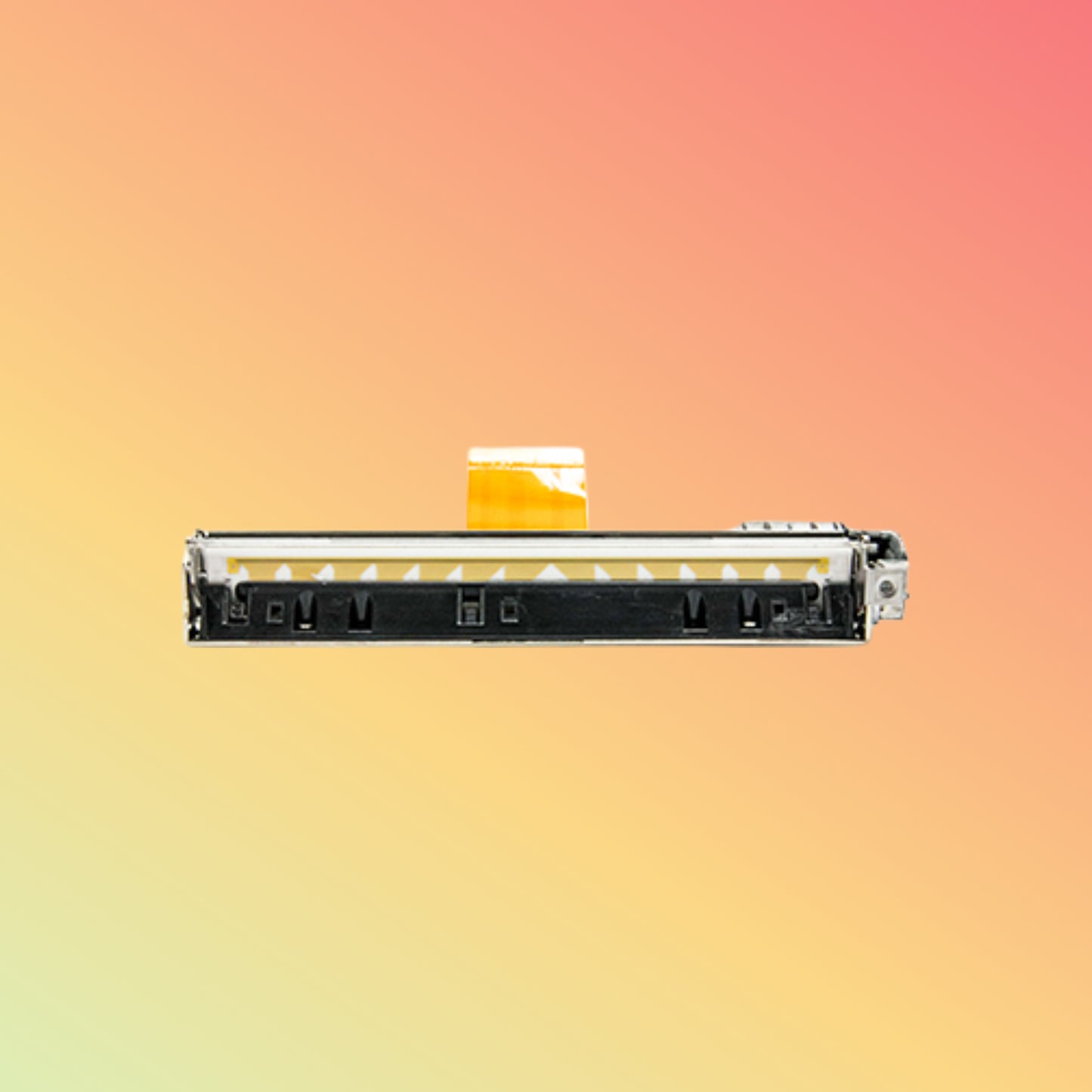

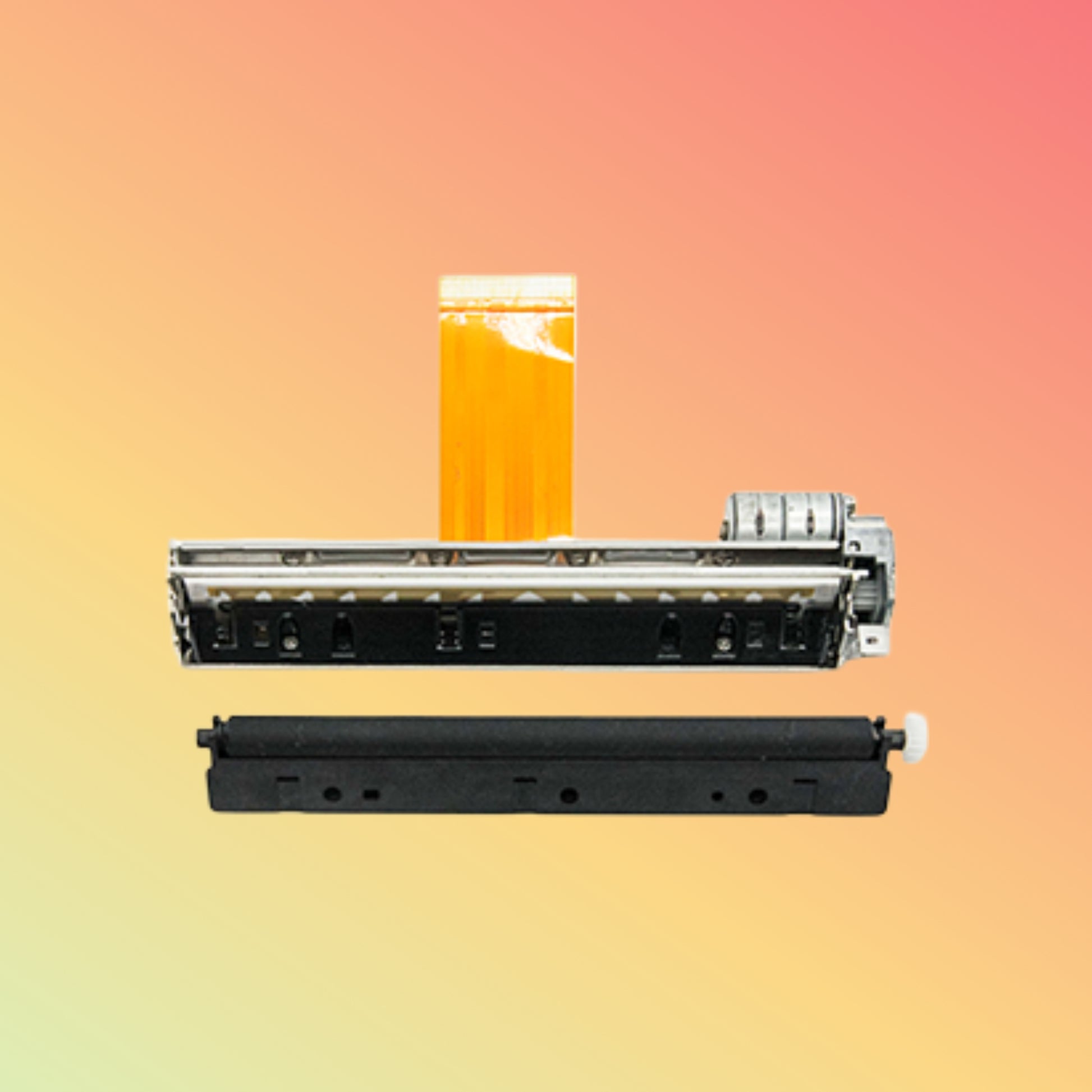

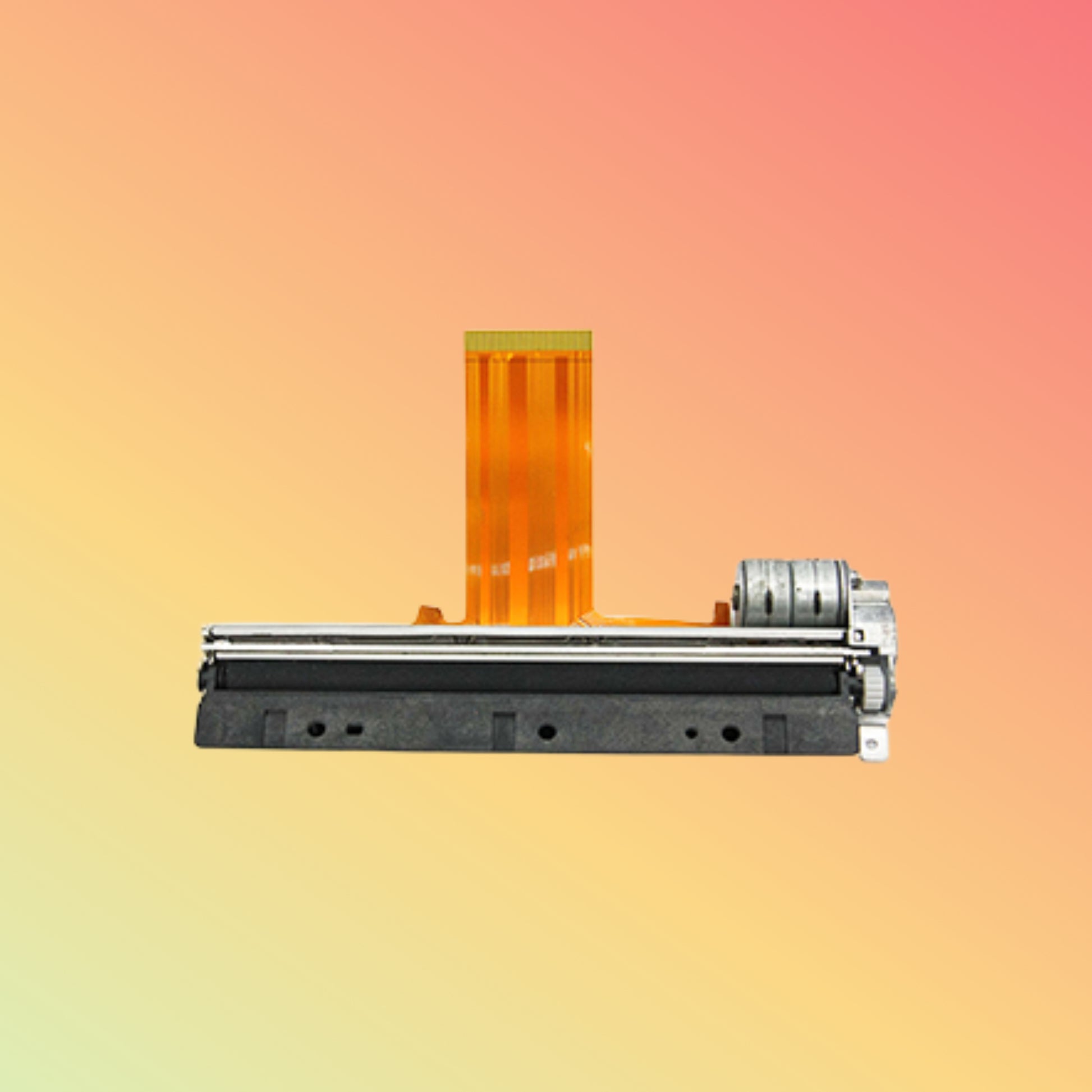

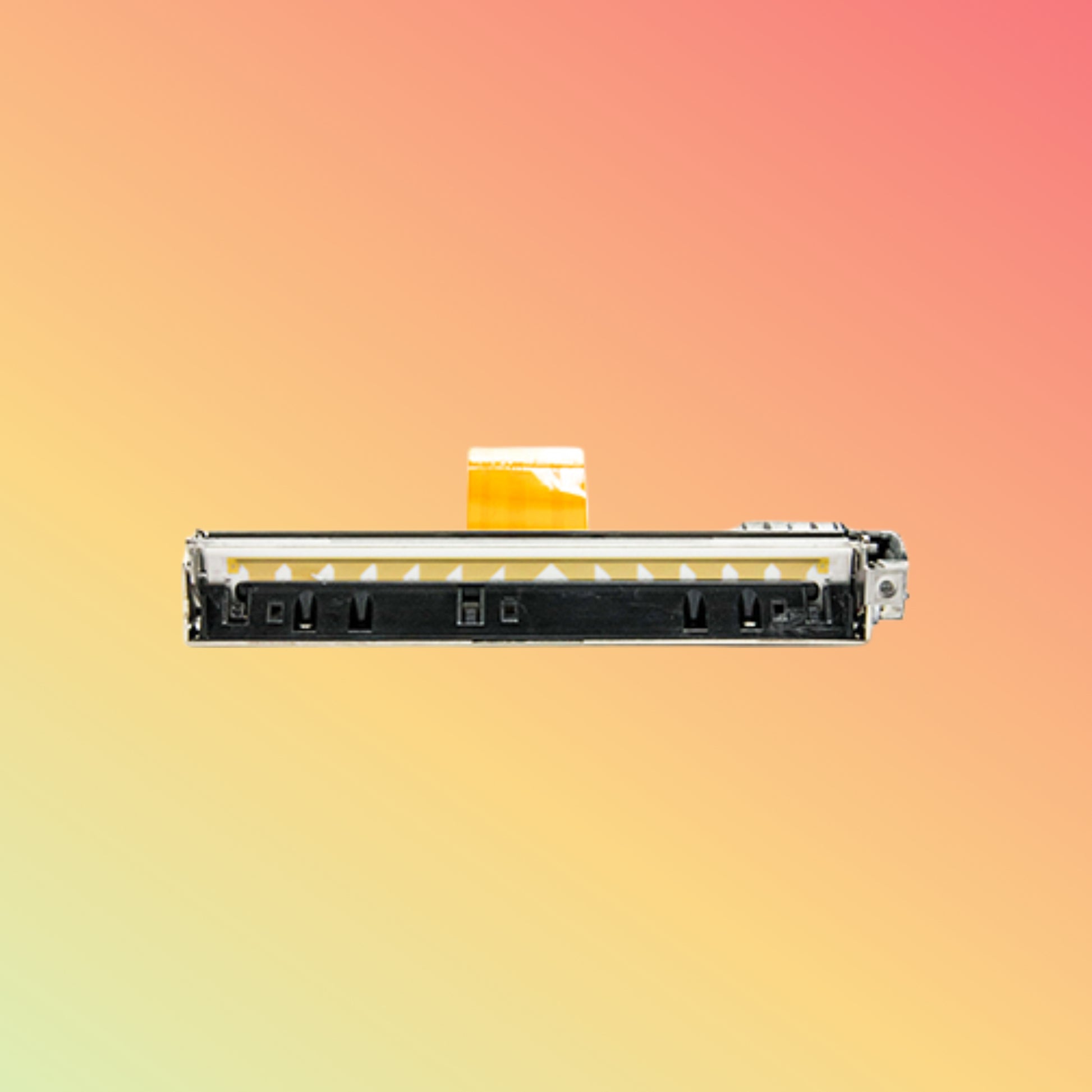

114mm Thermal Printer Mechanism-ATP401

ATP401 114 mm thermal mechanism—180 mm/s, 203 dpi, auto-cutter ready, jam-free. Shop at NEOTECH.

Overview

Upgrade high-volume print stations—kiosks, POS terminals, ticketing—with the ATP401. This direct-thermal engine handles 114 mm paper, prints at 180 mm/s, and delivers 203 dpi clarity. Integrated auto-cutter and jam-free paper path ensure 24/7 reliability.

Internal Link: Browse our full Thermal Printer Mechanisms lineup.
External Link: Learn about thermal printing standards on the IPC website.

Product Description

The ATP401 uses direct-thermal tech—no ribbons or ink. Load an 114 mm roll on a 12.7 mm core, connect via RS232, USB 2.0, or TTL, and print crisp tickets or labels in seconds. Its precision stepper motor and optimized feed path ensure smooth, consistent output, while the auto-cutter module delivers clean full or partial cuts on demand. Rated MTBF ≥ 30 000 hrs, it’s built for heavy-duty use.

Key Features

• 114 mm print width on 12.7 mm core

• 180 mm/s maximum print speed

• 203 dpi high-resolution thermal head

• Auto-cutter ready (full/partial cuts)

• RS232, USB 2.0 & TTL interfaces

• Jam-free paper path design

• Metal chassis for rugged durability

• MTBF ≥ 30 000 hrs reliability

Specifications

Supported OS / Applications / Industries

• OS: Windows, Linux, Android (via SDK)

• Apps: POS firmware, kiosk controllers, ticket printers

• Industries: Retail, Hospitality, Transportation, Vending, Ticketing

Benefits & Compatibility

• Plug-and-play via serial or USB

• Low maintenance: no ribbons & jam-resistant

• High uptime: sealed, industrial MTBF

• Clean cuts: professional ticket edges

• Large format: ideal for wider receipts & labels

Purpose of Use

Perfect for embedding in ATMs, self-service kiosks, ticket dispensers, and any system needing reliable 114 mm thermal output.

How to Use

1. Mount ATP401 in your device chassis

2. Connect RS232, USB, or TTL to host controller

3. Load a 114 mm thermal roll (12.7 mm core)

4. Attach optional auto-cutter module

5. Power on and send print commands via SDK

Packaging / Weight / Dimensions

• Includes: ATP401 mechanism, interface cables, mounting screws, user manual

• Unit size: 230 × 140 × 120 mm

• Unit weight: 1.6 kg

• Package weight: ~1.9 kg

Warranty & FAQs

• Warranty: 12 months limited

• FAQs:

  • Q: Which roll sizes fit?
    A: 114 mm rolls on 12.7 mm core.

  • Q: How to replace cutter blade?
    A: Snap-in blade design—see manual.

  • Q: Is it dust-resistant?
    A: Sealed path resists debris.

Performance, Quality, Durability & Reliability

Built with an industrial thermal head and sealed chassis, the ATP401 delivers consistent print density, jam-free operation, and long-life performance under heavy use.

Best Price Guarantee

Found a lower price on a similar mechanism? NEOTECH will match it—no hassle.

Shop Today & Delivery Across the UAE!

Order ATP401 now for express shipping to Dubai, Abu Dhabi, Sharjah, Ajman, and beyond. Track in real time.

Customer Reviews & Testimonials

Installed your ATP401? Drop a quick review on our site and help others choose smart.

After-Sales Support

Need integration tips or troubleshooting? Our UAE support team is a call or email away. If remote fixes don’t cut it, we’ll guide you through an easy RMA.

Get in Touch

For bulk quotes, custom firmware, or SDK access, contact our sales team for samples, demos, and pro advice.

Stock Availability

Confirm live inventory with our sales team before ordering—lead times may vary for cutter-enabled units.

Disclaimer

Specs, pricing, and availability subject to change without notice. Images are illustrative; actual mechanism may vary. Verify details with NEOTECH before purchase.
