2U rack: dual Xeon CPUs, 22×3.5″ bays, 8 NVMe, 32 DDR4 slots (2 TB), PCIe Gen4, redundant PSUs, BMC remote mgmt.
Overview

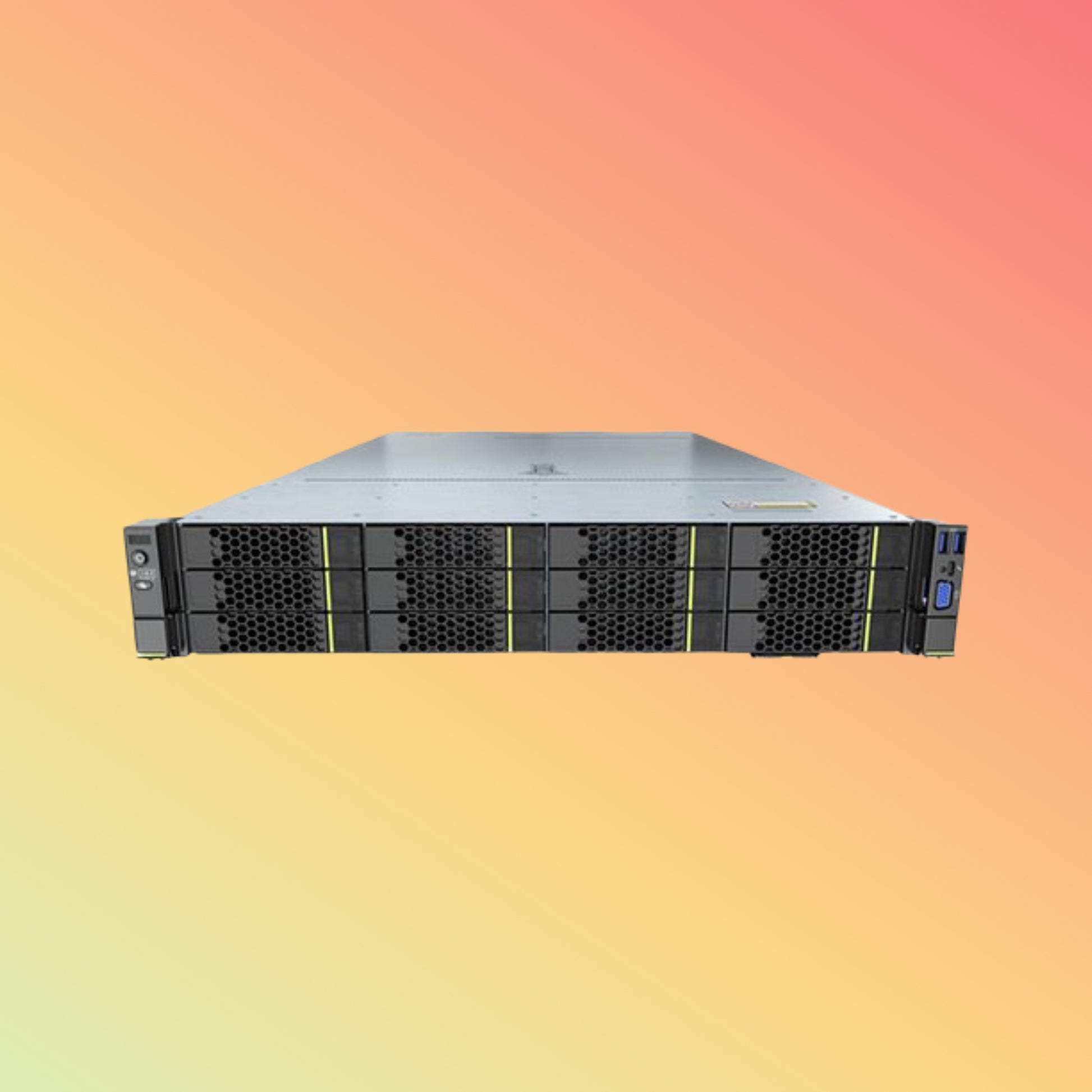

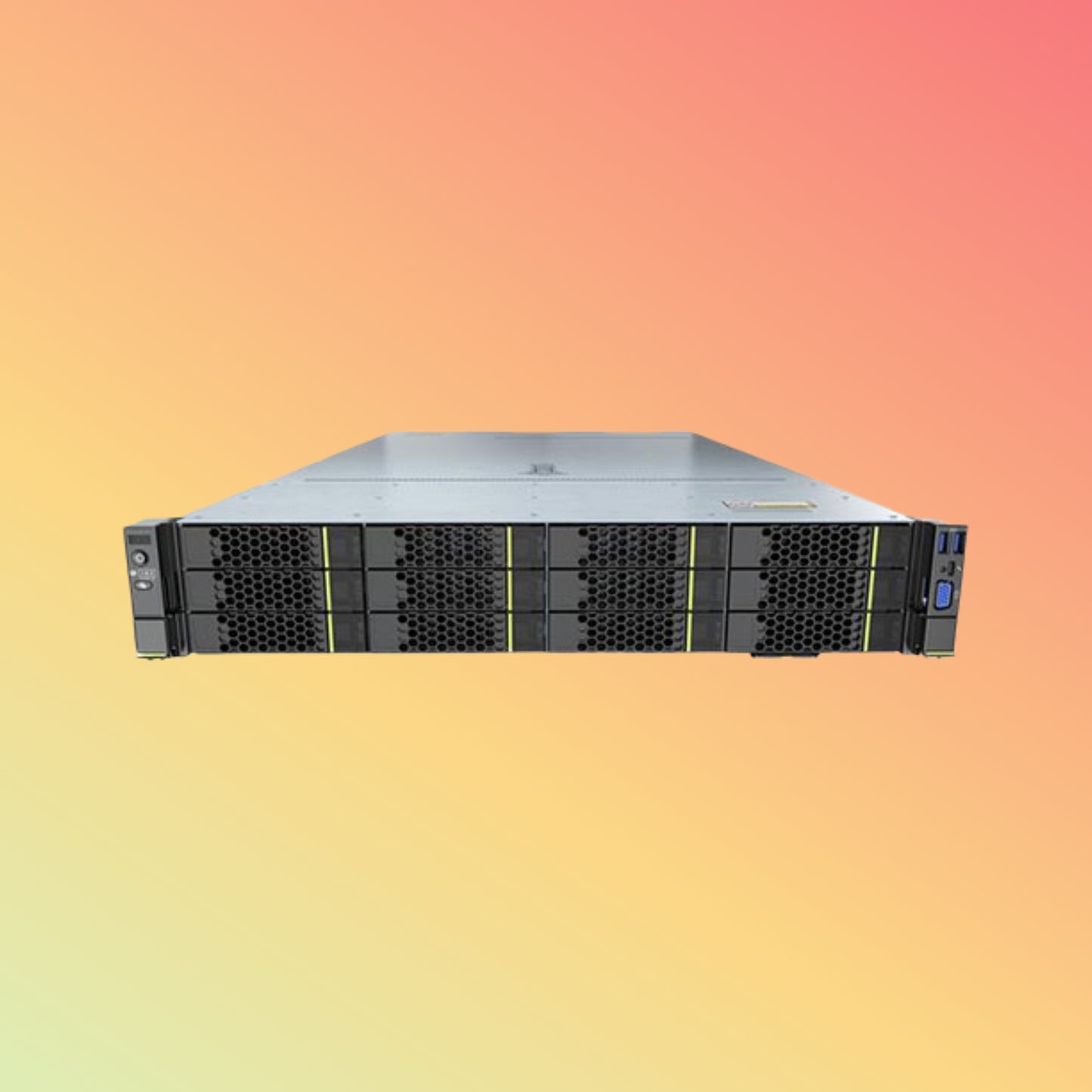

The FusionServer 2288H V6 blends storage density with compute muscle in a 2U chassis. It houses dual Intel® Xeon® Scalable CPUs, up to 2 TB DDR4, 22 hot-swap 3.5″ bays plus eight NVMe boot bays. Rock-solid for file servers, databases, and virtual workloads.
Product Description
Built to crush data-heavy tasks with:
-
CPUs: 2× Intel® Xeon® Scalable (2nd Gen), up to 24 cores each
-
Memory: 32× DDR4-2933 DIMMs, up to 2 TB
-
HDD Bays: 22× hot-swap 3.5″ (SATA/SAS)
-
NVMe Bays: 8× front M.2 NVMe for OS & cache
-
Expansion: 4× PCIe Gen4 ×16 slots
-
Power: Dual 1600 W Platinum PSUs, N+1 redundant
-
Cooling: Hot-swap high-flow fans tuned for drives
-
Mgmt & Security: BMC IPMI/Web UI, TPM 2.0, intrusion alert
Key Features
-
High-Density Storage: 22 HDD + 8 NVMe in 2U
-
Dual-Socket Compute: Balanced CPU & I/O
-
2 TB DDR4: In-memory DB & caching
-
PCIe Gen4: Next-gen expansion lanes
-
Redundant PSUs & Fans: Zero-downtime service
-
Remote Ops: Full out-of-band BMC control
Specifications
| Spec |
Detail |
| Form Factor |
2U rack |
| Processors |
2× Intel® Xeon® Scalable (2nd Gen) |
| Memory |
32× DDR4-2933 DIMMs (2 TB max) |
| 3.5″ Drive Bays |
22× hot-swap (SATA/SAS) |
| M.2 NVMe Bays |
8× front M.2 NVMe |
| PCIe Expansion |
4× PCIe Gen4 ×16 |
| Network |
1× 1 GbE BMC + optional OCP for 10/25 GbE NICs |
| Power Supplies |
2× 1600 W Platinum (1+1 redundant) |
| Cooling |
Hot-swap high-flow fans |
| Security |
TPM 2.0; chassis intrusion detection |
| Management |
BMC IPMI / Web UI / CLI |
| Dimensions (W×H×D) |
438 × 88.5 × 766 mm |
| Weight |
~35 kg |
Supported OS / Applications / Industries
-
OS: Windows Server, VMware ESXi, RHEL, SUSE, Ubuntu
-
Apps: File/print, SQL/NoSQL DB, virtualization, backup/archiving
-
Industries: Enterprise storage, finance, healthcare, telecom
Benefits & Compatibility
-
Ultra-Dense: Saves rack space with 30 drives in 2U
-
Balanced Power: Dual CPUs + memory for mixed workloads
-
Future-Ready I/O: PCIe Gen4 for latest NICs/accelerators
-
Always-On: Redundant PSUs/fans & enterprise RAS
-
Easy Management: BMC remote firmware, BIOS, health checks
Purpose of Use
Ideal for SAN/NAS clusters, large file-share farms, virtualization hosts, and data-intensive database servers.
How to Use
-
Rack-mount the 2U chassis.
-
Install CPUs and populate memory.
-
Insert HDDs and NVMe modules.
-
Connect power, network, and BMC.
-
Configure RAID/BIOS via BMC UI.
-
Deploy OS or hypervisor.
Packaging / Weight / Dimensions
-
Dimensions: 438 × 88.5 × 766 mm (2U)
-
Weight: ~35 kg (full config)
-
Includes: Chassis, drive trays, PSUs, rail kit, quick-start guide
Warranty & FAQs
Warranty: 3 years next-business-day support.
FAQs:
-
Q: Mix HDD & NVMe?
A: Yes—use HDD bays for bulk storage, NVMe for OS/cache.
-
Q: RAID options?
A: Software RAID or optional hardware HBA.
Performance & Reliability
Enterprise-grade components, advanced RAS, and optimized airflow. Hot-swap modules plus proactive health alerts ensure 24/7 uptime.
