2U rack: dual Intel Xeon CPUs, 24×3.5″ HDD bays, 8 NVMe bays, 32 DDR4 slots (2 TB), PCIe Gen4, redundant PSUs, BMC remote mgmt.
Overview

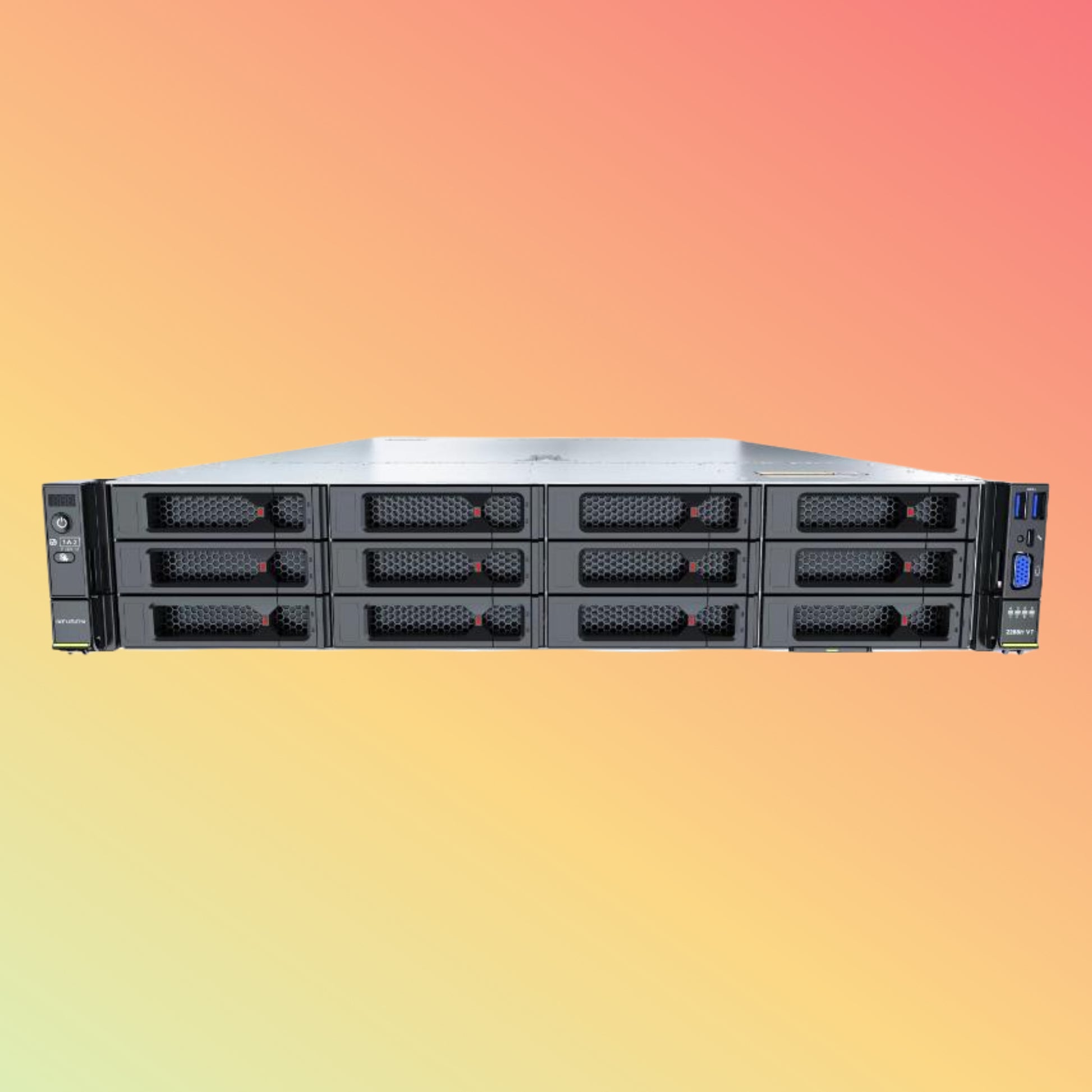

The FusionServer 2488H V7 fuses massive storage with compute in a 2U chassis. It packs dual Intel® Xeon® Scalable CPUs, up to 2 TB DDR4, 24 hot-swap 3.5″ bays plus eight front NVMe boot bays. It nails file-server, database, and virtualization roles with enterprise resilience.
Product Description
This chassis slays data-heavy workloads with:
-
CPUs: 2× Intel® Xeon® Scalable (3rd-Gen) up to 28 cores each
-
Memory: 32× DDR4-3200 DIMMs, up to 2 TB
-
HDD Bays: 24× hot-swap 3.5″ bays (SATA/SAS)
-
NVMe Bays: 8× front M.2 NVMe for OS & cache
-
Expansion: 4× PCIe Gen4 ×16 slots for networking/acceleration
-
Power: Dual 1600 W Platinum PSUs, N+1 redundancy
-
Cooling: Hot-swap high-flow fans tuned for drives
-
Mgmt & Security: BMC IPMI/Web UI, TPM 2.0, intrusion alert
Key Features
-
Massive Storage: 24× 3.5″ bays + 8 NVMe in 2U
-
Dual CPUs: High-core Xeons for compute tasks
-
2 TB DDR4: In-memory DB and caching
-
PCIe Gen4: Fast I/O for NICs or GPUs
-
Redundant PSUs & Fans: Zero-downtime serviceability
-
Remote BMC: Out-of-band firmware, BIOS, health mgmt
Specifications
| Spec |
Detail |
| Form Factor |
2U rack |
| Processors |
2× Intel® Xeon® Scalable (3rd-Gen) |
| Memory |
32× DDR4-3200 DIMMs (2 TB max) |
| HDD Bays |
24× 3.5″ hot-swap (SATA/SAS) |
| NVMe Bays |
8× M.2 front NVMe |
| Expansion Slots |
4× PCIe Gen4 ×16 |
| Network |
1× 1 GbE BMC + optional OCP for 10/25 GbE NICs |
| Power Supplies |
2× 1600 W Platinum (1+1 redundant) |
| Cooling |
Hot-swap high-flow fans |
| Security |
TPM 2.0, chassis intrusion detection |
| Management |
BMC IPMI / Web UI / CLI |
| Dimensions (W×H×D) |
438 × 88.5 × 766 mm |
| Weight |
~36 kg |
Supported OS / Applications / Industries
-
OS: Windows Server, VMware ESXi, RHEL, SUSE, Ubuntu
-
Apps: File/Print, SQL/NoSQL DB, virtualization, backup
-
Industries: Enterprise storage, finance, healthcare, telecom
Benefits & Compatibility
-
Ultra-Dense Storage: 24 bays + NVMe boot in 2U
-
Balanced Compute: Dual Xeons + ample memory
-
Future-Ready I/O: PCIe Gen4 for add-in cards
-
Always-On: Redundant PSUs/fans & enterprise RAS
-
Easy Ops: BMC remote console streamlines mgmt
-
Scalable: Mix HDD/SAS/NVMe per workload
Purpose of Use
Ideal for large-scale file shares, SAN/NAS clusters, SQL/NoSQL hosts, and backup/archive servers.
How to Use
-
Rack-mount the 2U chassis.
-
Populate CPUs, memory, HDDs, and NVMe modules per quick-start guide.
-
Connect power, network, and BMC port.
-
Configure RAID, BIOS, and firmware via BMC UI.
-
Deploy your storage or VM platform.
Packaging / Weight / Dimensions
-
Dimensions: 438 × 88.5 × 766 mm (2U)
-
Weight: ~36 kg (fully loaded)
-
Includes: Chassis, drive trays, PSUs, rail kit, quick-start guide
Warranty & FAQs
Warranty: 3 years next-business-day support.
FAQs:
Performance, Quality & Reliability
Built with enterprise-grade parts, advanced RAS, and optimized airflow. Hot-swap modules plus proactive health alerts ensure 24/7 uptime.
Best Price Guarantee
Spotted a lower quote? Show proof, and we’ll match it—anywhere in the UAE.
Shop Today & UAE Delivery
Order now for secure, tracked shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates.
Customer Reviews & Testimonials
Deployed the 2488H V7? Leave a review to guide peers—and get featured on our site!
After-Sales Support
24/7 expert help via chat, email, or phone. From hardware setup to performance tuning, we’ve got you.
Get in Touch
Need custom configs or volume quotes? Hit us up via live chat, email, or phone. We’re here 🤙.
Stock Availability
High-density models sell fast. Contact us to confirm stock before checkout.
Disclaimer
All specs and info subject to change without notice. Images are illustrative. Verify details with our sales team before purchase.
