Meta Brain AS5500G5 Hybrid Flash Storage

Multi-tier hybrid array with 12× NVMe + 24× HDD bays, 500 TB raw & sub-500 µs latency. Scalable caching for AI & VDI. Shop UAE now.

Overview

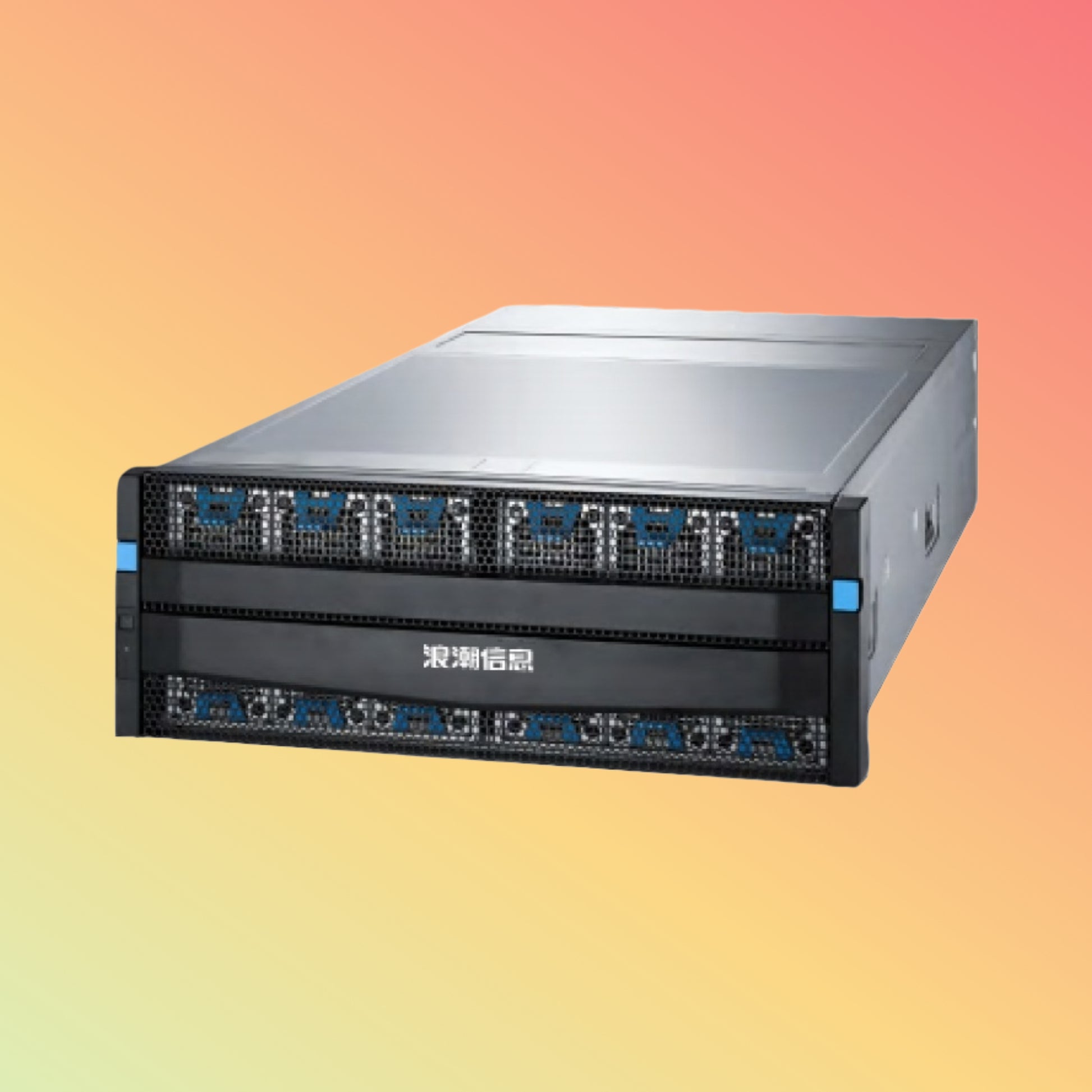

The Meta Brain AS5500G5 blends flash speed with HDD capacity in a single 4U chassis. Twelve front-hot-swap NVMe bays act as a high-performance cache in front of twenty-four 3.5″ HDD slots. With up to 500 TB raw capacity and sub-500 µs latency, it’s ideal for AI/ML, VDI, and mixed-workload environments craving both throughput and cost-efficiency.

Product Description

This hybrid storage powerhouse pairs dual-active controllers with a front-end NVMe cache tier to accelerate random I/O while delivering petabyte-scale HDD economics. Inline caching algorithms adapt in real time, pushing “hot” data to ultra-fast NVMe modules and “cold” data to high-density HDDs. Dual 32 Gb/s Fibre Channel and 25 GbE iSCSI ports ensure flexible connectivity, while redundant 1400 W Titanium PSUs and smart-fan modules lock in 24/7 uptime. Manage via an intuitive HTML5 GUI or REST API for automation.

Key Features

• 12× front hot-swap NVMe U.2 bays for high-speed cache

• 24× 3.5″ SATA HDD bays (up to 500 TB raw)

• Dynamic tiering with inline caching algorithms

• < 500 µs average cache latency

• Dual-active redundant controllers

• 4× 32 Gb Fibre Channel + 4× 25 GbE iSCSI ports

• HTML5 GUI, CLI, RESTful API management

• Redundant 1400 W Titanium PSUs & hot-swap fans

• AES-256 at-rest encryption, TPM 2.0

Specifications

• Cache Tier: 12× NVMe U.2 bays

• Capacity Tier: 24× 3.5″ SATA bays (500 TB raw)

• Throughput: 100 GB/s cache aggregate

• Latency: < 500 µs (cache)

• Controllers: Dual-active, redundant

• Networking: 4× 32 Gb FC; 4× 25 GbE iSCSI

• Chassis: 4U (482×177×650 mm)

• PSUs: 2× 1400 W Titanium, hot-swap

• Cooling: 8× front-to-back hot-swap fans

• Security: AES-256 encryption, TPM 2.0

Supported OS / Applications / Industries

• OS: Windows Server, Linux distros, VMware ESXi

• Apps: AI/ML training, VDI farms, database caching, virtualization

• Industries: Finance, healthcare, media, education, cloud services

Benefits & Compatibility

• Flash caching slashes I/O bottlenecks for mixed workloads

• HDD tier delivers high-density storage at lower cost

• Multi-protocol support for hybrid SAN/NAS environments

• Seamless integration with VMware, Hyper-V, Kubernetes

• Enterprise redundancy ensures non-stop operations

Purpose of Use

Designed for environments that need both low-latency flash performance (AI inference, VDI) and large-scale HDD capacity (archives, backups), all in one hybrid array.

How to Use

1. Rack-mount in a 4U bay using standard rails.

2. Populate NVMe cache modules and HDDs.

3. Connect Fibre Channel or iSCSI networks.

4. Configure caching policies and volumes via GUI/API.

5. Monitor performance and health dashboards continually.

Packaging / Weight / Dimension

• Dimensions: 482×177×650 mm (W×H×D)

• Weight: ~60 kg fully loaded

• Packaging: Shock-absorbent foam, reinforced crate

• Includes: Rail kit, power cables, quick-start guide

Warranty and FAQs

• Warranty: 3-year NEOTECH limited with on-site NBD support

• FAQs:

  • Q: How much effective capacity?
    A: Up to 1 PB with inline dedupe/compression.

  • Q: Can I upgrade modules online?
    A: Yes—hot-swap NVMe and HDD bays.

  • Q: Which RAID levels?
    A: Default RAID 6; RAID 5 optional.

  • Q: Is data encrypted?
    A: Yes, AES-256 at-rest.

Performance, Quality, Durability & Reliability

Engineered for 99.999% availability, the AS5500G5 uses enterprise flash and HDDs with dynamic caching. Non-disruptive upgrades and continuous health checks keep SLAs solid.

Best Price Guarantee

Found a lower hybrid array deal in the UAE? We’ll match it. NEOTECH locks in your best value with local support and same-day shipping.

Shop Today & Receive Your Delivery Across the UAE!

Fast, secure delivery across Dubai, Abu Dhabi, Sharjah, Ajman, and beyond. Get your AS5500G5 on-site with our trusted logistics network.

Request for Customer Reviews and Testimonials

Deployed the AS5500G5? Share a quick review to help others optimize their storage stack.

After Sales Support

24/7 remote diagnostics, proactive firmware updates, and priority RMA. Our experts keep your array running peak long after purchase.

Get in Touch

For pricing, demos, or custom configs, contact NEOTECH support. We’re here to power your hybrid storage strategy.

Stock Availability

Confirm live stock before ordering. Standard configs ship in 3–5 business days; custom builds take 10–15 days.

Disclaimer

All specs and pricing subject to change without notice. Images are illustrative and may differ from actual hardware. Verify details with our sales team before purchase.
