Compact 1″ thermal print head, <60 dB noise, 100 mm/s speed, 50 km life. Perfect for mini POS & portable printers.
Overview

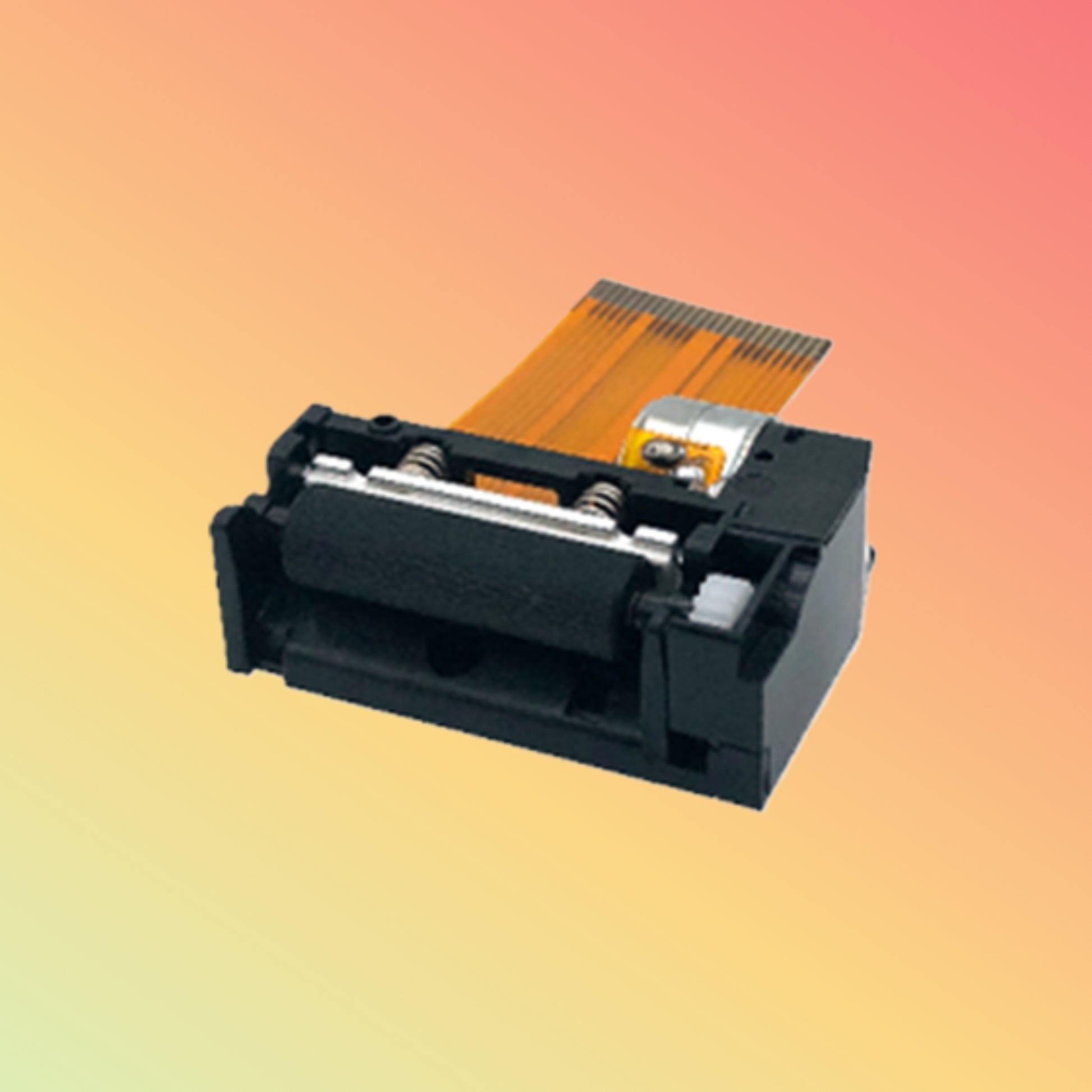

The JRP-1RA is a super-compact 1″ (≈25 mm) thermal print head built for mini POS units and handheld printers. It cranks out sharp 8 dots/mm prints at up to 100 mm/s, all while staying whisper-quiet under 60 dB. Rugged design and wide voltage range make it a retail and logistics champ.
Product Description
Driven by a brushless stepper motor and durable engineering-plastic gears, this print head minimizes wear and noise. It handles 58 mm paper at 48 mm print width with 384 dots/line precision. Voltage support spans 3.3–12 V for the head and 4.75–9.5 V for the motor, so it stays stable in varied setups.
Key Features
-
Super-Fast: Up to 100 mm/s print speed
-
Ultra-Quiet: < 60 dB(A RMS) noise
-
Long-Lasting: > 50 km paper feed life; 100 M head pulses
-
High-Precision: 8 dots/mm, 384 dots/line
-
Wide Voltage: Head 3.3–12 V; motor 4.75–9.5 V
-
Rugged Build: Metal frame & heat-resistant gears
Specifications
| Spec |
Detail |
| Print Method |
Thermal line print |
| Print Width |
48 mm |
| Paper Width |
58 mm |
| Resolution |
8 dots/mm (0.125 mm) |
| Dots per Line |
384 |
| Max Speed |
100 mm/s |
| Head Voltage |
3.3–12 V DC |
| Logic Voltage |
2.7–5.5 V DC |
| Motor Voltage |
4.75–9.5 V DC |
| Feed Accuracy |
0.03125 mm |
| Operating Temp/Hum |
0–50 °C, 20–85 % RH |
| Storage Temp/Hum |
–20–60 °C, 5–95 % RH |
| Noise Level |
< 60 dB(A RMS) |
| Platen Life |
> 5 000 cycles |
| Traction Force |
≥ 50 g |
| Grip Force |
≥ 80 g |
| Mechanism Life |
> 50 km printed |
| Head Pulse Life |
100 million pulses |
| Size (L×W×H) |
69 × 30 × 15 mm (+1.5 mm tol) |
| Weight |
40 g |
Supported OS / Applications / Industries
-
Apps: Mini receipt printers, handheld POS, kiosks
-
Industries: Retail, hospitality, logistics, ticketing
-
Form Factor: Fits Seiko LTPD-245A-384E slots
Benefits & Compatibility
Tiny footprint + rock-solid performance = faster check-outs in tight spaces. Plug-and-play with most POS modules to slash integration time.
Purpose of Use
Made for businesses that need slick, reliable receipts on the go—food trucks, pop-up shops, mobile kiosks, you name it.
How to Use
-
Mount into your printer chassis
-
Wire up head & motor power lines
-
Load 58 mm thermal roll
-
Calibrate feed
-
Send ESC/POS commands and watch it print
Packaging / Weight / Dimension
Warranty and FAQs
-
Warranty: 12 months vs. defects
-
FAQs: Full setup guides, firmware & troubleshooting on our support page
Performance, Quality, Durability & Reliability
Built with heat-resistant gears and a sturdy metal frame, the JRP-1RA powers through over 50 km of continual printing with zero drift.
