2U rack: dual Intel Xeon CPUs, 22×3.5″ bays, 8 NVMe, 32 DDR4 slots (2 TB), PCIe Gen4, redundant PSUs, BMC remote mgmt.
Overview

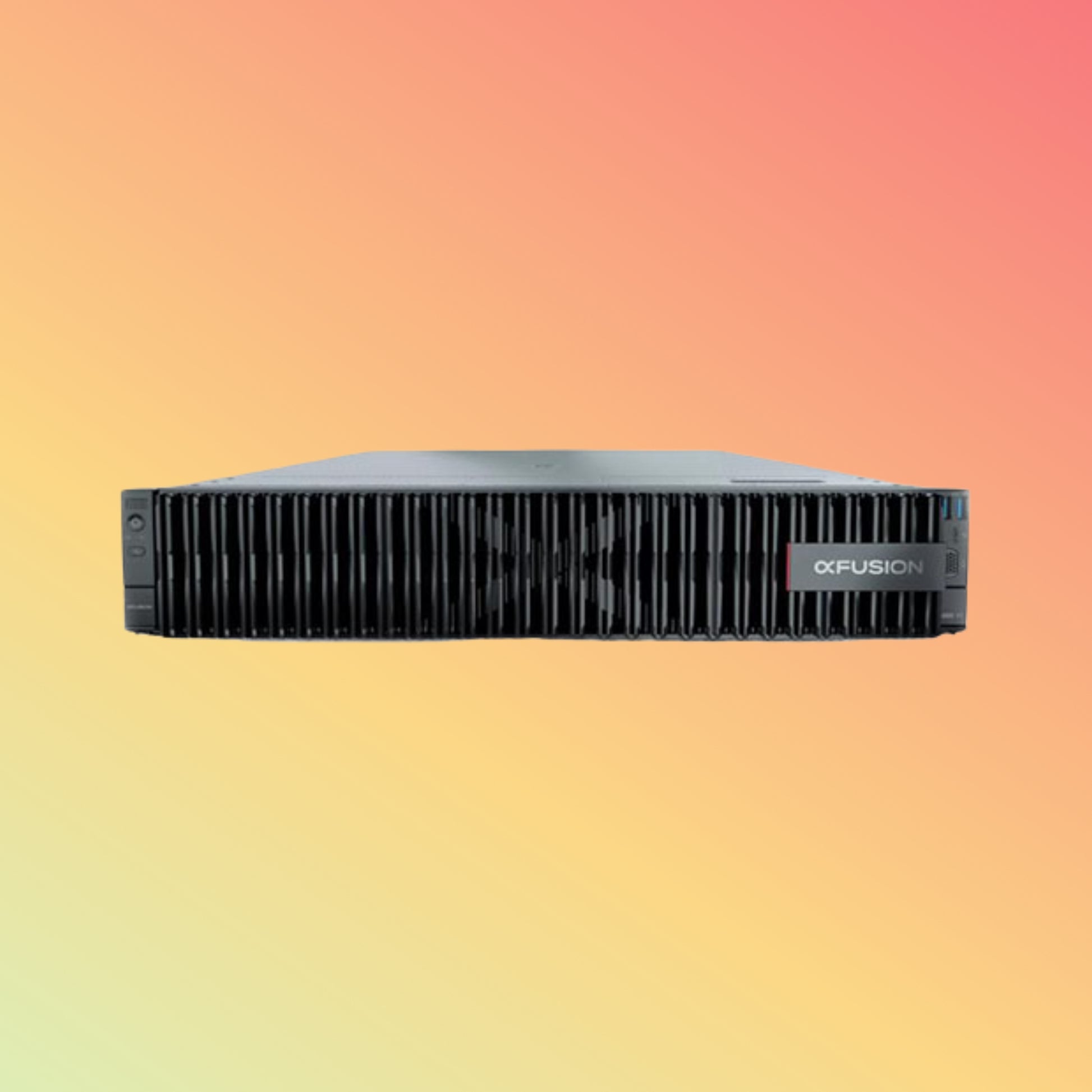

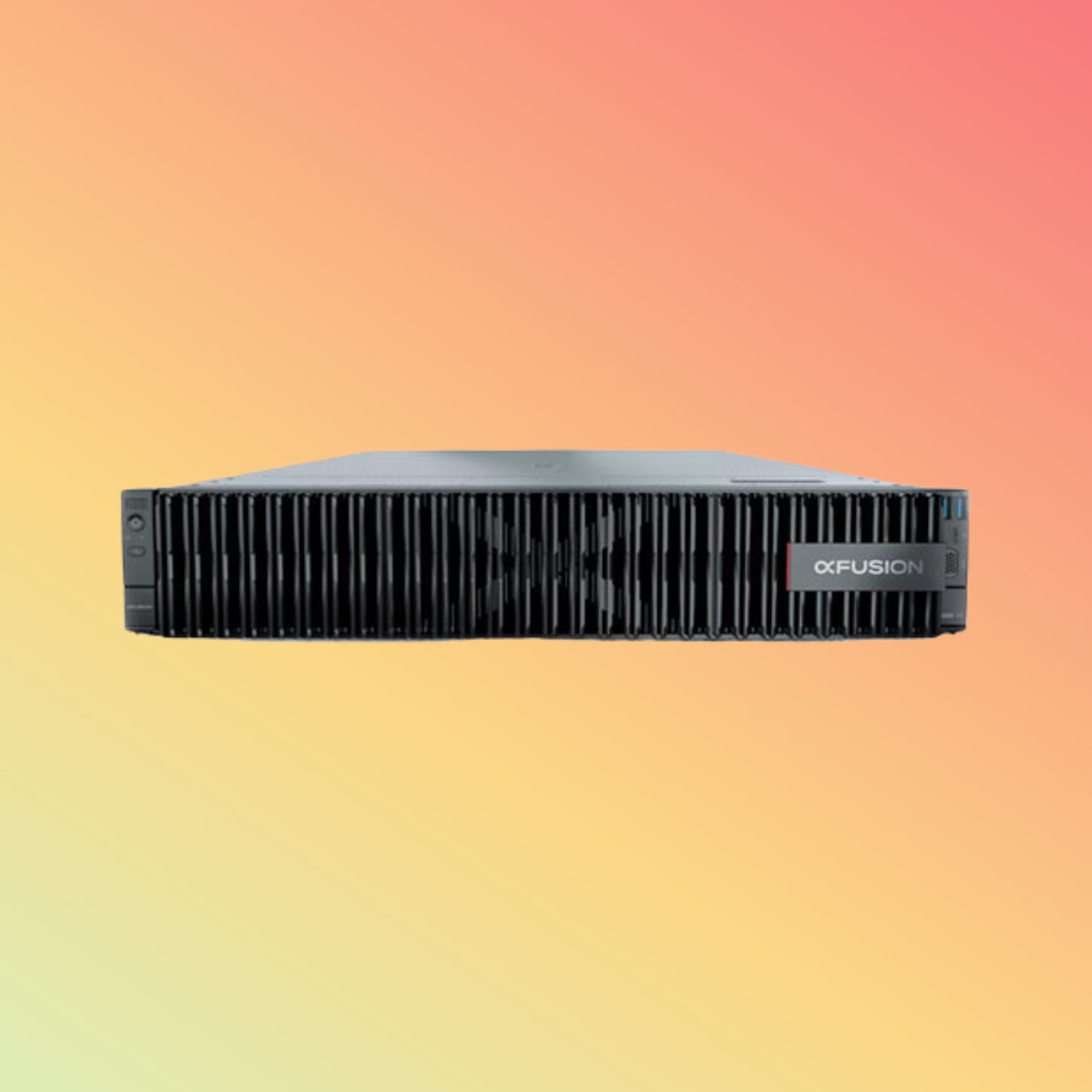

The FusionServer 2288 V7 blends storage density and compute power in a 2U chassis. It packs dual Intel® Xeon® Scalable CPUs, up to 2 TB DDR4, 22 hot-swap 3.5″ bays plus 8 front NVMe slots. Perfect for file servers, database nodes, and virtual environments.
Product Description
This server crushes data-heavy tasks with:
-
Dual CPUs: 2× Intel® Xeon® Scalable (3rd-Gen), up to 28 cores each
-
Memory: 32× DDR4-3200 DIMMs, up to 2 TB
-
HDD Bays: 22× hot-swap 3.5″ (SATA/SAS)
-
NVMe Bays: 8× front M.2 NVMe for OS/cache
-
PCIe: 4× PCIe Gen4 ×16 slots for NICs, GPUs, HBAs
-
Power: Dual 1600 W Platinum PSUs, N+1 redundancy
-
Cooling: Hot-swap high-flow fans tuned for drives
-
Management & Security: BMC IPMI/Web UI, TPM 2.0, chassis intrusion alert
Key Features
-
30-Drive Density: 22 HDD + 8 NVMe in 2U
-
High-Core CPUs: Scales compute & I/O
-
2 TB DDR4: Memory-intense apps & caching
-
Next-Gen I/O: PCIe Gen4 expansion
-
Zero-Downtime: Redundant PSUs & fans
-
Remote Ops: Full out-of-band BMC control
Specifications
| Spec |
Detail |
| Form Factor |
2U rack |
| Processors |
2× Intel® Xeon® Scalable (3rd Gen) |
| Memory |
32× DDR4-3200 DIMMs (2 TB max) |
| 3.5″ Drive Bays |
22× hot-swap (SATA/SAS) |
| M.2 NVMe Bays |
8× front M.2 NVMe |
| PCIe Expansion |
4× PCIe Gen4 ×16 |
| Network |
1× 1 GbE BMC + optional OCP for 10/25 GbE NICs |
| Power Supplies |
2× 1600 W Platinum (1+1 redundant) |
| Cooling |
Hot-swap high-flow fans |
| Security |
TPM 2.0; chassis intrusion detection |
| Management |
BMC IPMI / Web UI / CLI |
| Dimensions (W×H×D) |
438 × 88.5 × 766 mm |
| Weight |
~35 kg |
Supported OS / Applications / Industries
-
OS: Windows Server, VMware ESXi, RHEL, SUSE, Ubuntu
-
Apps: File/print, SQL/NoSQL DB, virtualization, backup/archiving
-
Industries: Enterprise storage, finance, healthcare, telecom
Benefits & Compatibility
-
Ultra-Dense Storage: Saves rack space with 30 drives in 2U
-
Balanced Power: Dual CPUs + memory for varied workloads
-
Future-Ready I/O: PCIe Gen4 for latest cards
-
Always-On: Redundant PSUs & fans, enterprise-grade RAS
-
Easy Management: BMC remote firmware, BIOS, health checks
Purpose of Use
Ideal for SAN/NAS clusters, large-scale file servers, hypervisor hosts, and data-intensive databases.
How to Use
-
Rack-mount the 2U chassis.
-
Install CPUs and populate memory.
-
Slide in HDDs and NVMe modules.
-
Connect power, network, and BMC LAN.
-
Configure RAID, BIOS, firmware via BMC UI.
-
Deploy your OS, hypervisor, or storage platform.
Packaging / Weight / Dimensions
-
Dimensions: 438 × 88.5 × 766 mm (2U)
-
Weight: ~35 kg (full config)
-
Includes: Chassis, drive trays, PSUs, rail kit, quick-start guide
Warranty & FAQs
Warranty: 3 years next-business-day support.
FAQs:
-
Q: Can I mix HDD & NVMe?
A: Yes—use HDD bays for bulk storage, NVMe for OS/cache.
-
Q: What RAID levels?
A: Software RAID or optional hardware HBA for RAID 0/1/5/6/10.
Performance & Reliability
Built with enterprise-grade components, advanced RAS, and optimized airflow. Hot-swap modules plus proactive health alerts ensure 24/7 uptime.
Best Price Guarantee
Found a lower quote? Show proof—we’ll match it, anywhere in the UAE.
Shop Today & UAE Delivery
Order now for fast, tracked shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates.
Customer Reviews & Testimonials
Deployed the 2288 V7? Leave a review to guide peers—and get featured!
After-Sales Support
24/7 expert help via chat, email, or phone. From setup to performance tuning, we’ve got you.
Get in Touch
Need custom configs or volume quotes? Hit us up via live chat, email, or phone. We’re here 🤙.
Stock Availability
High-demand models sell fast. Contact us to confirm stock before checkout.
Disclaimer
All specs and info subject to change without notice. Images are illustrative. Verify details with our sales team before purchase.
