Stackable switch: 48× 1G PoE+ ports, 4× 10G SFP+, 480W PoE budget, 80 Gb/s stack, Cisco IOS XE, redundant fans/PSUs—ideal for enterprise access.
Overview

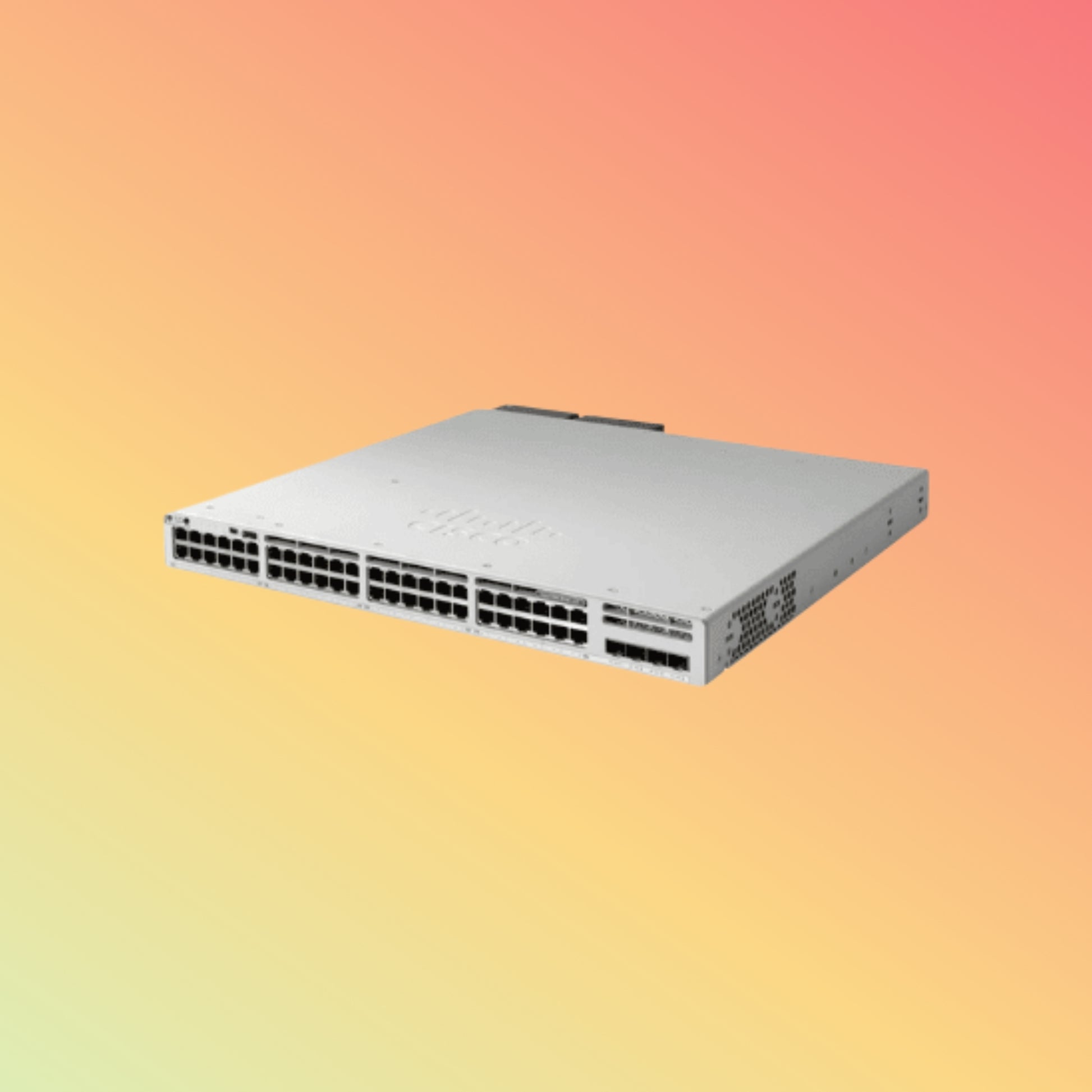

The Catalyst 9300L-48P-4G-E is a fixed-access PoE+ powerhouse. It delivers 48 Gigabit PoE+ ports, four 10G SFP+ uplinks, and up to 480W PoE budget. Stack up to eight units at 80 Gb/s for scaling. Perfect for secure, high-density campus access and IoT.
Product Description
Compact, secure, and high-power:
-
48× 1G PoE+ ports (IEEE 802.3at) with 480W total budget
-
4× 10G SFP+ uplinks for fiber or DWDM modules
-
StackWise-80: 80 Gb/s stacking bandwidth, up to 8 units
-
Cisco IOS XE: Programmable OS with SD-Access & automation
-
Security: MACsec, Secure Boot, Encrypted Traffic Analytics
-
Resiliency: Redundant fans and modular PSU options
-
PoE Options: Per-port power priority & scheduling
-
Management: Cisco DNA Center & CLI/Web UI
Deliver campus access, wireless backhaul, and IoT power seamlessly.
Key Features
-
High-Density PoE+: 48 ports @ 30W each max
-
Scalable Uplinks: 4× 10G SFP+ or 1× 25G (modular)
-
StackWise-80: High-speed resilience & unified mgmt
-
Advanced Security: MACsec, AES-256, Trust Anchor
-
IOS XE Programmability: NETCONF, REST-CONF, Python
-
Energy-Efficient: Smart PoE scheduling & low-power modes
Specifications
| Spec |
Detail |
| Ports |
48× 1G PoE+ (802.3at) + 4× 10G SFP+ |
| PoE Budget |
480W total |
| Stacking |
Cisco StackWise-80 (up to 8 units @ 80 Gb/s) |
| Switching Capacity |
176 Gb/s |
| Forwarding Rate |
130 Mpps |
| DRAM / Flash |
4 GB / 4 GB |
| PSU |
715W AC (single); optional 1100W redundant PSU |
| Fans |
Redundant field-replaceable |
| Dimensions |
44.5×44.5×4.45 cm (1RU) |
| Weight |
~7.1 kg |
| Management |
Cisco DNA Center, CLI, Web UI, SNMP, REST APIs |
| OS |
Cisco IOS XE |
| Security |
MACsec, Secure Boot, ETA, 802.1X, Trust Anchor |
| Operating Temp. |
0 °C to 45 °C |
Supported Use Cases & Industries
-
Use Cases: Campus access, branch LAN, wireless backhaul, IoT edge
-
Industries: Education, healthcare, finance, retail, government
Benefits & Compatibility
-
Unified Stack: Simplify mgmt with StackWise-80
-
Power & Data: One box for PoE devices & uplinks
-
Secure by Design: Zero-trust ready at layer 2/3
-
Automation-Ready: Intent-based networking via DNA
-
Modular Growth: Add 25G uplink module if needed
Purpose of Use
Ideal for high-density access in campuses, branch offices, and IoT-rich environments needing reliable PoE+ and secure fabric.
How to Use
-
Rack-mount 1RU chassis.
-
Connect PoE devices to ports 1–48.
-
Link uplinks via SFP+ to core or fiber.
-
Stack units with StackWise cables.
-
Configure via DNA Center or CLI.
Packaging & Dimensions
Warranty & FAQs
Warranty: 5-year Next-Business-Day hardware replacement.
FAQs:
Performance & Reliability
Engineered for 99.999% uptime with redundant PSU/fans and hot-swap modules. Fixed high-performance ASIC for low latency.
Best Price Guarantee
Found a better list price? Show proof—we’ll match it—UAE-wide.
Shop Now & UAE Delivery
Order today for fast, tracked shipping to Dubai, Abu Dhabi, Sharjah, and all Emirates.
Customer Reviews & Testimonials
Deploying 9300L-48P? Drop a review to help peers—and get featured!
After-Sales Support
24/7 Cisco TAC via phone, chat, or email. From integration to troubleshooting, we’ve got you.
Get in Touch
Need custom configs, PoE forecasting, or volume pricing? Hit us up via live chat, email, or phone. We’re here 🤙.
Stock Availability
High-demand model—stock moves fast. Contact us to confirm before checkout.
Disclaimer
All specs and info subject to change without notice. Images are illustrative. Verify details with your Cisco rep before purchase.
