2U rack server: four modular nodes, dual Intel Xeon CPUs each, 16 DDR4 slots/node, NVMe boot, PCIe Gen4, redundant shared PSUs, remote management.
Overview

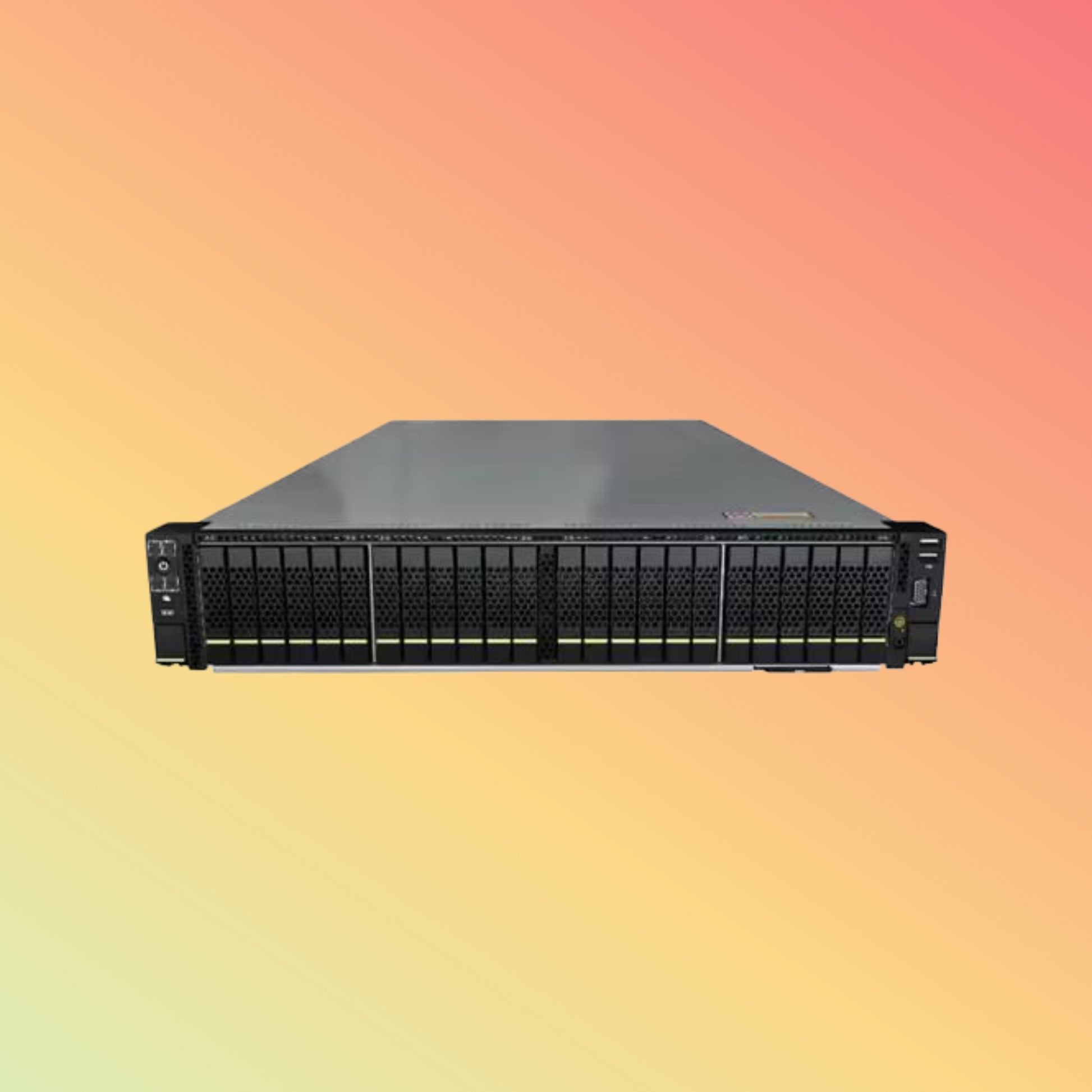

The FusionServer X6000 V6 is a 2U chassis housing four independent server nodes. Each node runs dual Intel® Xeon® Scalable CPUs, up to 1 TB DDR4, plus NVMe boot. It’s ultra-dense, ultra-efficient, and built for cloud, virtualization, and high-scale hosting.
Product Description
This chassis slays data-center real estate with:
-
4× Server Nodes in one 2U frame
-
CPU per Node: 2× Intel® Xeon® Scalable (Ice Lake)
-
Memory per Node: 16× DDR4 DIMMs, up to 1 TB
-
Boot Storage: 2× M.2 NVMe per node
-
Expansion per Node: 1× PCIe Gen4 x16 slot
-
Shared Power: Redundant 2000 W Platinum PSUs
-
Cooling: High-efficiency hot-swap fans
-
Mgmt & Security: Integrated BMC, TPM 2.0, chassis intrusion alert
Key Features
-
Quad-Node Design: 4 servers in 2U for max density
-
Dual Xeon CPUs per node for heavy compute
-
1 TB DDR4 per node for memory-intensive apps
-
NVMe Boot: fast OS load on M.2 drives
-
PCIe Gen4 Slots: one slot per node for I/O cards
-
Shared Redundant PSUs: fewer cables, more uptime
-
Remote Management: out-of-band BMC console
Specifications
| Spec |
Detail |
| Chassis |
2U, holds 4 hot-swap server nodes |
| Node CPUs |
2× Intel® Xeon® Scalable (Ice Lake) |
| Node Memory |
16× DDR4-3200 DIMMs, up to 1 TB |
| Boot Storage |
2× M.2 NVMe per node |
| Expansion Slots |
1× PCIe Gen4 x16 per node |
| Power Supplies |
2× 2000 W Platinum (1+1 redundant) |
| Cooling |
8× hot-swap fans |
| Network |
1× Management LAN per node |
| Security |
TPM 2.0 per node, chassis intrusion detection |
| Mgmt Interface |
BMC with IPMI/web UI/CLI |
| Operating Temp. |
5 – 35 °C |
| Dimensions |
438×88.5×750 mm |
| Weight |
~36 kg |
Supported OS / Applications / Industries
-
OS: Windows Server, VMware ESXi, RHEL, SUSE, Ubuntu
-
Use Cases: Virtualization clusters, container platforms, high-density hosting, cloud edge
-
Industries: Cloud providers, telecom, finance, service providers
Benefits & Compatibility
-
Space Efficiency: 4 servers in only 2U
-
Resource Isolation: Dedicated resources per node
-
Energy Savings: Shared PSUs and optimized airflow
-
Scalable I/O: PCIe Gen4 per node for GPUs/NICs
-
Simplified Ops: Single chassis, single management plane
-
High Availability: Redundant power & fans
Purpose of Use
Ideal for service-providers, multi-tenant clouds, virtual desktop infra, and micro-service farms needing ultra-dense compute.
How to Use
-
Rack-mount the 2U chassis.
-
Slide in each node and connect management LAN.
-
Populate CPUs, memory, and M.2 drives per node.
-
Install I/O cards in node PCIe slots.
-
Power up and configure via BMC console.
-
Deploy OS and workloads on each node.
Packaging / Weight / Dimensions
-
Dimensions: 438 × 88.5 × 750 mm (2U)
-
Weight: ~36 kg (full config)
-
Includes: Chassis, 4 server nodes, power cords, rack rails
Warranty & FAQs
Warranty: 3-year next-business-day support.
FAQs:
-
Q: Can I remove a single node hot?
A: Yes, each node is hot-swappable.
-
Q: How many I/O cards per node?
A: One full-length PCIe Gen4 x16 slot.
Performance, Quality, Durability & Reliability
Built with enterprise-grade parts, hot-swap modules, and advanced RAS. Designed for 24/7 multi-tenant environments.
