58mm Thermal Printer Mechanism-ATP210

High-speed ATP210 58 mm thermal engine—180 mm/s, 203 dpi, auto-cutter ready. Ideal for POS, kiosks & embedded systems.

Overview

Say hi to the ATP210, a slick 58 mm direct-thermal print engine designed for seamless embed. It churns out crisp 203 dpi receipts and tags at up to 180 mm/s, with optional full- or partial-cut auto-cutter support. Perfect for POS machines, self-service kiosks, handheld scanners, and IoT gadgets—delivering jam-free performance around the clock.

Product Description

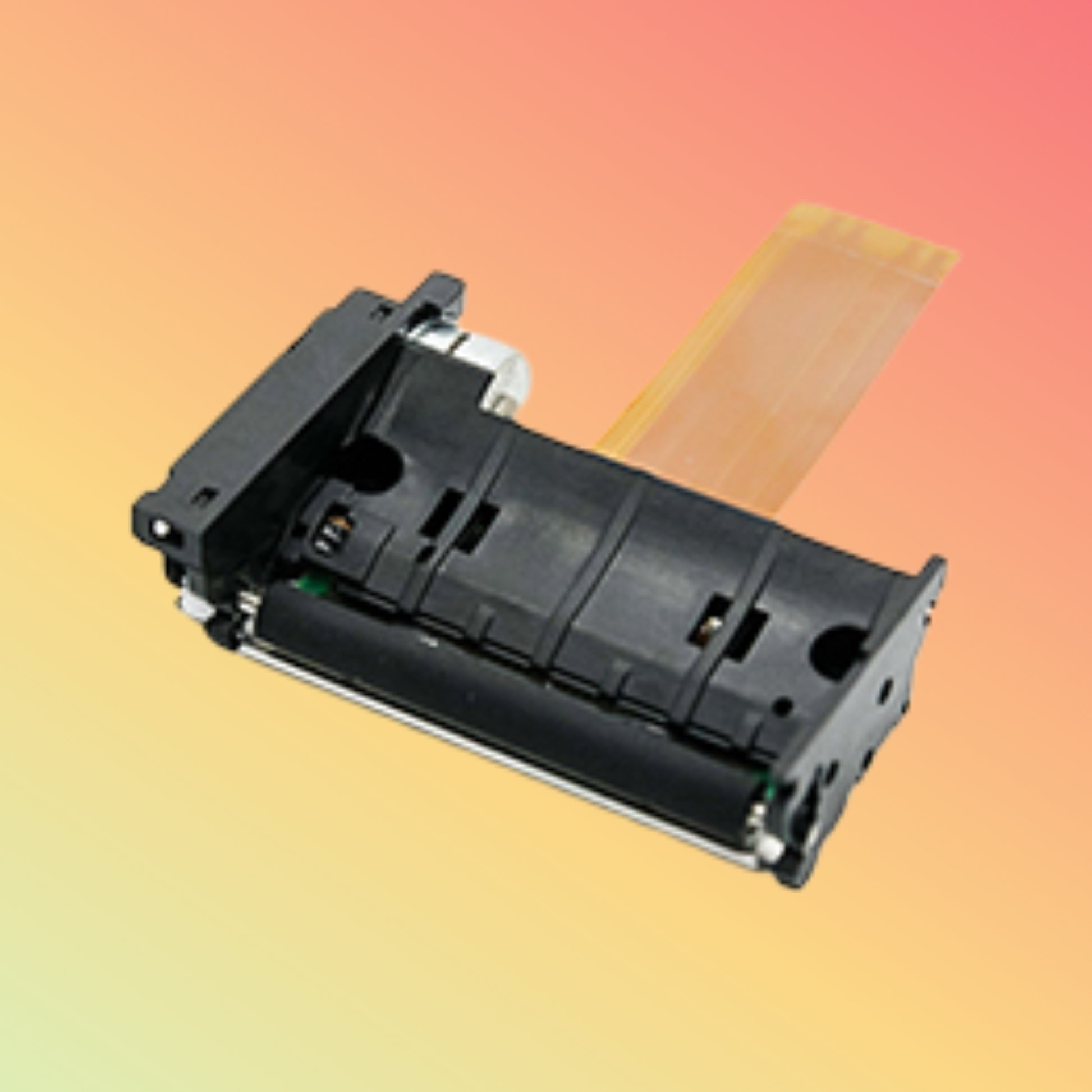

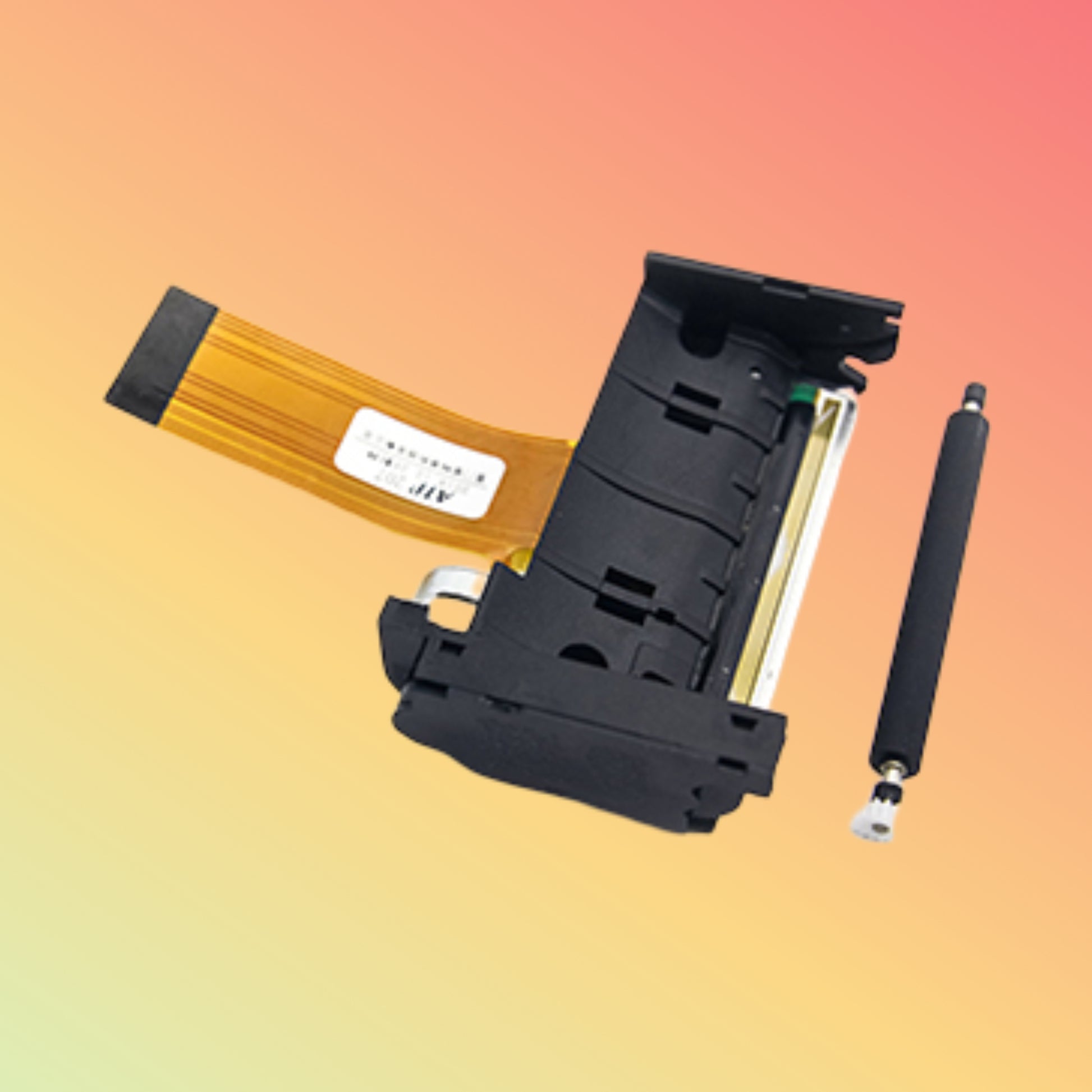

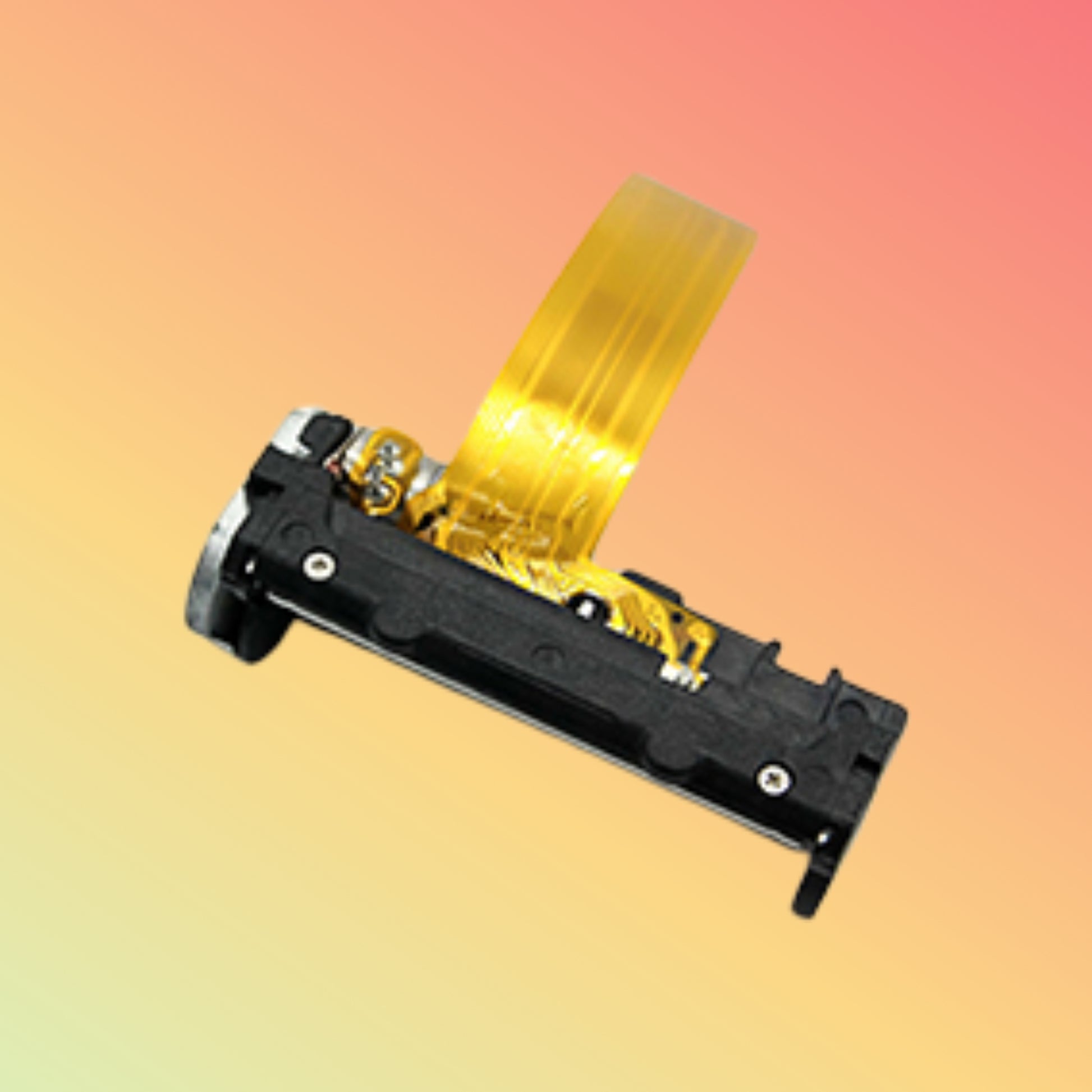

The NEOTECH ATP210 packs industrial-grade printing into a compact 100 × 80 × 60 mm chassis. It uses direct-thermal tech—no ribbons or ink—so you just load a 58 mm roll on a 12.7 mm core and hit print. A precision stepper motor plus optimized feed path ensure ultra-smooth output, while the optional cutter module delivers clean full or partial cuts on demand. Rated for MTBF ≥ 25 000 hrs, it’s built for nonstop commercial use.

Key Features

• 58 mm print width on 12.7 mm core

• 180 mm/s maximum print speed

• 203 dpi high-resolution thermal head

• Auto-cutter ready (full/partial cut)

• RS232 & USB 2.0 interfaces

• Jam-resistant paper path design

• Rugged metal chassis

• MTBF ≥ 25 000 hrs reliability

Specifications

Supported OS / Applications / Industries

• OS: Windows, Linux, Android via SDK

• Apps: POS firmware, kiosk controllers, ticket printers

• Industries: Retail, Hospitality, Transportation, Vending, IoT

Benefits & Compatibility

• Plug-and-play integration via RS232 or USB

• Low maintenance: no ribbons, jam-resistant path

• High uptime: industrial-grade MTBF

• Compact footprint fits tight enclosures

• Clean cuts for pro-grade receipts & tags

Purpose of Use

Ideal for embedding in POS terminals, ATMs, self-service kiosks, handheld scanners, and any embedded device needing speedy 58 mm thermal printing.

How to Use

1. Mount ATP210 in your device chassis

2. Connect RS232 or USB cable to host board

3. Load a 58 mm roll on the 12.7 mm core

4. (Optional) Attach the cutter module

5. Supply 5 V DC and configure via SDK

6. Run a test print; replace cutter blade per schedule

Packaging / Weight / Dimension

• Includes: ATP210 mechanism, interface cables, mounting screws, user manual

• Module size: 100 × 80 × 60 mm

• Module weight: 450 g

• Package weight: ~600 g

Warranty & FAQs

• Warranty: 12 month limited

• FAQs

  • Q: What core size fits?
    A: Standard 12.7 mm core rolls.

  • Q: How to enable cutter?
    A: Attach optional cutter kit & enable via SDK.

  • Q: Can it print barcodes?
    A: Yes—supports 1D/2D barcodes at 203 dpi.

Performance, Quality, Durability & Reliability

Equipped with a high-torque stepper motor and jam-resistant feed, the ATP210 delivers consistent print density, smooth operation, and long-life reliability under heavy use.

Best Price Guarantee

Spotted a lower price on an equivalent mechanism? NEOTECH will match it—no drama. Shop with confidence.

Shop Today & Receive Your Delivery Across the UAE!

Order ATP210 now for express shipping to Dubai, Abu Dhabi, Sharjah, and beyond. Keep your devices printing without pause.

Request for Customer Reviews & Testimonials

Installed your ATP210? Drop a quick review and let others know how it powers their setups.

After-Sales Support

Need integration tips or troubleshooting? Our UAE support team is one call or email away. If remote help doesn’t cut it, we’ll guide you through a smooth RMA.

Get in Touch

For bulk quotes, custom firmware, or SDK access, contact NEOTECH’s engineering crew. We’ve got samples, demos, and pro support ready.

Stock Availability

Confirm real-time stock with our sales team before ordering—lead times may vary for cutter-enabled units.

Disclaimer

Specs, pricing, and availability are subject to change without notice. Images are illustrative; actual mechanism may vary. Verify all details before purchase.
