JRP-2RCN 2″ Thermal Printer | NEOTECH
Meta Description
2″ thermal printer mech: 90 mm/s, 384-dot density, thermistor head-temp sensor & paper-end detector. Slim, no-cutter design.
Overview

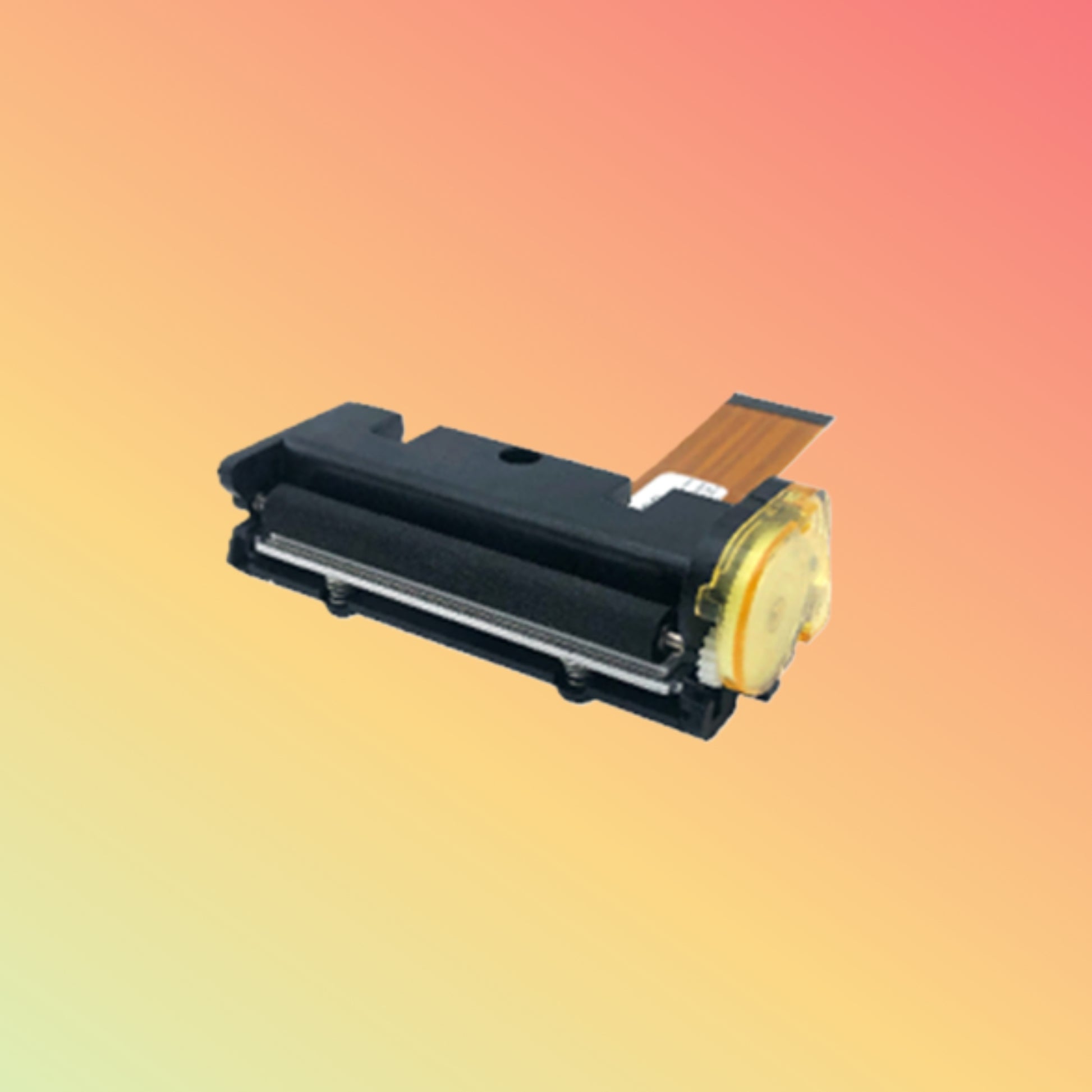

The JRP-2RCN is a sleek, cutter-free 2″ (58 mm) thermal printer mechanism built for speed and reliability. It spits out receipts and tickets at up to 90 mm/s with crisp 384-dot detail, while onboard sensors monitor head temperature and paper-end so you never miss a print. Its ultra-slim, side-load frame fits tight counters and kiosks.
Product Description
Level up your POS or kiosk with the JRP-2RCN:
-
High-Speed Printing: Up to 90 mm/s for instant output
-
Fine Detail: 384 dots per line (8 dots/mm) for sharp text & graphics
-
Thermistor Head Sensor: Auto-adjusts for consistent quality
-
Paper-End Optical Sensor: Pauses printing when roll runs out
-
Slim, No-Cutter Design: Fewer moving parts, easier maintenance
-
Side-Load Media: Drop in 58 mm rolls in seconds
Plug into any ESC/POS-compatible controller and start printing—no cap.
Key Features
-
Print Width: 58 mm (2″)
-
Dot Density: 8 dots/mm (384 dots/line)
-
Max Speed: 90 mm/s
-
Head Sensor: Thermistor temperature detection
-
Paper Sensor: Reflective optical paper-end detection
-
Media Loading: Horizontal side-drop
-
No Built-in Cutter (manual tear)
-
Profile: Slim for space-saving installs
Specifications
| Specification |
Detail |
| Printing Method |
Thermal line printing |
| Effective Print Width |
48 mm |
| Dot Density |
8 dots/mm |
| Dots per Line |
384 dots |
| Max Print Speed |
90 mm/s |
| Head-Temp Sensor |
Thermistor |
| Paper-End Sensor |
Reflective optical |
| Power |
DC 8.5 V |
| Operating Temp |
+5 °C to +45 °C |
| Operating Humidity |
20 %–85 % RH |
| Dimensions (L×W×H) |
75 × 34 × 20 mm |
| Weight |
60 g |
Supported OS / Applications / Industries
-
OS Compat: Windows, Linux, Android, embedded RTOS
-
Apps: POS terminals, self-service kiosks, ticket printers
-
Industries: Retail, hospitality, logistics, events
Benefits & Compatibility
-
Plug-and-Play: Standard ESC/POS commands
-
Zero Jam Alerts: Paper-end sensor prevents wasted prints
-
Low Maintenance: No cutter, fewer wear-out parts
-
Space-Saving: Slim side-load frame
-
Energy-Efficient: Ideal for low-voltage or mobile setups
Purpose of Use
Perfect for fast-paced retail checkouts, ticketing stations, and portable kiosks where clarity, speed, and minimal downtime matter most.
How to Use
-
Securely mount the JRP-2RCN in its bracket.
-
Drop in a 58 mm thermal roll via the side-load slot.
-
Connect DC 8.5 V power and data interface.
-
Run a test print to verify alignment and sensor function.
-
Send ESC/POS print jobs from your POS or kiosk software.
Packaging / Weight / Dimensions
-
Packaging: Anti-static bag with foam padding
-
Unit Weight: 60 g
-
Package Size: 105 × 65 × 35 mm
-
Includes: Mount screws, wiring harness, quick-start guide
Warranty and FAQs
Warranty: One-year limited coverage against defects.
FAQs
Performance, Quality, Durability & Reliability
Rated for 50 km of cumulative print length; built with a precision thermal head and rugged frame for nonstop performance in high-volume settings.
Best Price Guarantee
Found a lower quote on a similar 2″ printer mech? We’ll match it—no cap. Shop with confidence at NEOTECH.
Shop Today & Receive Your Delivery Across the UAE!
Order now for fast, tracked delivery across Dubai, Abu Dhabi, Sharjah, and beyond. We handle packing, shipping, and tracking—hassle-free.
Request for Customer Reviews and Testimonials
Tried the JRP-2RCN? Drop a review and share the vibes. Your feedback helps everyone choose right.
After Sales Support
Our support squad is here 24/7 for firmware tweaks, troubleshooting, and tech advice. Hit us up via chat or email anytime.
Get in Touch
For bulk quotes, custom integrations, or tech questions, email sales@neotech.ae or call +971 4 123 4567. We reply within one business hour.
Stock Availability
Stock moves fast—confirm availability before ordering. For urgent restock, ask about our express service.
Disclaimer
All specs, images, and pricing are for reference and may change without notice. Confirm details with NEOTECH before purchase. Images are illustrative only.
