Fanless embedded IPC with Intel i3–i7 CPUs, 4–16 GB DDR4, 128 GB SSD, 15.6″/17.3″/21.5″ touch displays and quad-LAN. Rugged IP54 design for Windows/Linux IoT.
Overview
This all-in-one Fanless IPC Box delivers IoT-ready compute in a sealed, low-profile chassis. Choose 15.6″, 17.3″ or 21.5″ capacitive touch displays paired with Intel® Core™ i3, i5 or 10th-Gen i7 processors. With up to 16 GB DDR4 and a 128 GB SSD, plus four Gigabit LAN ports, it excels in edge analytics, machine vision, and industrial control—no fan, no hassle.
Product Description

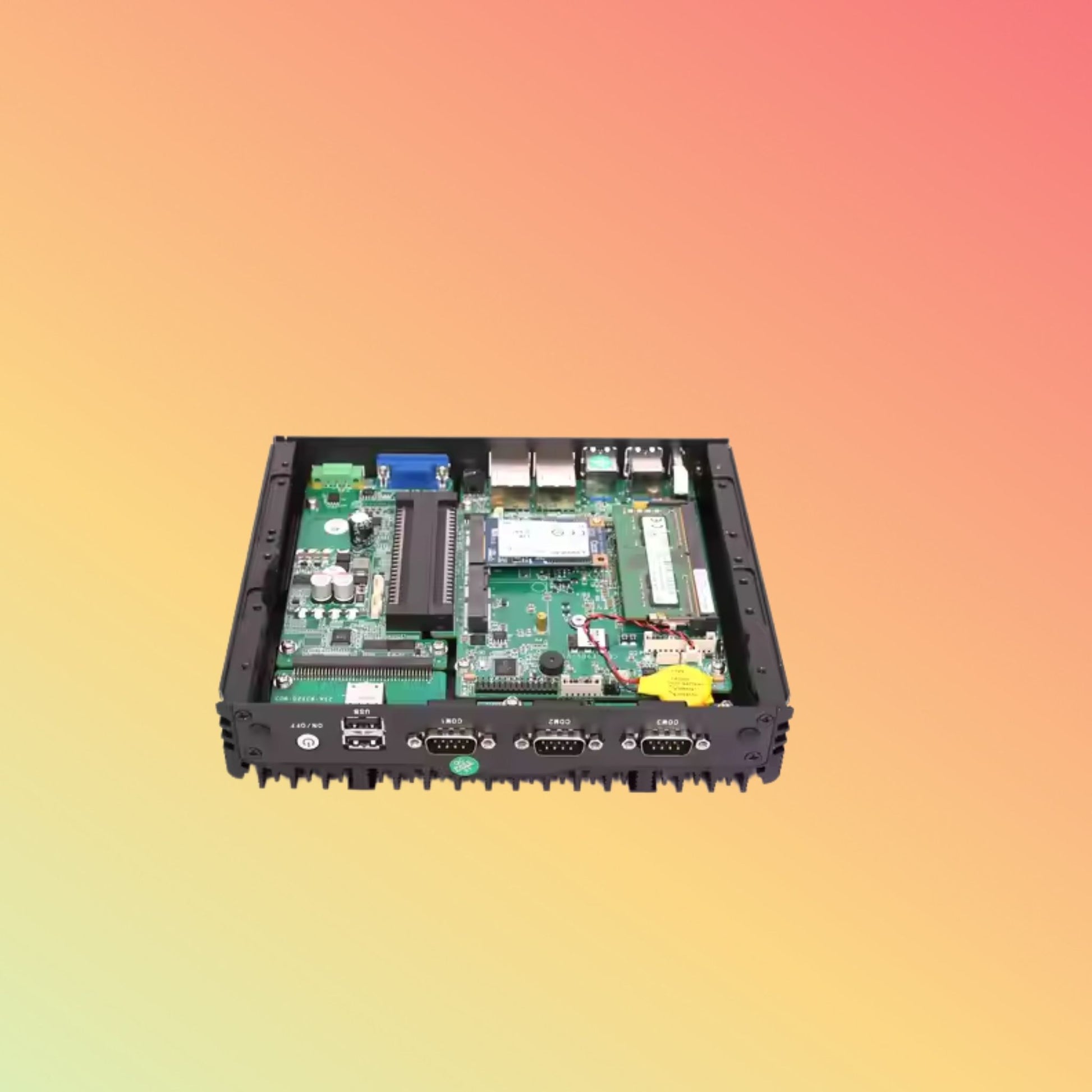

Housed in rugged aluminum, the IPC Box runs silently via passive cooling. It supports Windows 7/10/11 IoT and major Linux distros out of the box. Rich I/O includes 4× RJ45 LAN, 4× USB 3.0, RS-232/485, HDMI and audio. DDR4 memory (4–16 GB) and a 128 GB NVMe SSD ensure fast boot and smooth multitasking. VESA and panel-mount kits simplify installation in cabinets, kiosks, or on factory walls.
Key Features
-
Fanless Cooling: Silent, zero-maintenance design
-
Intel Core CPUs: i3-8145U, i5-8365U or i7-10510U options
-
Selectable Displays: 15.6″, 17.3″ or 21.5″ 1920×1080 capacitive touch
-
Memory & Storage: 4–16 GB DDR4; 128 GB NVMe SSD
-
Quad LAN: 4× Gigabit Ethernet for segmentation and redundancy
-
Comprehensive I/O: 4× USB 3.0, 2× RS-232/485, HDMI, audio in/out
-
Mounting Flexibility: VESA 75/100 mm and panel-cut ready
Specifications
| Attribute |
Details |
| Display |
15.6″ / 17.3″ / 21.5″ IPS, 1920×1080 |
| Touch |
Projected-capacitive, 10-point multi-touch |
| CPU Options |
Intel i3-8145U / i5-8365U / i7-10510U |
| Memory |
4 GB – 16 GB DDR4 SO-DIMM |
| Storage |
128 GB NVMe SSD |
| Ethernet |
4× RJ45 Gigabit (Intel i210) |
| USB |
4× USB 3.0 Type-A |
| Serial |
2× RS-232/485 |
| Video |
1× HDMI 1.4 (1080p) |
| Audio |
Mic-in, Speaker-out |
| Power Input |
12 – 24 V DC via screw terminals |
| Operating Temp & RH |
–10 °C to +60 °C, 10 – 95 % non-condensing |
| Dimensions |
390×280×45 mm (15.6″), 430×300×45 mm (17.3″), 540×330×60 mm (21.5″) |
| Mounting |
VESA 75/100 mm & panel-cut brackets |
Supported OS / Applications / Industries
-
OS: Windows 7/10/11 IoT, Ubuntu, Debian
-
Applications: Edge analytics, HMI, machine vision, kiosk systems
-
Industries: Manufacturing, logistics, retail kiosks, smart buildings
Benefits & Compatibility
-
Zero-Noise Operation: Passive cooling eliminates fan failures
-
High Throughput: Core™ CPUs and DDR4 handle real-time tasks
-
Network Flexibility: Four NICs for VLAN or backup links
-
Easy Integration: Standard mounts and rich I/O for rapid deployment
Purpose of Use
Ideal as an embedded controller for conveyor systems, an analytics node for vision inspection, or an interactive kiosk in retail. Its sealed design withstands dust, humidity, and continuous operation.
How to Use
-
Panel Cut: Follow the supplied template for bezel cutout
-
Mount: Secure with panel-mount brackets or VESA arms
-
Wire: Connect 12–24 V DC, Ethernet, USB, and serial cables
-
Deploy OS: Image Windows or Linux via USB/PXE
-
Calibrate Touch: Use onboard utility for precise input
Packaging / Weight / Dimensions
-
Packaging: Foam-lined, moisture-resistant carton
-
Weight: ~3.5 kg (15.6″), ~4.2 kg (17.3″), ~6.5 kg (21.5″)
-
Dimensions: See “Specifications”
Warranty and FAQs
Warranty: 12 months on parts and labor
FAQs:
-
Can I upgrade storage?
Yes, an M.2 slot supports up to 1 TB NVMe SSD.
-
Is it suitable for outdoor use?
IP54 front and conformal-coated board allow splash protection.
Performance, Quality, Durability & Reliability
Tested to IEC 60068 for shock, vibration, and thermal cycling. Conformal coating and passive heatsink extend service life in harsh conditions.
