58 mm thermal printer mech with manual cutter, network interface, side-load design. 80 mm/s speed, ideal for POS & kiosks.
Overview

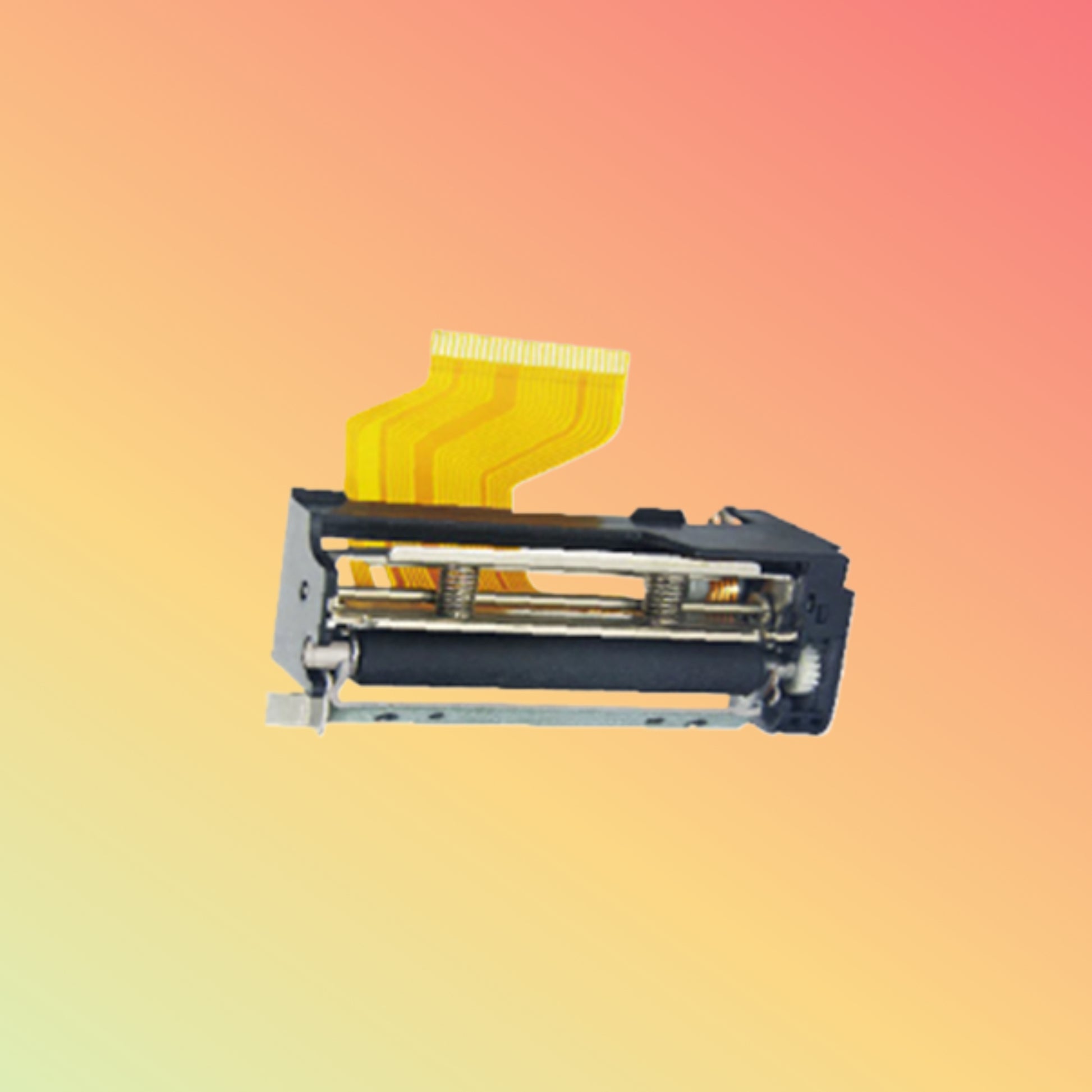

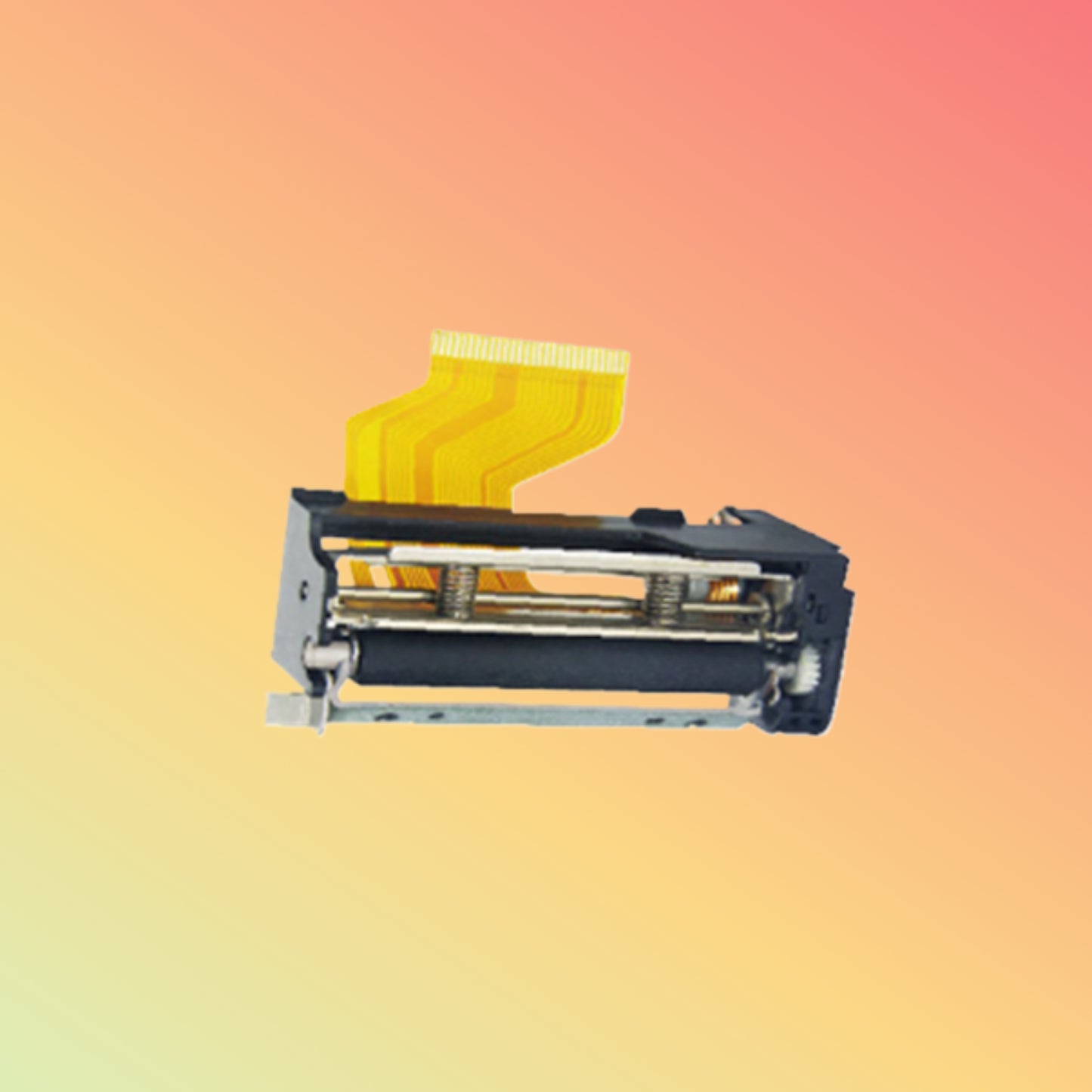

The JRP-2RE is your go-to network-ready 58 mm thermal printer mechanism. It hits 80 mm/s while staying whisper-quiet. Its side-load paper and manual guillotine cutter cut downtime. Plug it into any LAN for remote printing—no cap.
Product Description
The JRP-2RE Thermal Printer Mechanism packs power and connectivity:
-
Fast Output: 80 mm/s print speed keeps queues moving
-
Ethernet Interface: 10/100 Mbps RJ45 port for remote print jobs
-
Side-Load Roll: Swap paper in seconds—zero hassle
-
Manual Guillotine Cutter: Precise, clean tears every time
-
Quiet Operation: < 60 dB for a chill environment
-
Compact Frame: 75 × 34 × 25 mm fits tight spots
Ideal for retail, hospitality, ticketing and any LAN-based POS setup. Integrate via standard ESC/POS over TCP/IP.
Key Features
-
Print Width: 58 mm
-
Print Speed: Up to 80 mm/s
-
Resolution: 8 dots/mm
-
Interface: 10/100 Mbps Ethernet
-
Paper Loading: Side-drop
-
Cutter: Manual guillotine
-
Noise Level: < 60 dB
-
Dimensions: 75 × 34 × 25 mm
-
Weight: 65 g
Specifications
| Specification |
Details |
| Model |
JRP-2RE |
| Printing Method |
Thermal line printing |
| Print Width |
58 mm |
| Resolution |
8 dots/mm |
| Max Print Speed |
80 mm/s |
| Cutter Type |
Manual guillotine |
| Interface |
Ethernet (10/100 Mbps) |
| Protocols |
TCP/IP, LPR, Raw |
| Power Supply |
DC 24 V |
| Operating Temp |
+5 °C to +45 °C |
| Humidity |
20 %–85 % RH |
| Size (L×W×H) |
75 × 34 × 25 mm |
| Weight |
65 g |
Supported OS / Applications / Industries
-
OS: Windows, Linux, Android, embedded RTOS
-
Apps: LAN-based POS, kiosks, ticket printers
-
Industries: Retail, hospitality, transportation, events
Benefits & Compatibility
-
Remote Printing: Send jobs over network without direct USB/serial
-
Space-Saver: Slim design frees up counter real estate
-
Energy-Smart: Low power draw for efficient operation
-
Easy Integration: Standard ESC/POS over TCP/IP
-
Versatile Fit: Works with popular controllers and software
Purpose of Use
Perfect for setups requiring centralized print management—think multi-counters, back-office ticket printing, or kiosk farms where network control is a must.
How to Use
-
Mount in your bracket and side-load a 58 mm roll
-
Connect DC 24 V power and Ethernet cable
-
Assign IP via DHCP or static settings
-
Run a test print using ESC/POS over TCP/IP
-
Send print jobs from your POS or server
Packaging / Weight / Dimension
-
Packaging: Anti-static bag with foam padding
-
Unit Weight: 65 g
-
Package Size: 110 × 70 × 40 mm
-
Includes: Mount screws, wiring harness, quick-start guide
Warranty and FAQs
Warranty: 12-month limited warranty against defects.
FAQs
Q: How do I assign a static IP?
A: Use the web-config tool via Ethernet or DHCP-provided interface.
Q: Can I still print if the network drops?
A: Yes, local buffer holds up to 1 MB of data.
Performance, Quality, Durability & Reliability
Engineered for 100 km of print length and 100 000 cutter cycles. Its industrial-grade thermal head and robust cutter handle high-volume demands without lag.
